SHB 28Z3 EN – Edition 2.0 * 28z3s612.fm 6-23
Electrical system

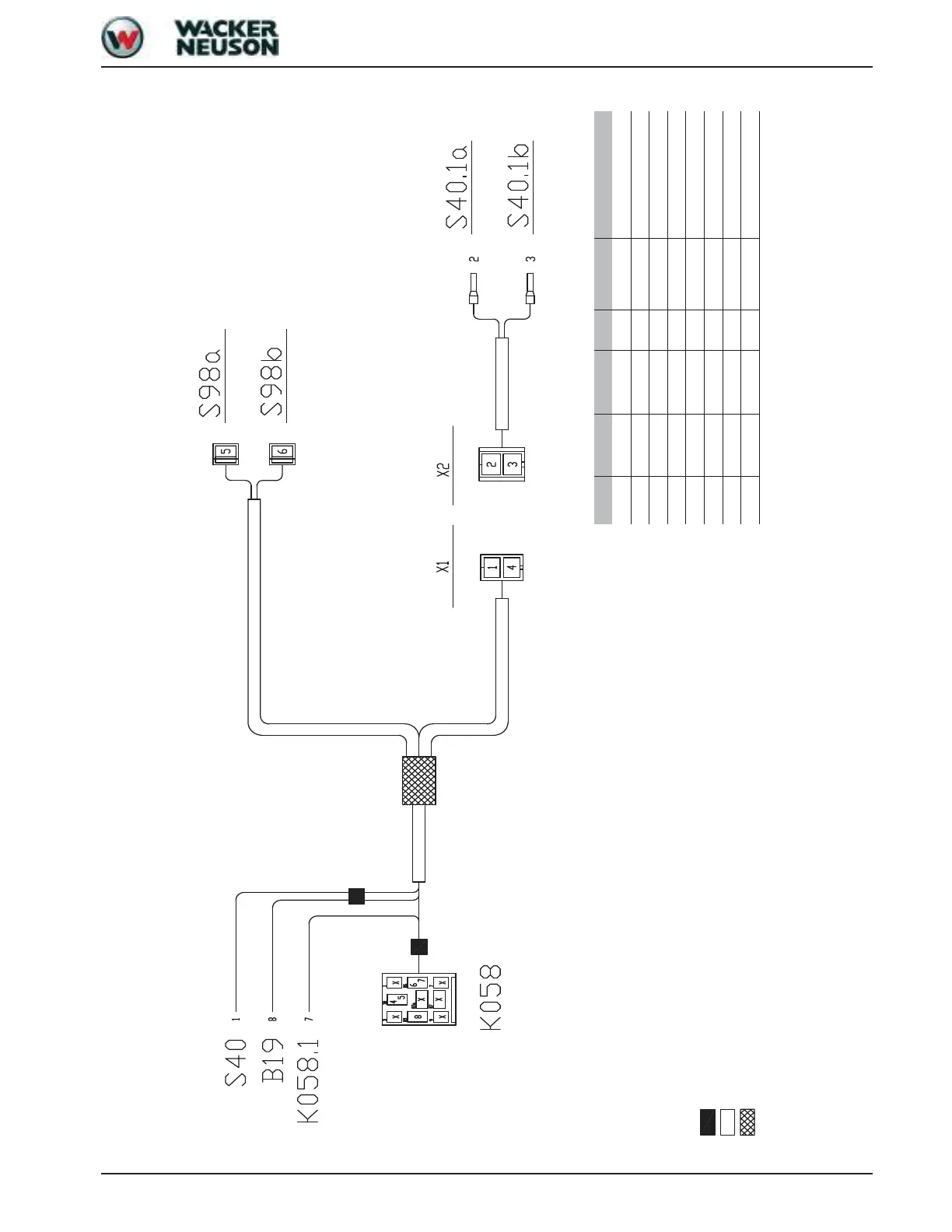

6.25 Hydraulic quickhitch wiring harness (option)
Strand From Up to mm² Colour Function
1 S40a X1/1 1 red +12 V
2 X2/1 S40.1a 1 red Foot-operated tip switch
3 S40.1b X2/2 1 brn Foot-operated tip switch
4 X1/2 K058/30 1 brn Foot-operated tip switch
5 K058/30 S98a 1 grn Pressure switch
6 S98b K058/86 1 blu Pressure switch
7 K058/86 K058.1 1 gry/yel Quickhitch valve
8 K058/85 B19 1 blk Earth
*) Cable-side indication of connector assigment
(unless otherwise specified)
*) Cable type FLRY-B, DIN 72551
*) Line and connector labelling with
abbreviation (e. g.: Y9)
*) Protective hoses
Temperature range -25 °C to +90 °C (-13 °F to + 194 °F)
*) Length indications include connectors, adapter sockets,...
*) If technically feasible, pull protective hoses to ends of lines
30 mm (1.18”) maximum (unless otherwise specified)
from end of connector to protective hose
*) Use cable ties every 70 mm (2.8”) for loose lines
Tie-wrap
Soft PVC DIN 40621
Shrink hose
