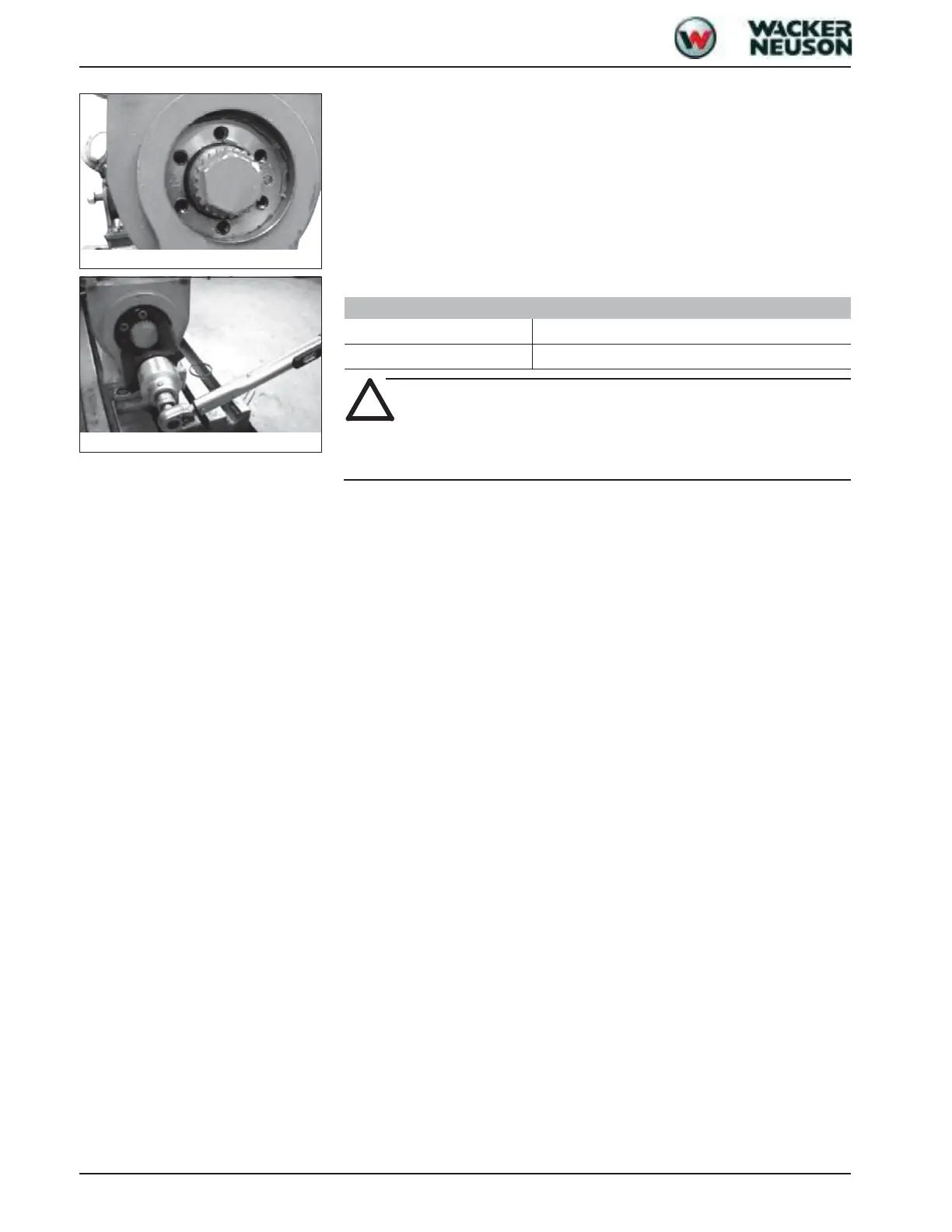

8-32
SHB 28Z3 EN – Ed
ition 2.0 * 28z3s810.fm
PowerTilt PTS06
☞
The end cap and the threaded bo
res are visible.
☞
Fit an adjusting tool and tighten the end cap with a
torque wrench.
Caution!
Fit the securing ring before operating the PowerTilt again!
☞
The shaft turns against the blind flange and the adjusted torque is modified.
Fig. 85:
Blind flange
Fig. 86:
Tightening the blind flange
Torque values of end cap
Model
Torque values Nm (lbs/ft)
PTS06
475 – 680 (350 – 502)
261
263
