Operation
Convex mirrors enlarge, reduce or distort the field of view.
☞ Bear this in mind when adjusting and using such mirrors (objects appear to
be nearer, estimating distances is possible only to a certain extent).
Set the machine to road travel position before adjusting the mirrors – see Drive
position on page 3-24.
Adjusting the mirrors
We recommend having the mirrors adjusted by a second person.
Left and right-hand outside mirrors of cab
Adjust the mirrors in order to:
• Ensure sufficient visibility from the seat onto the drive and work area.
• Ensure maximum visibility to the rear.
• Ensure visibility of the rear left edge of the machine in the left-hand mirror.

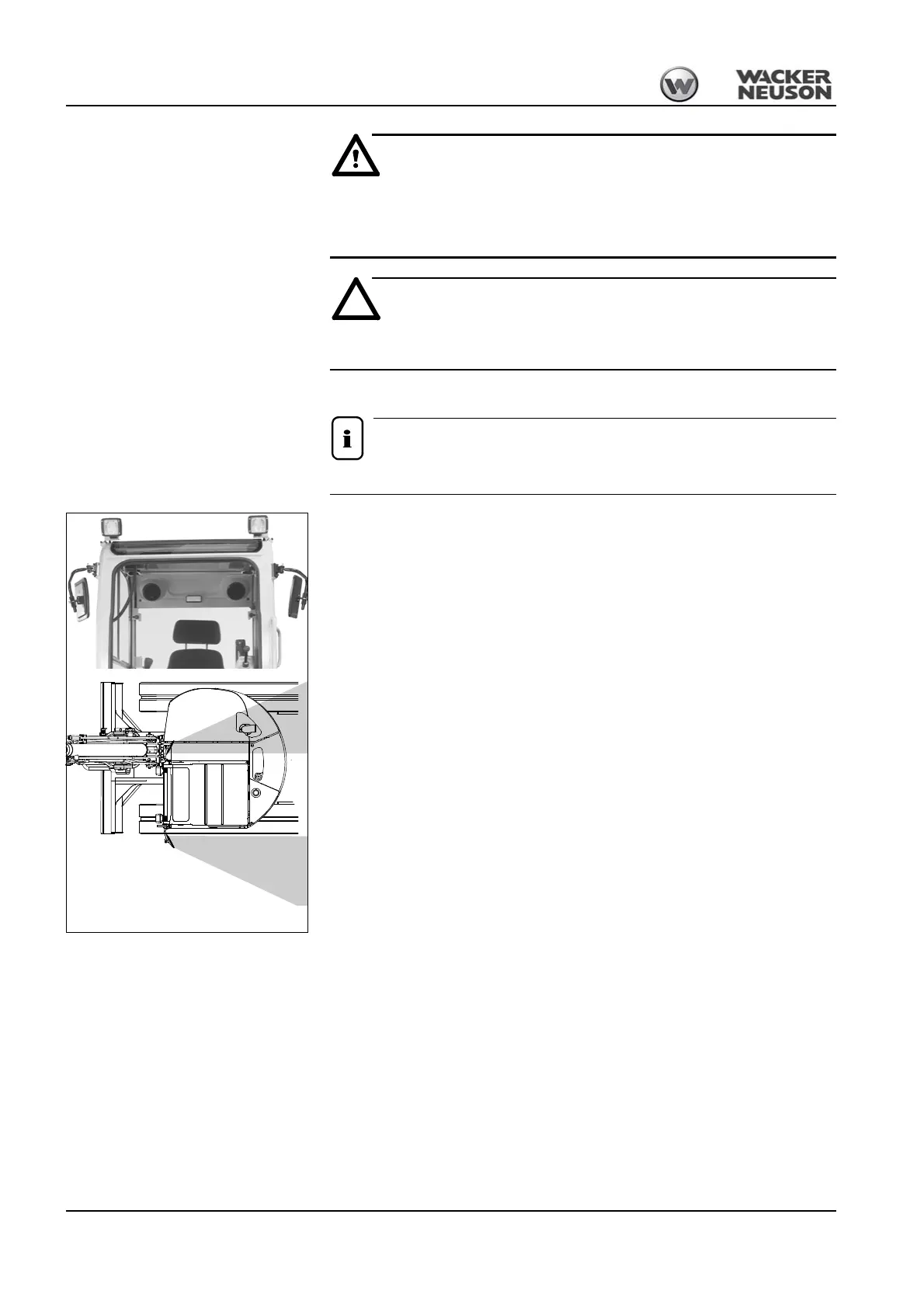

Fig. 109: Left and right-hand outside mirrors of cab
