Operation
Weight adjustment
☞ Sit down on the seat
To adjust to a higher weight:
☞ Turn lever A to the left
To adjust to a lower weight:
☞ Turn lever A to the right.
Height adjustment
Upward:
☞ Raise the seat until you hear an audible click
downward:
☞ Raise the seat as far as it will go, then
☞ Lower the seat to the lowest position
Horizontal adjustment
☞ Sit down on the seat
☞ Pull lever 9 upward and at the same time
☞ Move the seat forward or backward
Backrest adjustment
☞ Sit down on the seat.
☞ Pull lever 13 upward and at the same time
☞ Lean back to push the backrest into the required position
☞ Let lever 13 lock into place

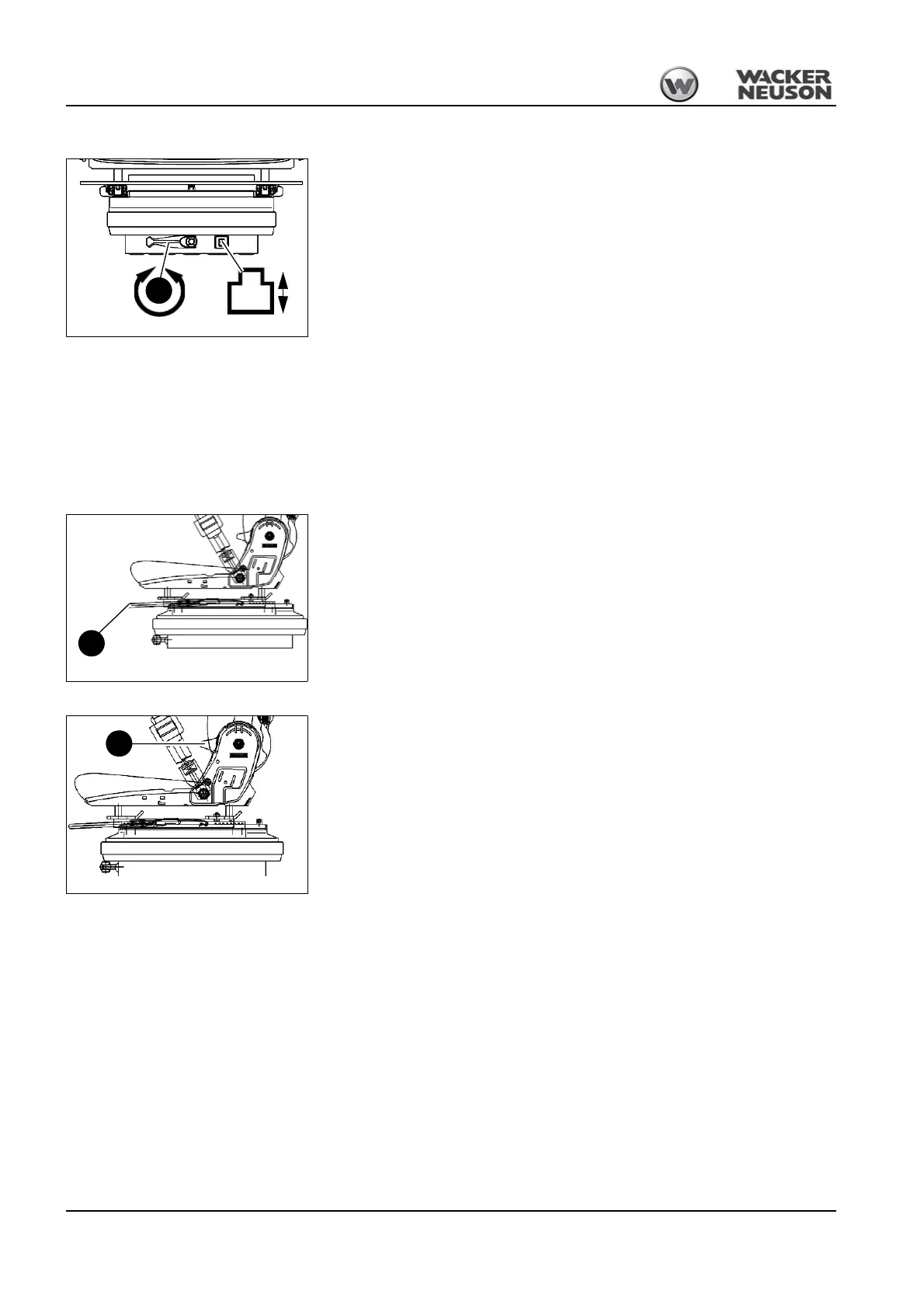

Fig. 85: Weight adjustment
70 kg
+
-
A
Fig. 86: Horizontal seat adjustment
9
Fig. 87: Backrest adjustment
13
