Operation
Opening the whole front window
☞ Press levers D on the left and right, and pull the lower front window upward with both
handles E.
☞ Make levers D lock into both recesses F.
☞ Keep levers A pressed on the left and right, and pull the entire front window upward
with both handles B.
☞ Release levers A and make them lock into place in both recesses C.

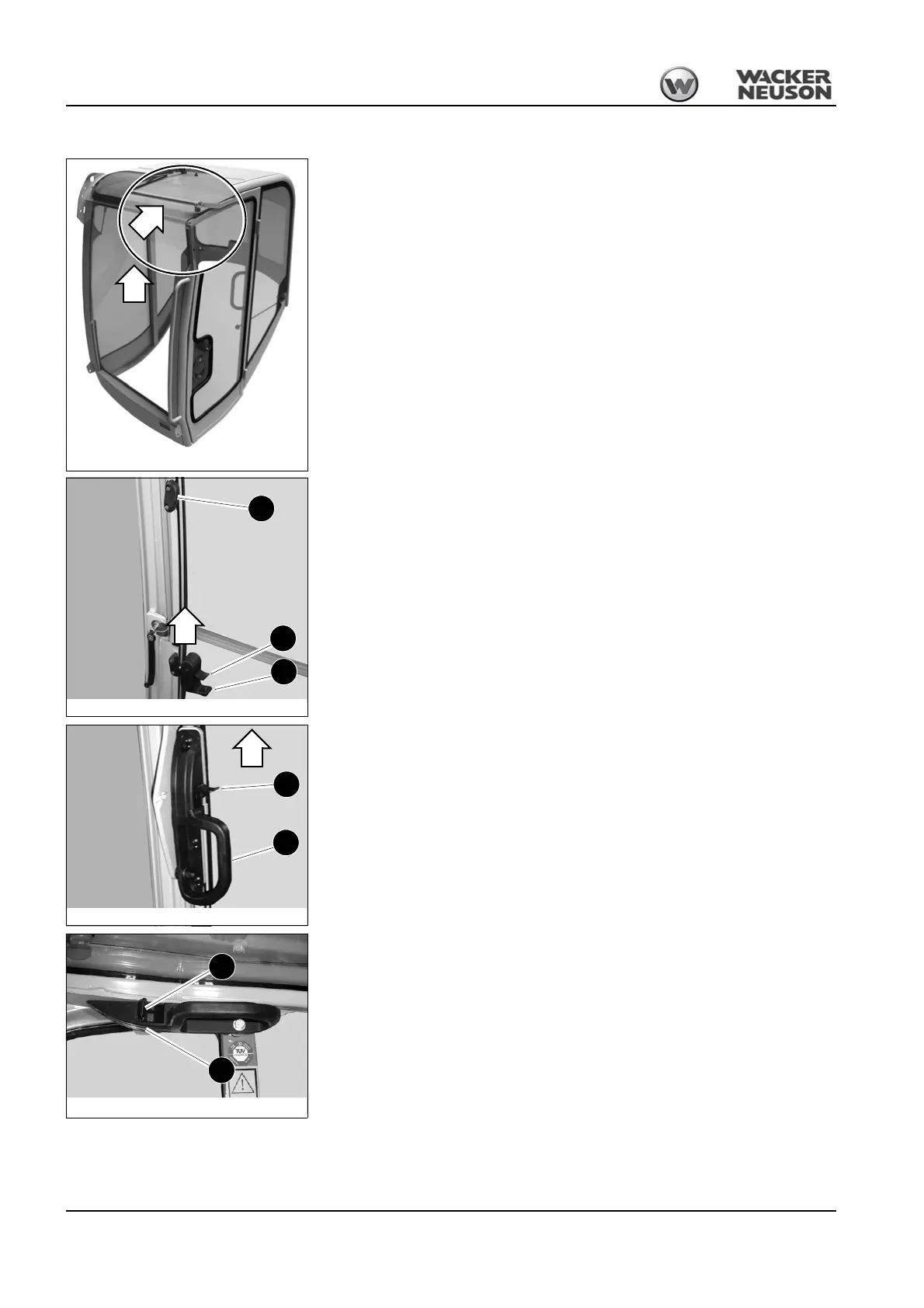

Fig. 120: Whole front window
Fig. 121: Opening the whole front window
D
F
E
Fig. 122: Opening the whole front window
A
B
C
A
Fig. 123: Opening the front window
