Maintenance
Refuelling
Filler inlet A for the fuel tank is located behind the cab, on the left in driving direction.
☞ Before refuelling, stop the engine and remove the ignition key.
☞ Unlock lock B on filler inlet A with the starter key.
☞ Use handle C to climb onto the track.
☞ Remove the filler cap.
☞ Refuel.
☞ Close and lock the filler cap.
Use a suitable container to collect the fuel as it drains and dispose of it in an
environmentally friendly manner.
Fuel-filling pump (option) (up to serial no. AD04862)
Refuel with the fuel-filling pump A as follows:
☞ Place the machine on level ground
☞ Stop the engine
☞ Open the engine cover
☞ Insert the hose of fuel-filling pump A into the container with the fuel – see Stationary
fuel pumps on page 5-4
☞ Press button B to switch on fuel-filling pump A
➥ The fuel tank is full as soon as indicator light C illuminates
☞ Press button B to switch off fuel-filling pump A
Switch off the fuel-filling pump as soon as indicator light C illuminates, otherwise
the fuel tank may overflow and can be damaged.
• Bear in mind the fuel tank’s maximum capacity

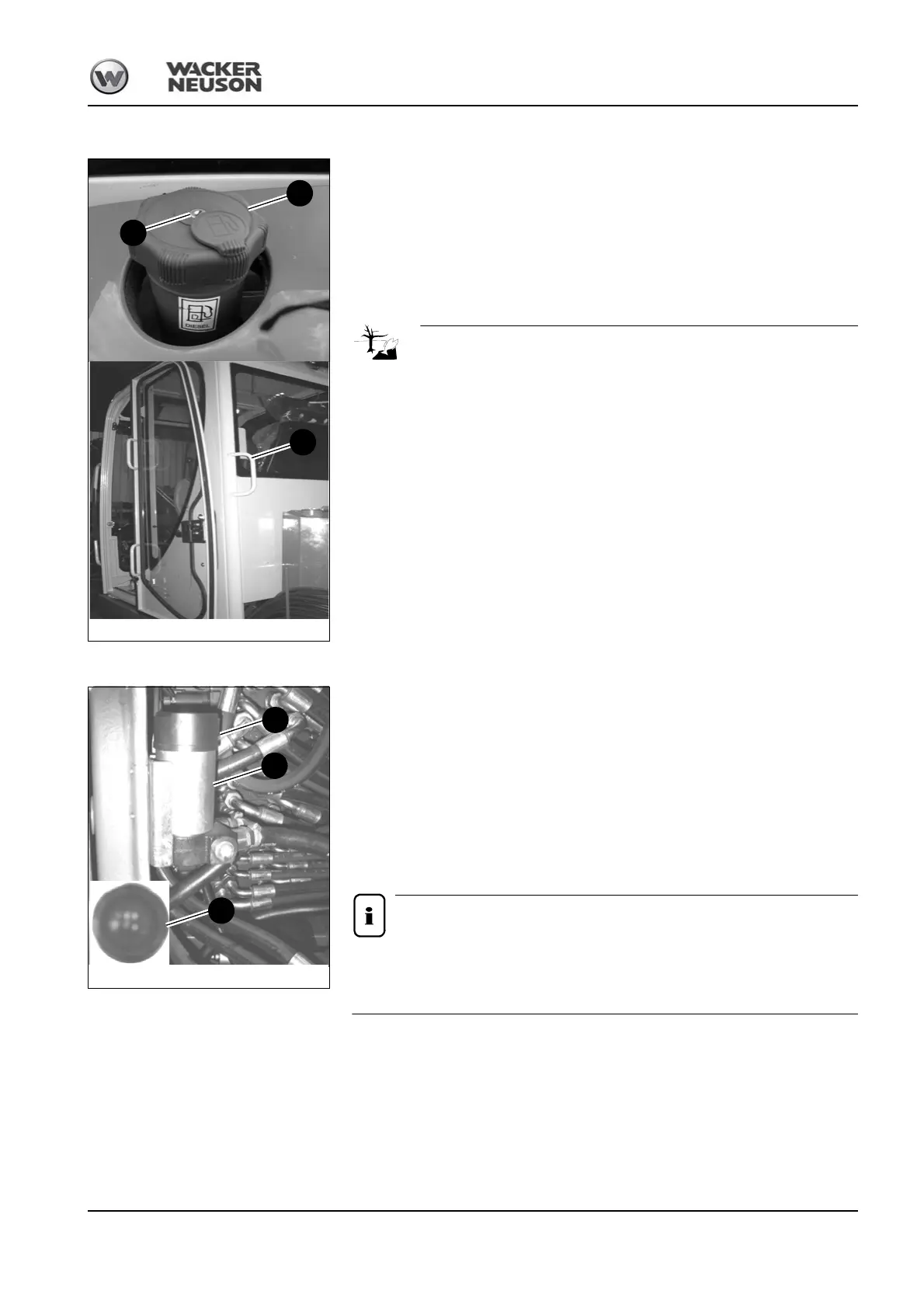

Fig. 254: Fuel filler inlet
A
B
C
Fig. 255: Fuel-filling pump
A
B
C
