3.17 Stabilizer blade operation
Danger!
The stabilizer blade lever is cannot be blocked: in case of unintentional
operation –
Risk of accidents.
☞ Do not touch the control lever for the stabilizer blade if it is not required for
working.
☞ Raise the control lever base.
☞ Ensure that no-one is in the risk zone when working with the stabilizer
blade.
☞ Once work with the stabilizer blade is over, lower it to the ground.
Caution!
Lowering the stabilizer blade too deeply into the ground can create a high
resistance.
☞ Slightly raise the stabilizer blade.
☞ The clearance between the stabilizer blade and the ground should be about
1 cm (0.39").
The stabilizer blade can also be operated with the pedal.
Notice!
Check the position of the stabilizer blade before driving the machine.

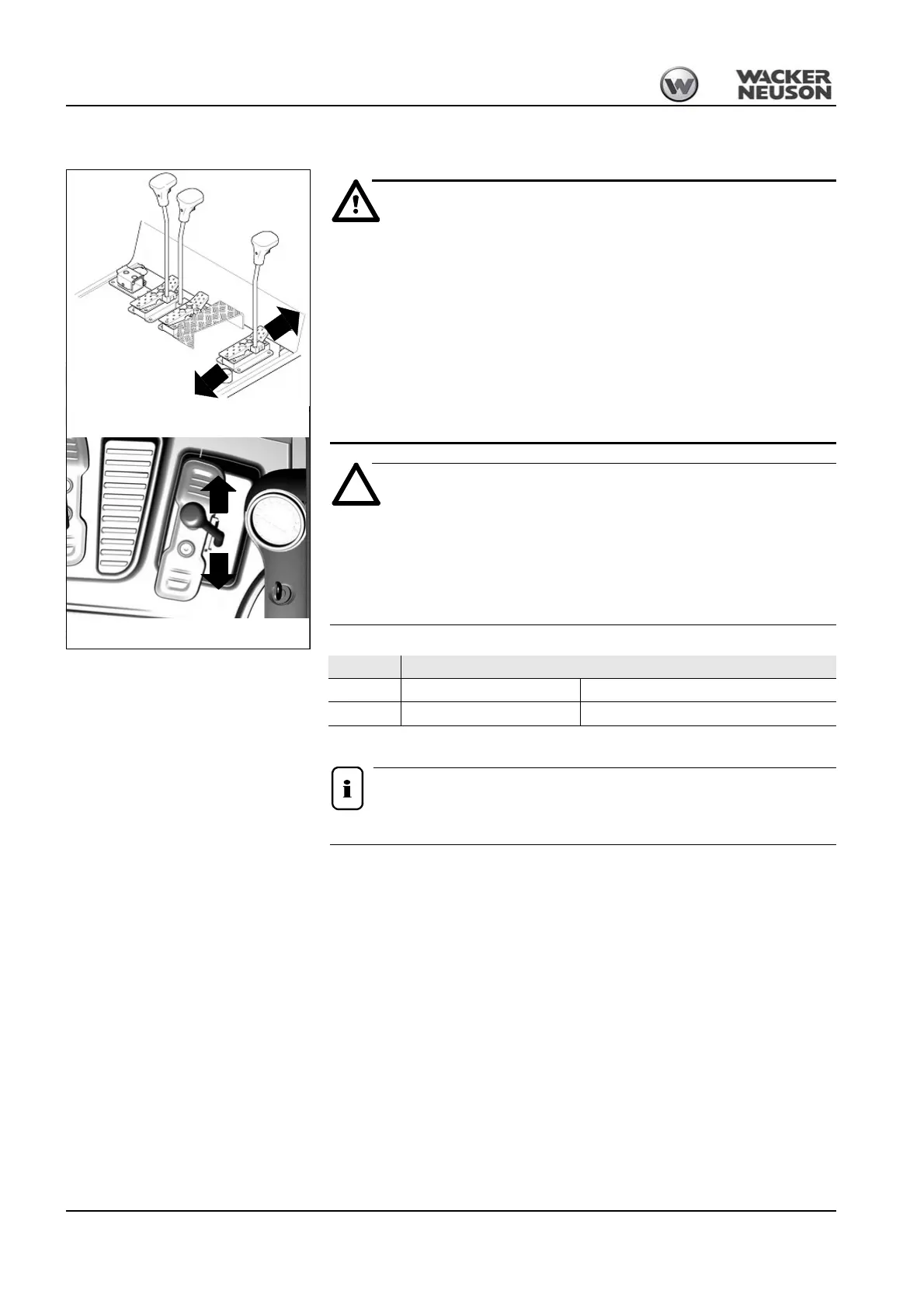

Fig. 69: Stabilizer blade operation (up to serial no.
AH02781)
2
1
Fig. 69: Stabilizer blade operation (from serial no.
AJ02777)
1
2
Position Function
1
Push forward Stabilizer blade is lowered
2
Pull backward Stabilizer blade is raised
