Lubrication points on the slewing ram and swivelling console
☞ Apply grease to lubrication points 11 on the slewing ram.
☞ Apply grease to lubrication point 11 of the offset ram.
☞ Apply grease to lubrication points 12 of the swivelling console.

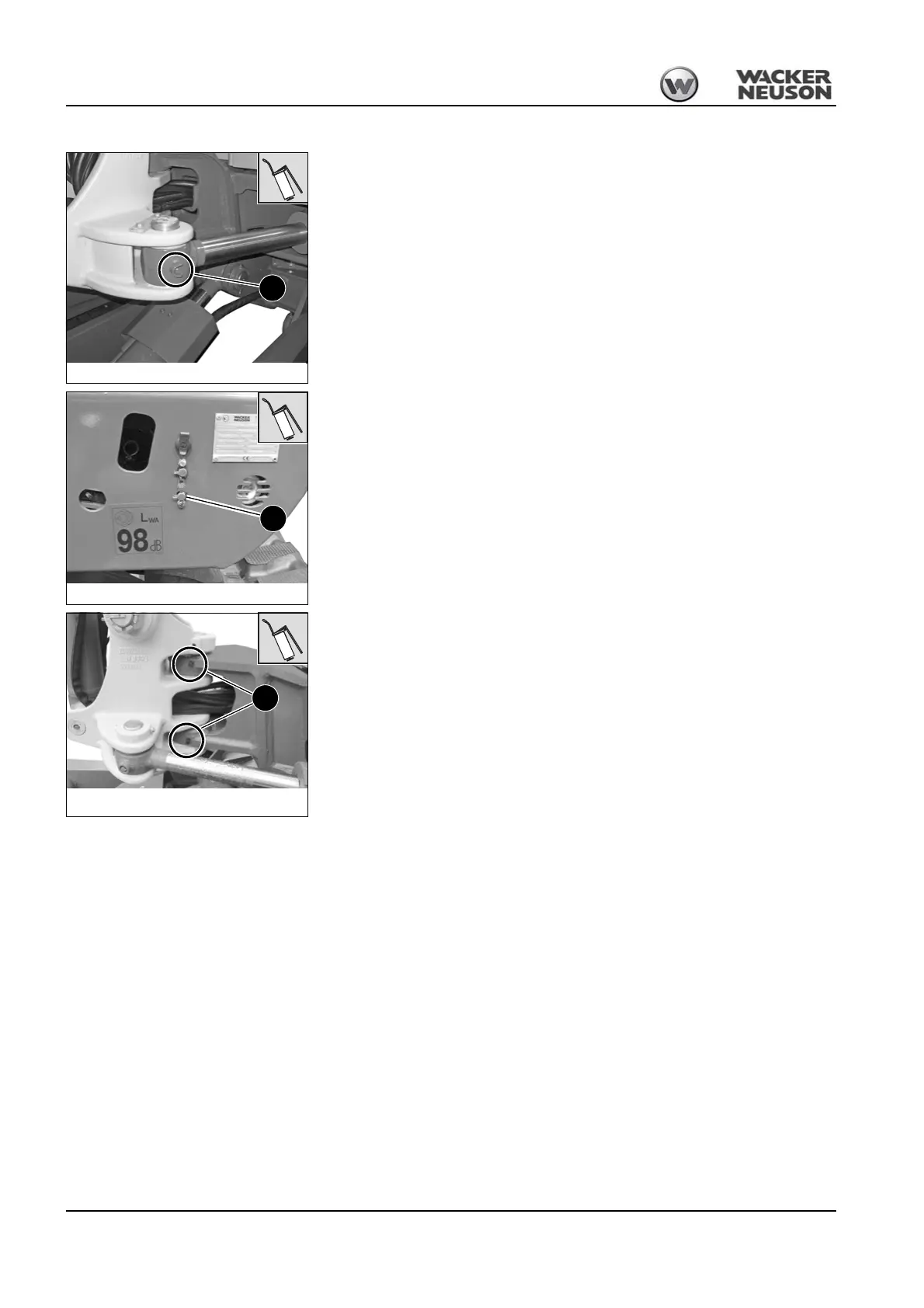

Fig. 314: Lubrication point on slewing ram
11
Fig. 315: Lubrication point on slewing ram
11
Fig. 316: Lubrication points on swivelling console
12
