Operating the boom/auxiliary hydraulics
Movement to the left
☞ Move slide switch B on the control lever to the left D.
Movement to the right
☞ Move slide switch B on the control lever to the right C.
Hammer operation
Switching on hammer operation
☞ Press and hold button C on the control lever.
Switching off hammer operation
☞ Release button C on the control lever.

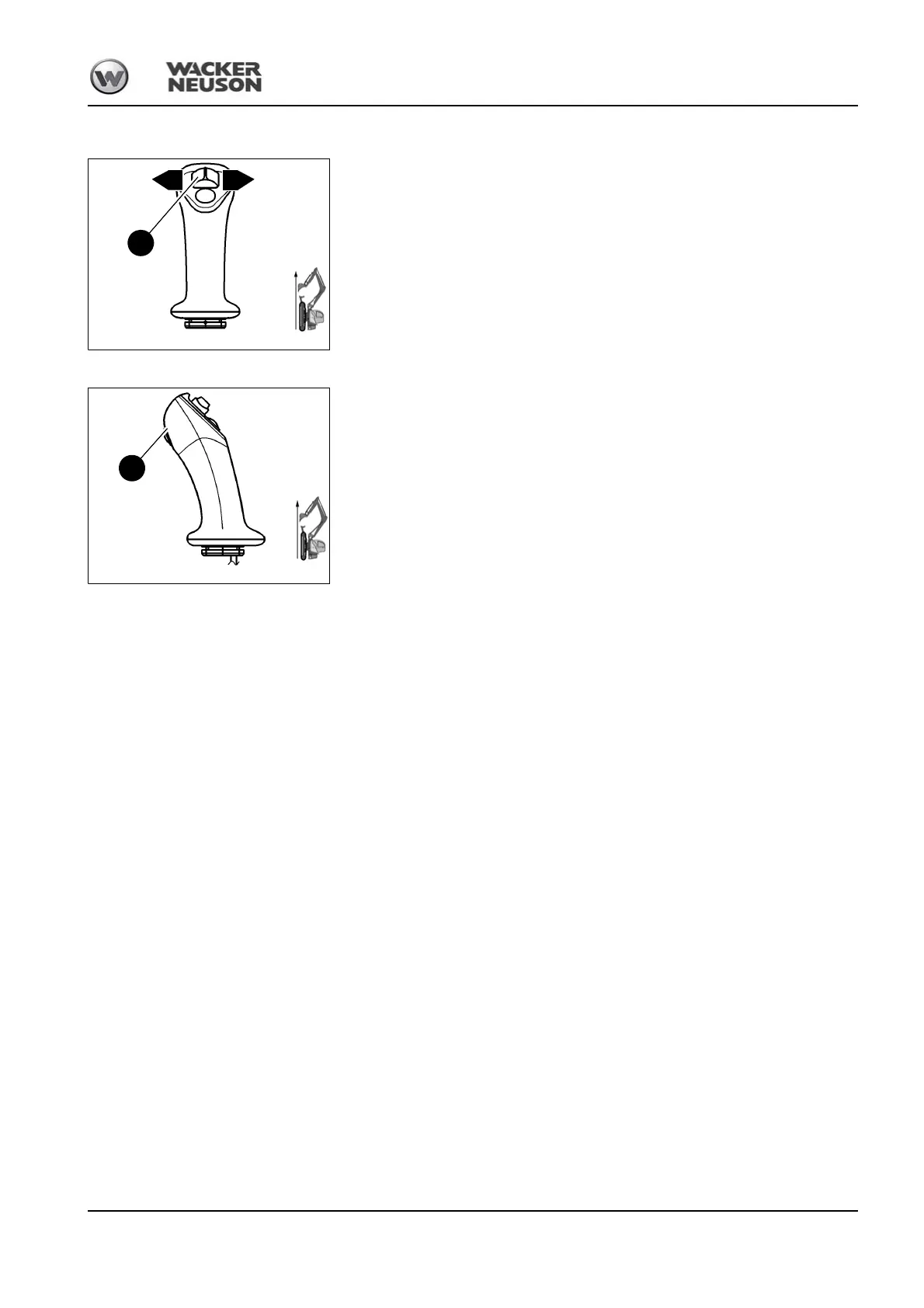

Fig. 184: Boom swivel controls
B
D
C
Fig. 185: Hammer operation
C
