Maintenance
Lubrication points of ball bearing race of live ring
Do not rotate the machine during lubrication.
Danger of severe crushing that can cause death or severe injury.
☞ – see Parking the machine on page 5-43
☞ Stop and park the machine.
☞ Apply grease to lubrication points 13 with one stroke of the grease gun.
☞ Remove ejected grease.
☞ Turn the machine 90° at a time.
☞ Stop and park the machine.
☞ Apply grease to each of lubrication points 13 with one stroke of the grease gun.
☞ Remove ejected grease.
☞ Turn the machine 360° a few times.

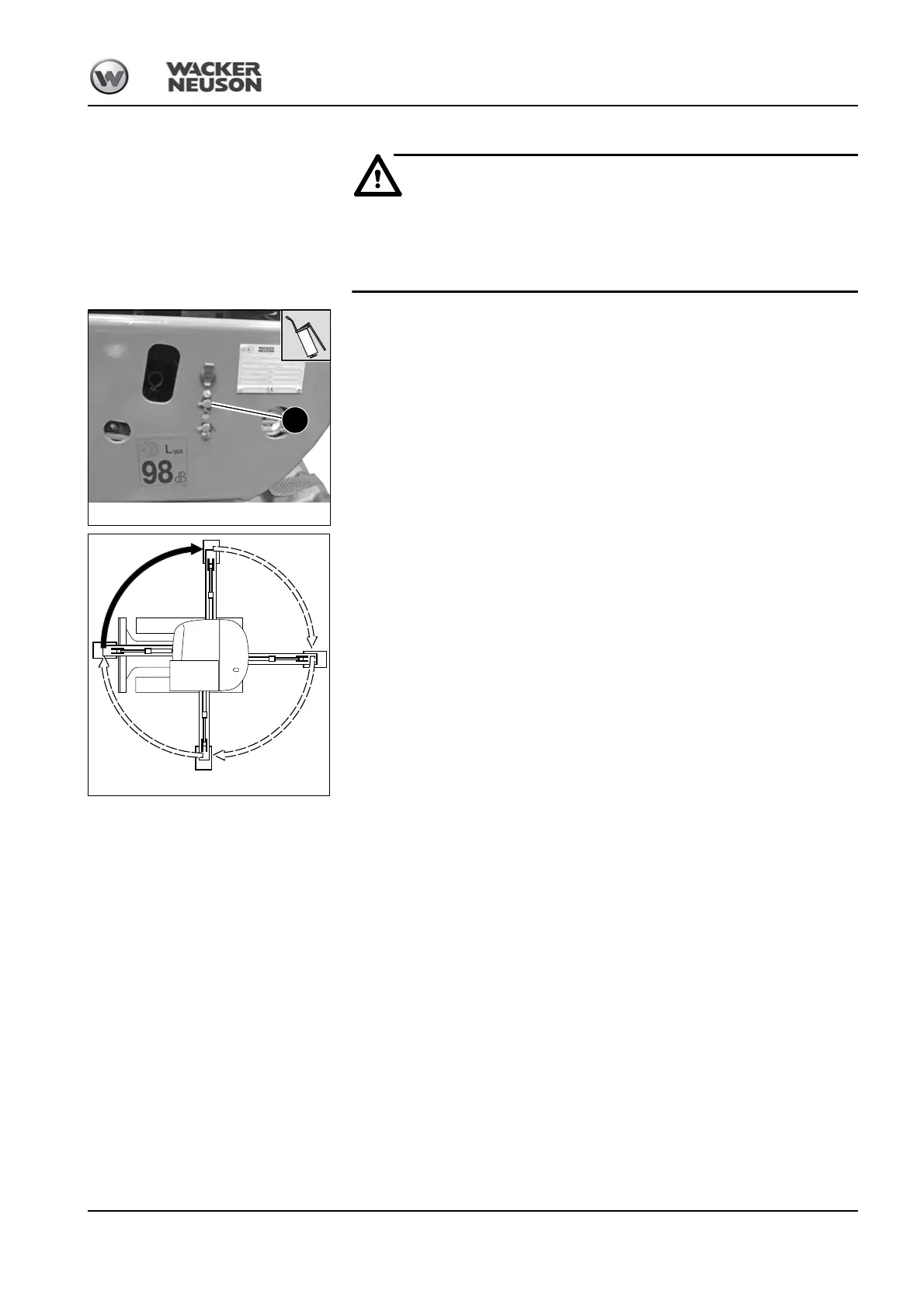

Fig. 317: Lubrication points of ball bearing race
13
Fig. 318: Turn the machine 90° at a time
