Operation
Weight adjustment
☞ Sit down on the seat.
☞ Actuate or press lever A briefly and then release it.
☞ Do not move when adjusting.
Height adjustment
☞ Sit down on the seat.
☞ Fully raise or press lever A.
☞ Move the seat to the required position.
If the upper or lower limit is reached, height is automatically adjusted to ensure minimum
spring travel.
Do not actuate more than one minute in order not to damage the compressor.
Horizontal adjustment
☞ Sit down on the seat.
☞ Pull lever B upward and at the same time.
☞ Move the seat forward or backward.
☞ The lever must engage in the required position.
Seat depth adjustment
☞ Sit down on the seat.
☞ Pull lever C upward and at the same time.
☞ Move the seat surface forward or backward.
☞ The lever must engage in the required position.

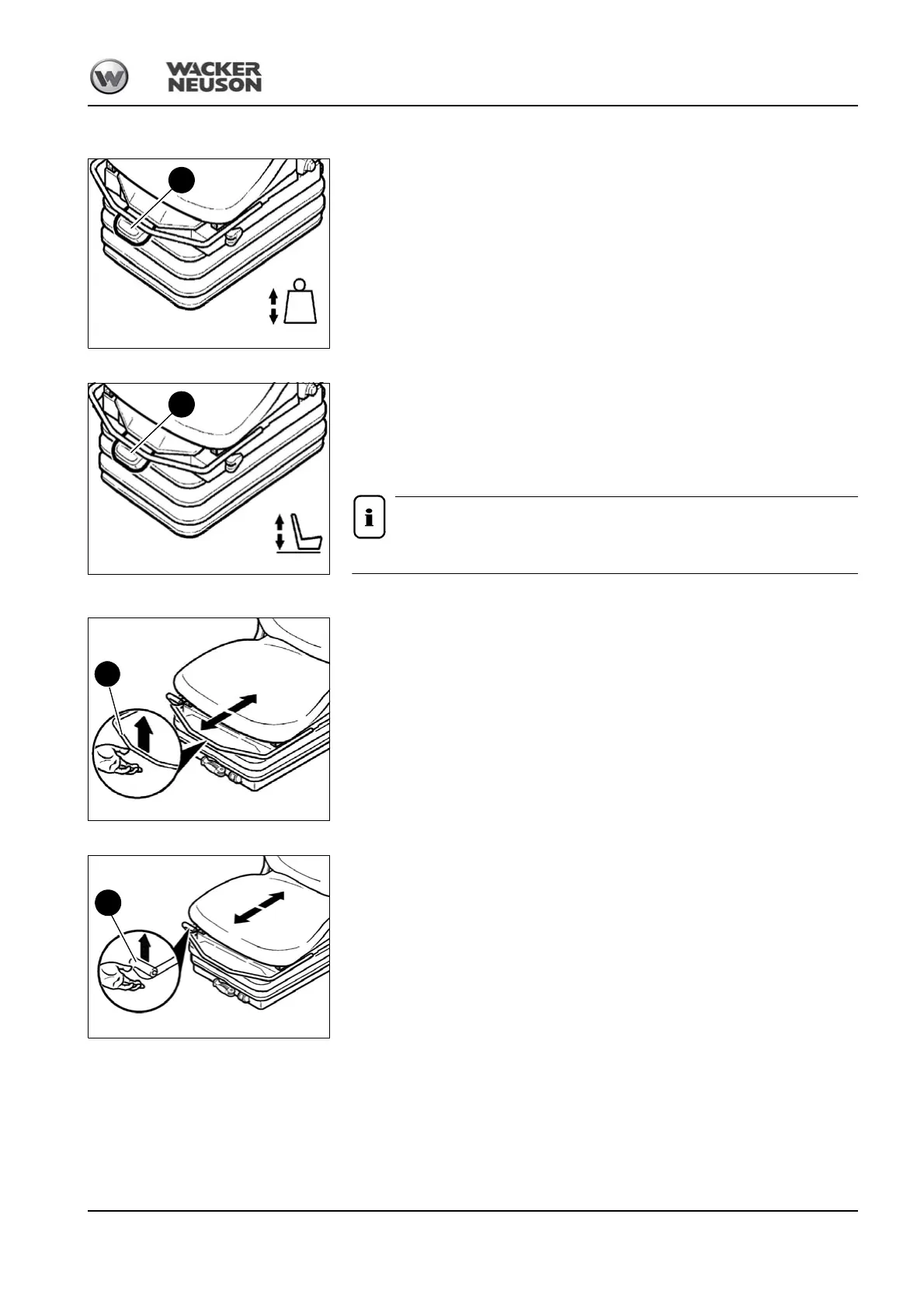

Fig. 96: Weight adjustment
A
Fig. 97: Height adjustment
A
Fig. 98: Horizontal adjustment
B
Fig. 99: Horizontal adjustment
C
