Introduction
1.12 Type labels and component numbers
Serial number
The serial number is stamped on the machine chassis. It is also located on the type label.
The type label is located at the front left on the machine chassis (at cab level)
Type label information
Example: 50Z3
Type label information (example):
Field below Wacker Neuson logo: HYDRAULIC EXCAVATOR
Fahrzeug Seriennummer/serial no./no. de série: Serial number of machine
Fahrzeug Modell/model/modèle: Machine designation
Leistung/performance: Engine output
Typ/version: Machine type
Betriebsgewicht/operating weight/poids en charge: Operating weight
Transportgewicht/transport weight/poids en transport: Transport weight
G. Gew./GWR/PTAC: Gross weight rating (admissible)
Max. Nutzlast/max. payload/max. charge utile: Maximum payload
Zul. Achslast vorne/front GAWR/PNBE AV: Front gross axle weight rating
Zul. Achslast hinten/rear GAWR/PNBE AR: Rear gross axle weight rating
EWG Nr./CEE no.: EEC check number
Baujahr/model year/année fabr.: year of construction
Other information – see chapter 6 Specifications on page 6-1
Cab number
The type label (arrow) is located in the cab, on the upper rear right chassis member.
The type label is located on the chassis of the cab, at the upper left beside the door.

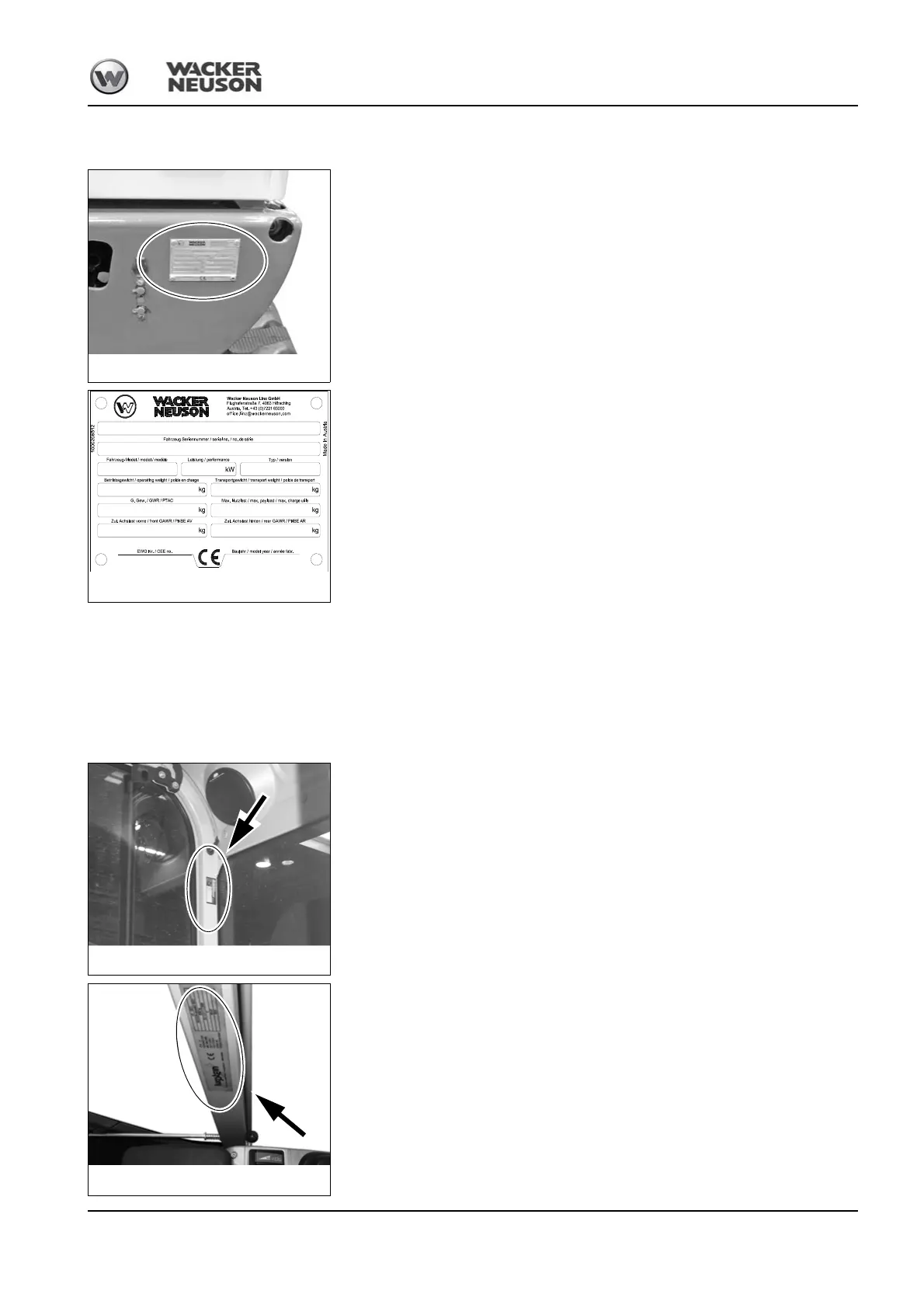

Fig. 2: Type label: location
Fig. 3: Type label (symbolic representation)
Fig. 4: Cab type label (up to serial no. AH02781)
Fig. 5: Cab type label (from serial no. AJ02777)
