BA 50Z3/6003 en – Edition 4.3 * 5003b330.fm 3-75
Operation
Protective FOPS structure/large screen – category II (option)
Danger of crushing! Falling objects.
Causes severe injury or death.
☞ Install a protective FOPS structure in areas with danger of falling objects.
☞ Machine operation is prohibited without a protective FOPS structure.
The protective FOPS structure corresponds to category II according to ISO
3449:1992.
• The operator must ensure that the danger situation is evaluated and that the
national regulations are observed.
• The operator must ensure that only work is performed that does not require any
higher protection.
• Accidents cannot be fully avoided despite equipping a machine with protective
structures.
• Have the initial assembly performed by an authorized workshop.
1 Stop and park the machine. Stop the engine.
2 A minimum 2 persons are required for installing/removing.
3 Front and rear fastening points A.
4 Tighten screws B and lock nuts on the left and right to 35 Nm (26 ft.lbs.).

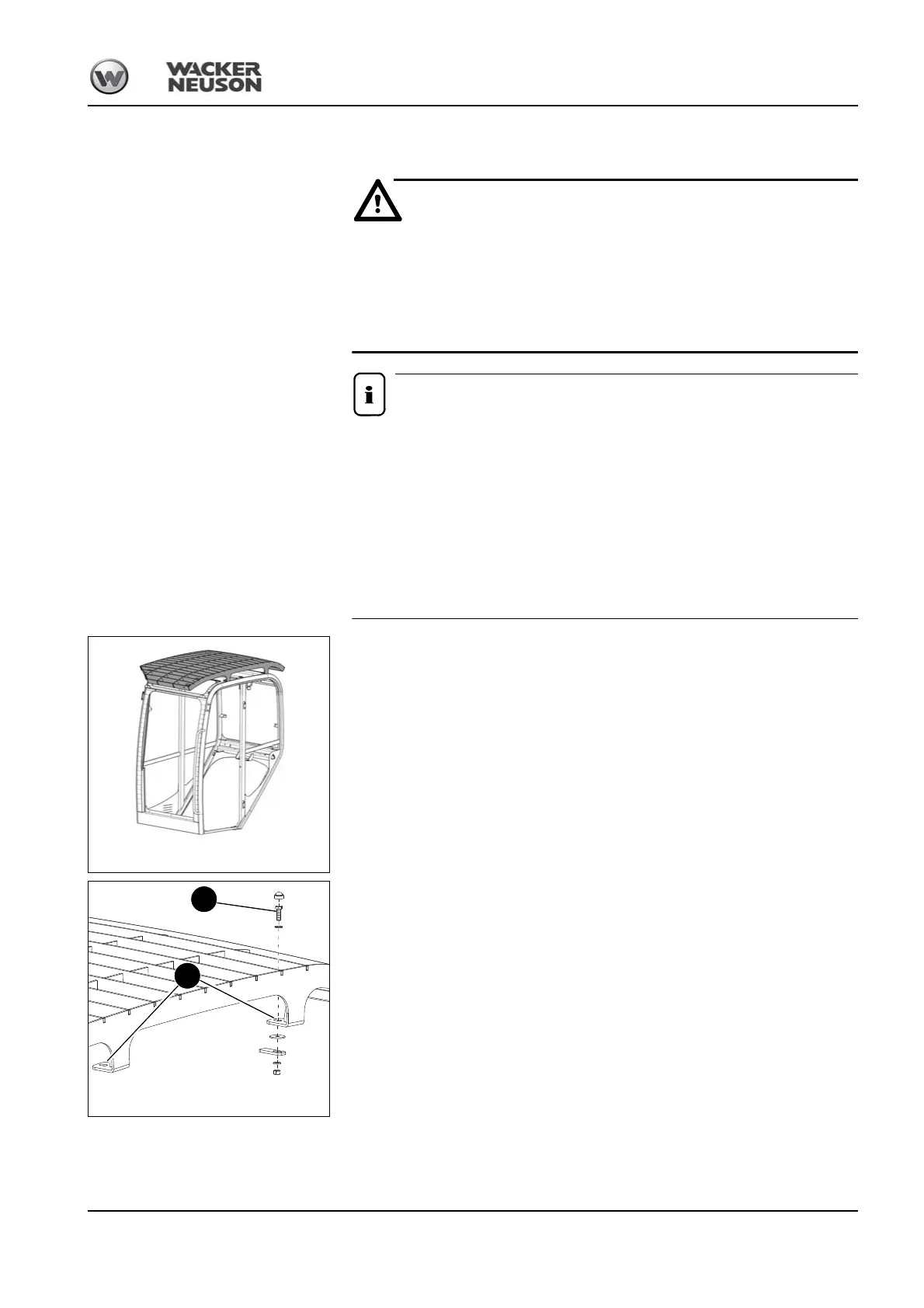

Fig. 156: FOPS category II (symbolic representation)
Fig. 157: FOPS category II (assembly)
B
A
