Operation
Locking
• Stop the engine.
• Insert tube P (included in scope of delivery) in clamping sleeve Q.
• Press the tube downward.
• The lock pin must be in position R.
Unlocking
• Stop the engine.
• Insert tube P (included in scope of delivery) in clamping sleeve Q.
• Press the tube upward.
• The lock pin must be in position S.
• Disengage lock mechanism N at the mounting bores O.
• Disengage coupling bar M at coupling claws L.
• Place the attachment on level ground.

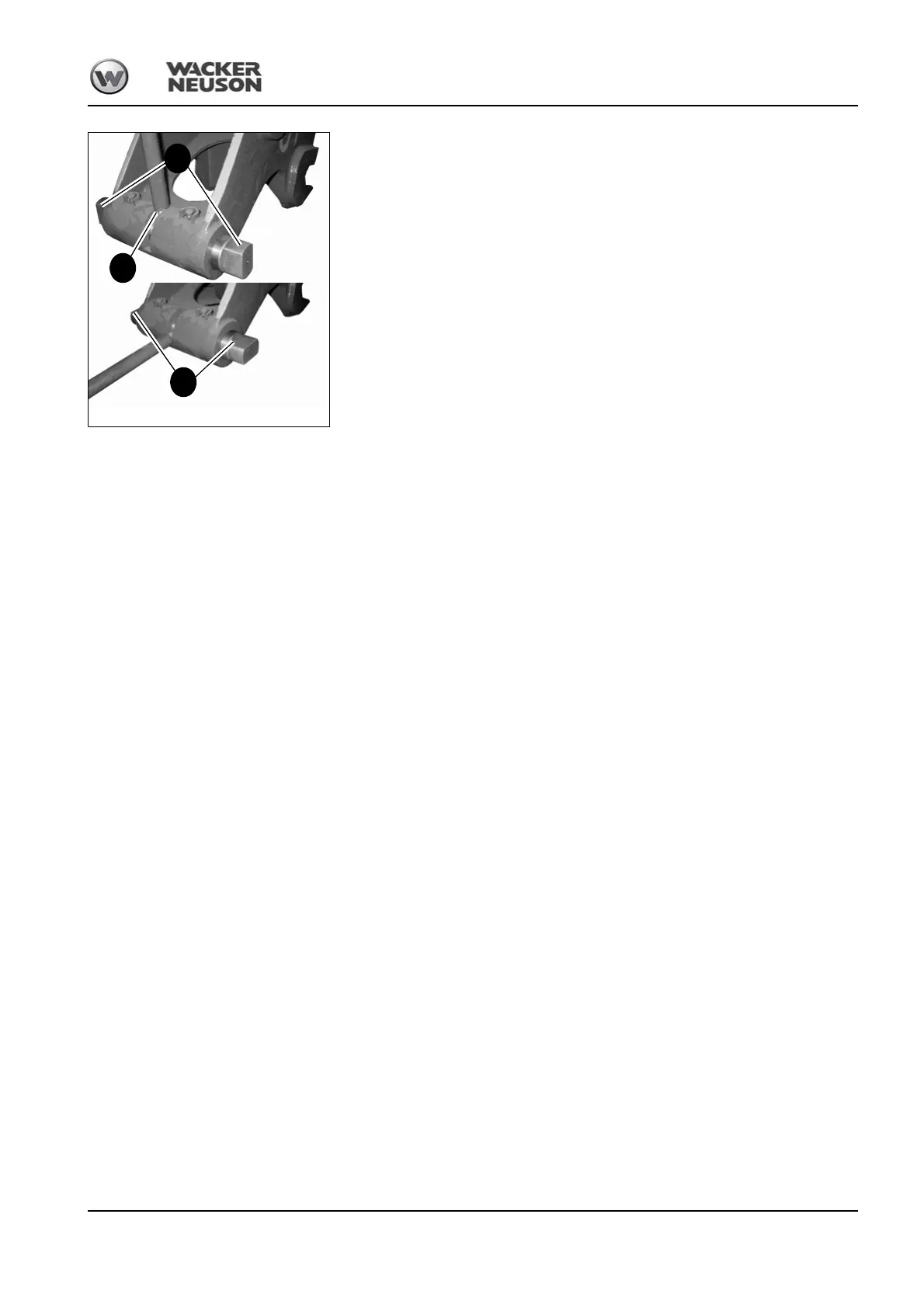

Fig. 211: Bucket with quickhitch
