Introduction
Meaning (option)
The tank contains biodegradable hydraulic oil.
This label is notched on the side depending on the biodegradable hydraulic oil used.
1 BP Biohyd SE-S 46
2 Panolin HLP Synth 46
3 Other producer of biodegradable hydraulic oil
– see chapter Important notices on the use of biodegradable oil on page 5-31
Location
Under the tank cover on the hydraulic oil tank.
Meaning
Only refuel diesel fuel with a low sulphur content.
– see chapter 5.21 Fluids and lubricants on page 5-54
Location
Next to the tank filler inlet.
Meaning
Explains the joystick functions (control pattern B).
Check before starting the machine the operating pattern that has been chosen.
– see chapter 3.51 Changeover valve for SAE/ISO controls (option) on page 3-87
Location
On the headliner.
Meaning
The admissible lift capacity must be observed according to the table.
– see chapter 6.20 Lift capacity table 50Z3 on page 6-19
Location
On the headliner.
Meaning (option)
This label describes the functions of the hydraulic quickhitch.
– see chapter 3.59 Hydraulic Easy Lock quickhitch (option) on page 3-106.
Location
On the headliner.
BIO
1000252423
BIO
HYDRAULIC OIL
HYDRAULIC OIL
BP Biohyd SE-S 46 | 1000097823
Panolin HLP Synth 46 | 1000097826

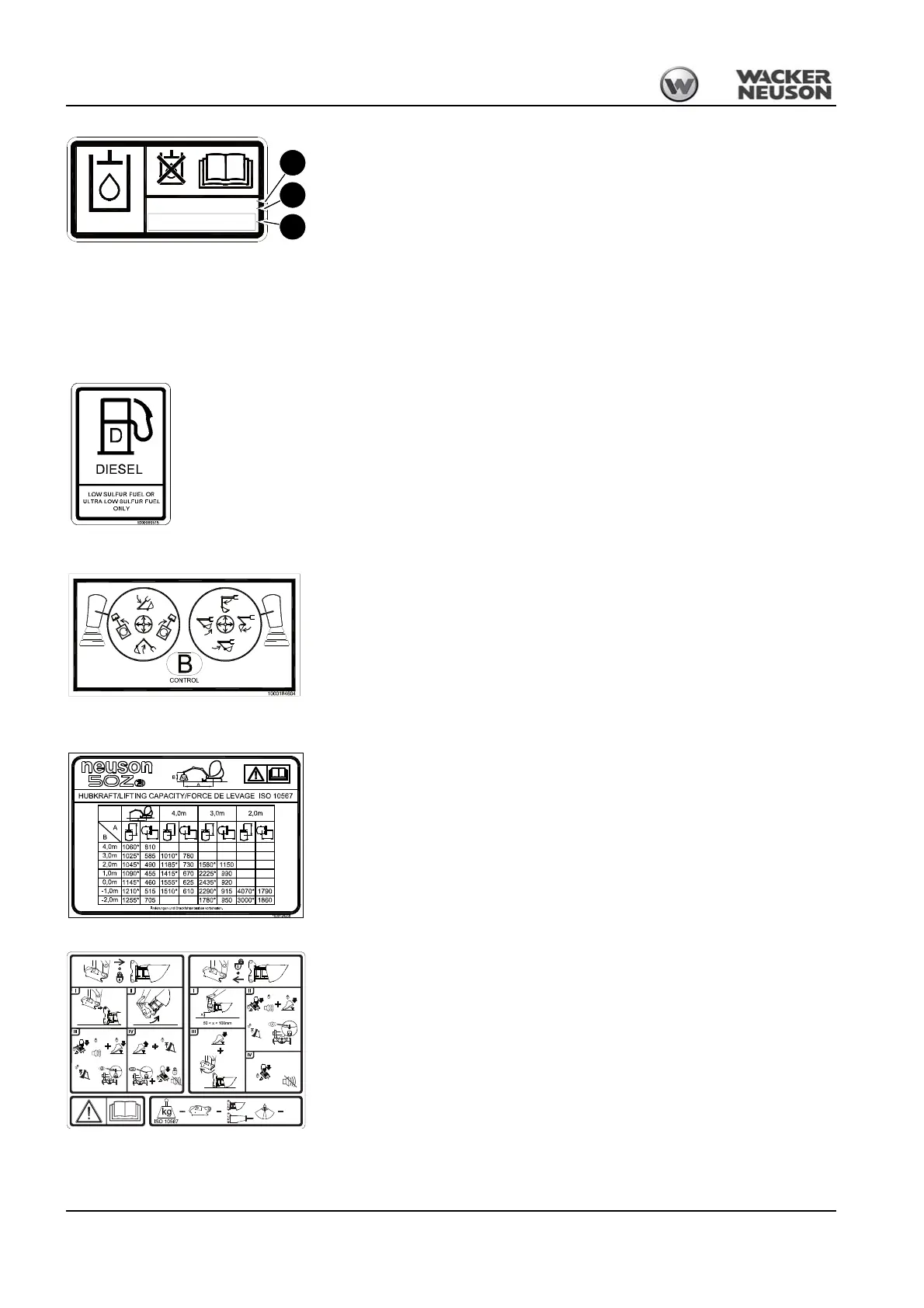

Fig. 14: Biodegradable hydraulic oil
1
2
3
Fig. 15: Diesel
Fig. 16: Controls (B)
Fig. 17: Lift capacity table
xxx
1
000
27
886
4421-2
8
7
8
Fig. 18: Hydraulic quickhitch
