WAGNER NESPRAY PLUS - Spare Parts List of Pump Head

63
NESPRAY PLUS
NESPRAY dual tip
TIP SIZE APPLICATION ORDER NO.
213
Fine trimming work for in-
side walls
1009 213
D 215 Fine trimming work 1009 215
D 316 Surface coating for smooth
interior surfaces
1009 316
D 317 Surface coating for rough
interior surfaces and smooth
exterior surfaces.
1009 317
D 319 Surface coating and appli-
cation of penetrating primer
on facades
1009 319
13.2 SPARE PARTS LIST OF PUMP HEAD
ITEM ORDER NO. DESIGNATION
1 0341 241 Inlet valve button
2 0341 316 Wiper
3 9971 486 O-ring 4x2 (FFPM)
4 0340 339 Inlet
5 0341 335 Trigger housing
6 0341 336 Clasp
7 0341 331 Seal ring
8 0341 330 Seal ring
9 0341 254 Inlet valve
10 9990 865 Dust protective cap
11 2349 975 Paint section
12 0341 248 Relief valve
13 9974 031 O-ring 12x1.3 (PTFE)
14 0341 242 Diaphragm with insert
15 0341 720 Screwed ange
16 0340 361 Groove nut
17 0340 368 Washer
18 0340 359 Rubber washer
19 9971 469 O-ring 35x2 (PTFE)
20 0340 358 Ring
21 0341 315 Movable ange
22 0034 357 Pressure spring
23 0341 311 Piston
24 9991 953 Manometer
25 9970 109 Seal ring

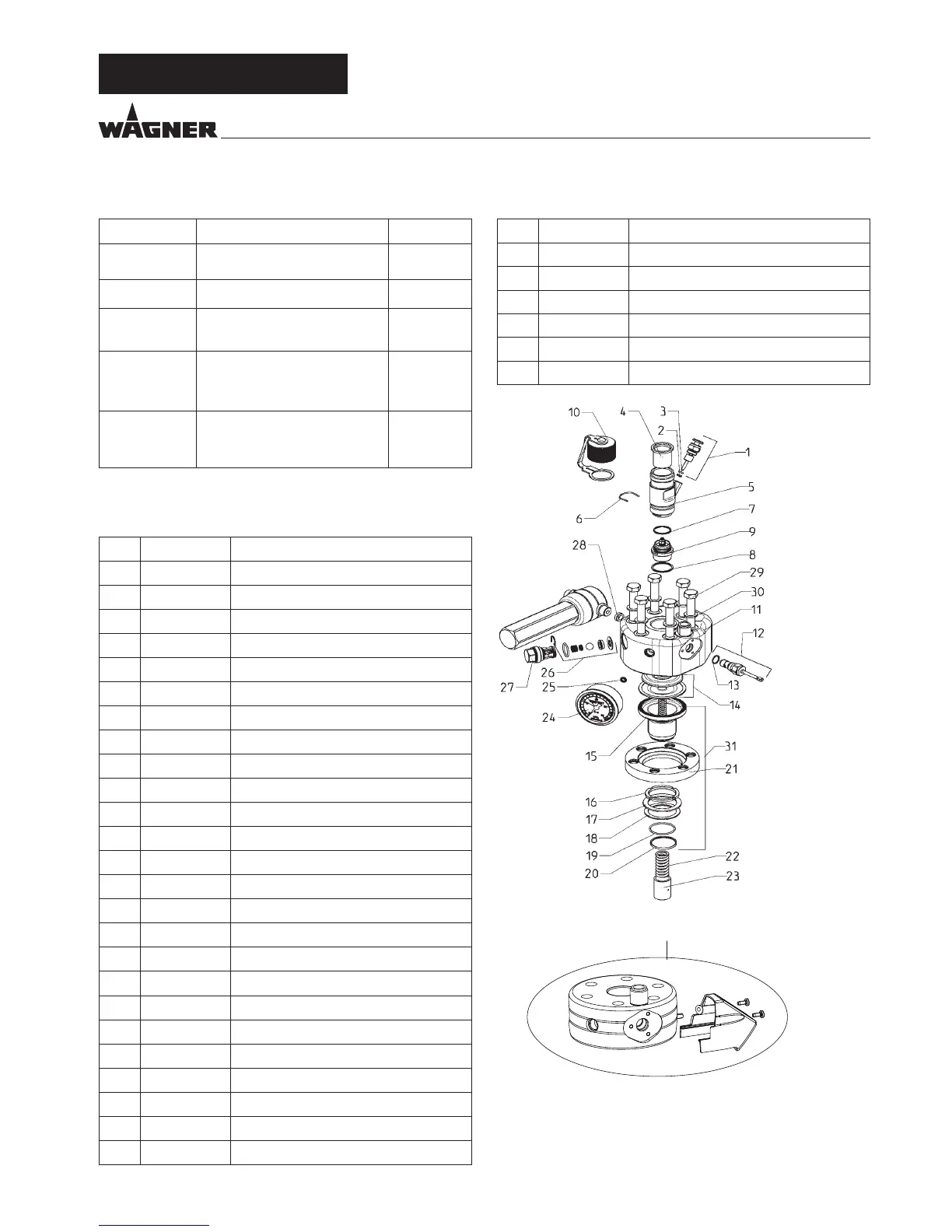

Spare parts diagram for pump head
26 0341 702 Outlet valve, service set
27 0341 325 Valve bushing
28 0341 488 Anode ring
29 9900 217 Hexagonal screw M12x90 (6)
30 9920 204 Washer 13 (6)
31 0341 710 Screwed ange (Items 15 -> 20)
32 2350 165 Service Kit Paint section
SPARE PARTS AND ACCESSORIES
