WAGO 750 Series System Manual

Serie 750, 753 System Features
System manual | Version: 3.0.2 13
Example View of the Fieldbus Coupler/Controller
1
2
3
4
5
6
7
8
9
10
11
12
13
14

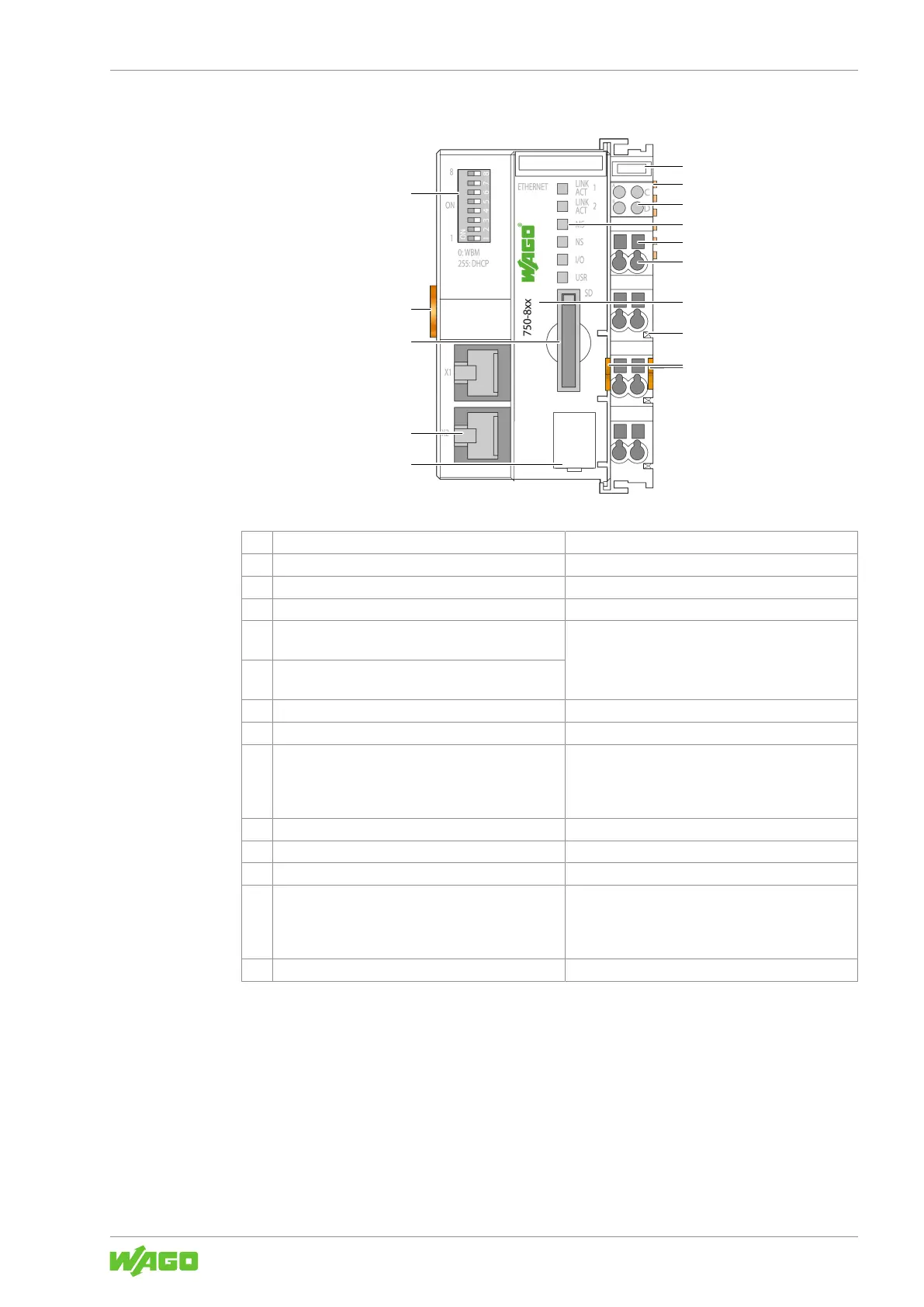

Figure4: Example View of the Controller
1 Slot for Mini-WSB (optional)
2 Data contacts
8Data Contacts [}20]
3 Display elements: Power supply status & Product Manual
4 Display elements: Fieldbus status & Product Manual
5 Access to open the associated CAGE CLAMP
®
con-
nection
8Connect Conductor to CAGE CLAMP® [}50]
6 CAGE CLAMP
®
connection for the power supply
connection
7 Item number
8Product Identification [}17]
8 Power jumper contact (spring)
8Power Jumper Contacts [}21]
9 Release tab 8Snapping the Head Station to the DIN-Rail
[}43]
8Removing a Head Station from the DIN-Rail
[}45]
10 Service interface cover
11 Fieldbus connection (optional) & Product Manual
12 Memory card slow with protective flap & Product Manual
13 DIN-rail locking cam 8Snapping the Head Station to the DIN-Rail
[}43]
8Removing a Head Station from the DIN-Rail
[}45]
14 Address selection switch (optional) & Product Manual

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
