WAGO 750 Series System Manual

Serie 750, 753System Features
20 System manual | Version: 3.0.2

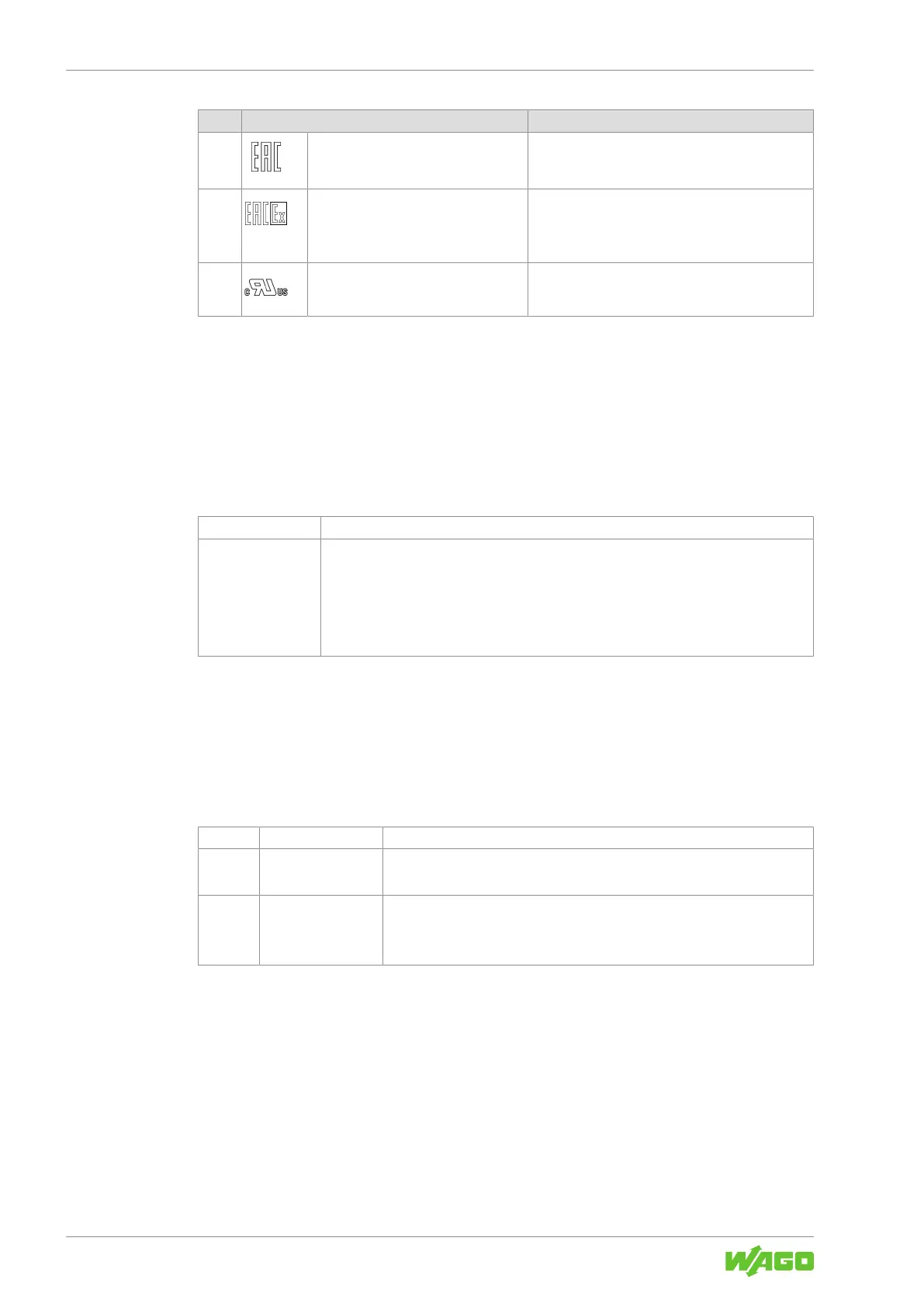

No. Contents Description
“EAC” icon The EAC mark indicates that the product conforms
to the safety requirements set forth in the EEU
technical requirements.
“EAC Ex” icon The EAC Ex mark indicates that the product con-
forms to the safety requirements set forth in the
EEU technical requirements for operation in haz-
ardous areas.
“UR” registration icon Certified safety mark from UL recognized compo-
nents for the American and Canadian market.
3.1.4.3 Identification
The production number contains internal production data as well as product-specific pro-
duction data. The production number can be:
• One row: XXXXXXXXXX_WWYYFWHWFL
• Two row: XXXXXXXXXX
WWYYFWHWFL
Table6: Production number
XXXXXXXXXX Production item number, 10-digit
WWYYFWHWFL WW: Production week
YY: Production year
FW: Firmware index
HW: Hardware index
FL: Firmware loader index
3.1.4.4 Update Matrix
In the case of a factory update, the updated production data is documented in the update
matrix. The initial manufacturing information on the product housing remains unchanged.
In the case of a head station, the cover flap of the service interface is also printed with the
updated production number.
Table7: Update Matrix
FA XXXXXXXXXX Production item number, 10-digit
PD WWYY WW: Production week
YY: Production year
AZ FWHWFL FW: Firmware index
HW: Hardware index
FL: Firmware loader index
3.1.5 System Contacts
3.1.5.1 Data Contacts
Components and the I/O module power supply communicate via the data contacts.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
