WAGO 750 Series System Manual

Serie 750, 753Assembly and Disassembly
48 System manual | Version: 3.0.2
6.6 Assembling/Disassembling Components
6.6.1 Inserting Coding Keys
For 753 Series I/O modules, the connection between the I/O module and the pluggable
connector can be coded. For the coding, proceed as follows:
1. Insert the pin into the socket.

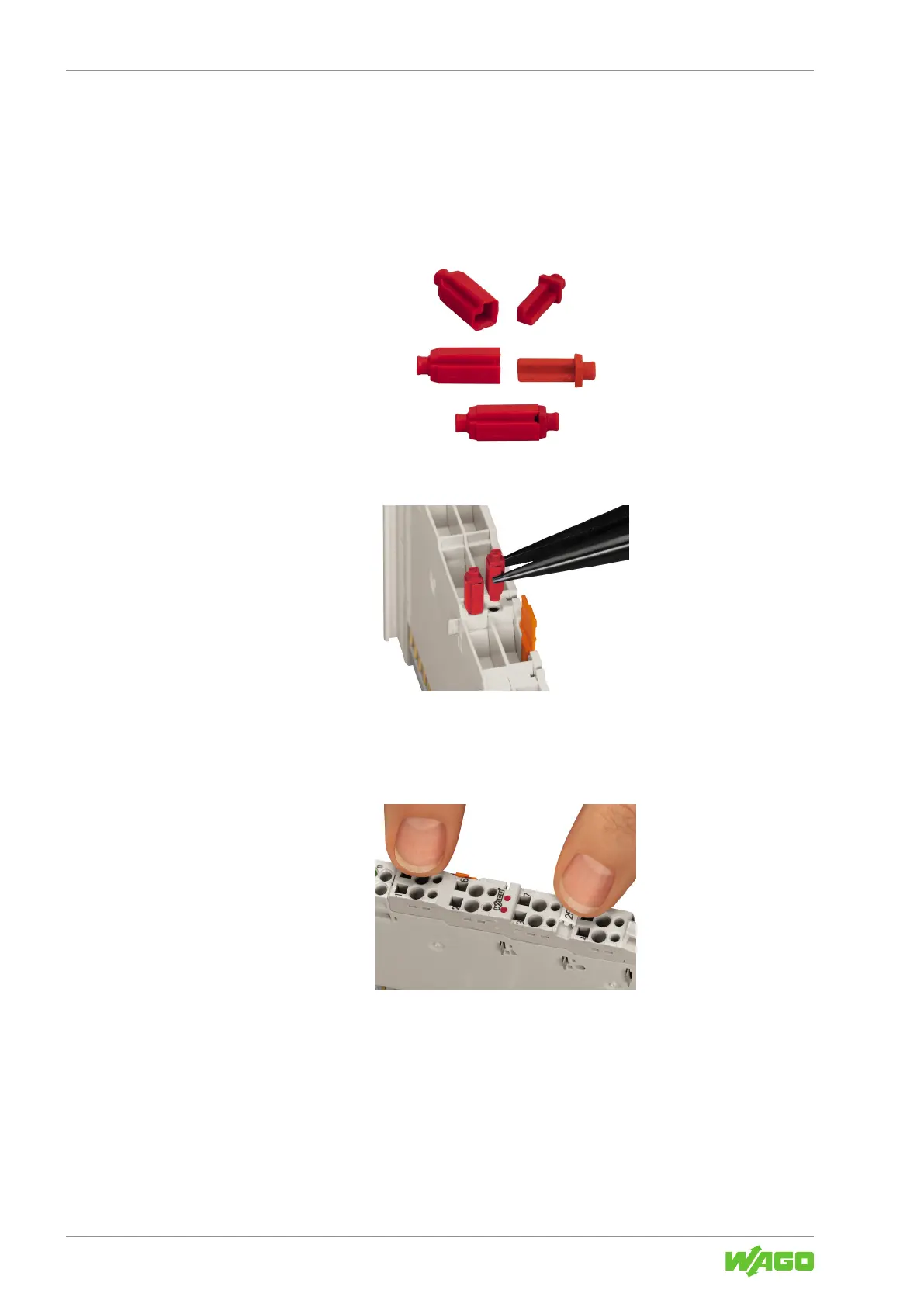

Figure29: Putting the Coding Keys Together
2. Position the assembled coding keys in the I/O module.
Figure30: Inserting Coding Keys
ð Due to its design, each coding pin allows four different coding options (i.e.; 16 dif-
ferent options using two coding keys).
3. Put the pluggable connector on the I/O module.
Figure31: Plugging the Connector into Place
ð After removing the pluggable connector, the sockets remain in the I/O module.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
