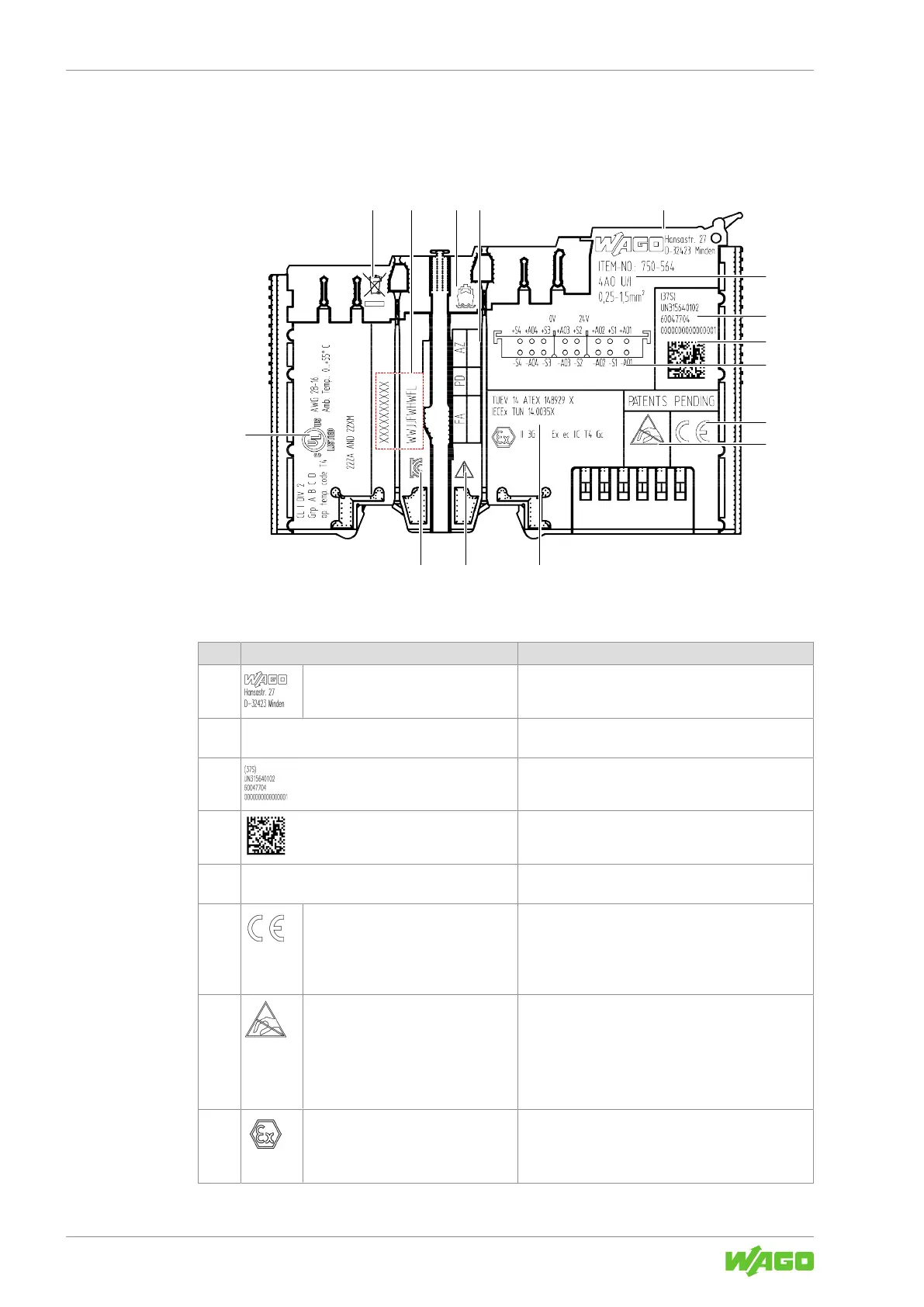

3.1.4.2 Marking Example
1
2
3
4
5
6
7
8910
11
12 13 14 15
Table4: Explanation of the Marking Example
No. Contents Description
1 WAGO Logo and Address WAGO Kontakttechnik GmbH & Co. KG
2 Product information Item number and product description; conductor
cross section where required
3 Production data
4 DataMatrix code
5 Terminal allocation More information on the topic of Connections in the
respective & Product Manual.
6 CE mark The CE mark indicates WAGO has declared that the
product conforms with the applicable requirements
as set out in Community harmonization legislation
per EC Regulation 765/2008, which allows the prod-
uct to carry this mark.
7 “ESD” exclamation icon Note: Avoid electrostatic discharge!
The products are equipped with electronic compo-
nents that may be destroyed by electrostatic dis-
charge when touched. Please observe the safety
precautions against electrostatic discharge per DIN
EN 61340-5-1/-3.
8 “Ex” registration icon The product meets the classified requirements ac-
cording to ATEX for operation in potentially explo-
sive areas. More information on the topic of Ap-
provals in the respective & Product Manual.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
