Serie 750, 753 System Features
System manual | Version: 3.0.2 21

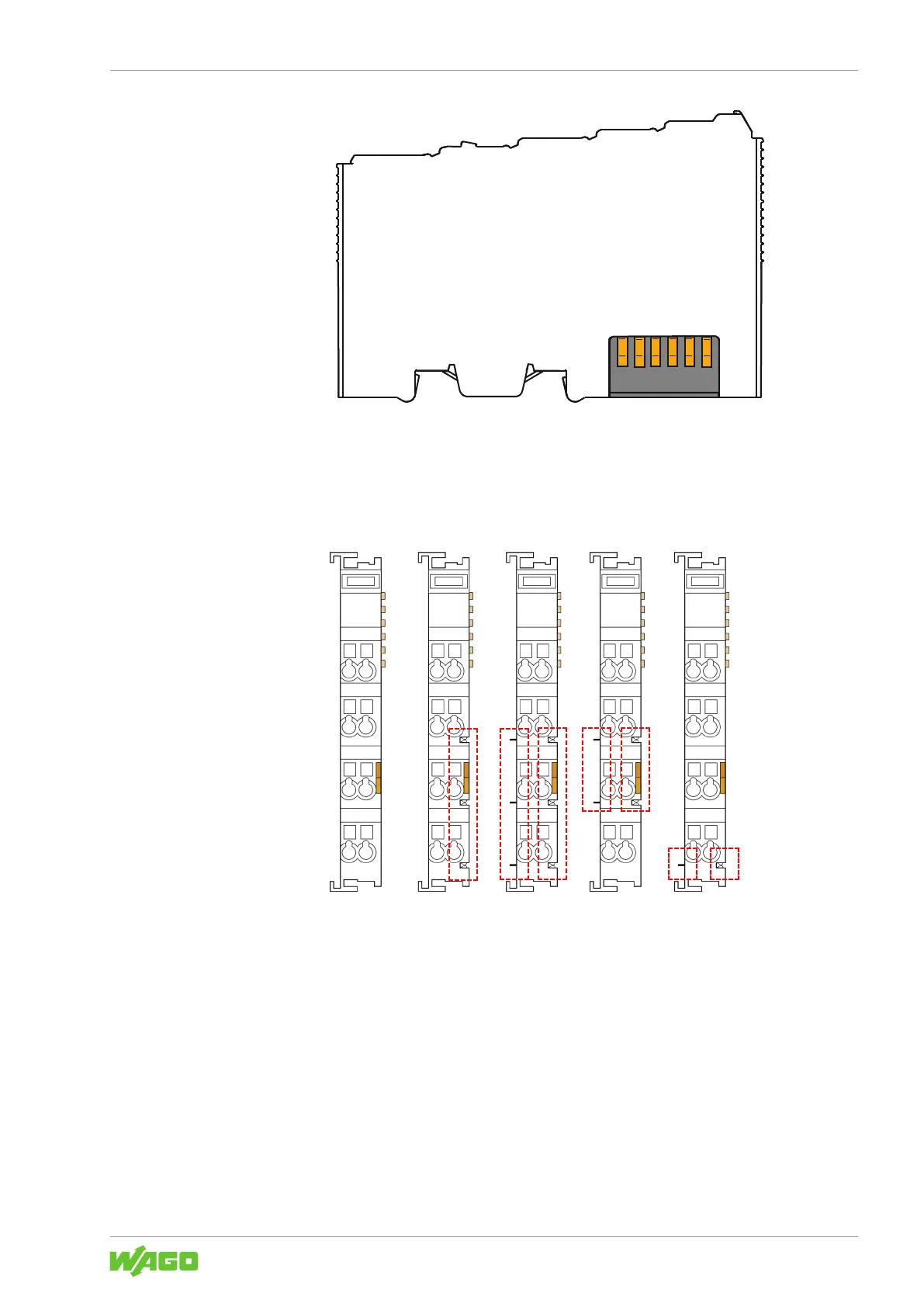

Figure8: Data Contacts
3.1.5.2 Power Jumper Contacts
The field power supply is distributed in the I/O system via the power jumper contacts. The
contacts on the left side are male contacts; those on the right side are touch-proof spring
contacts.
Figure9: Example: Power Jumper Contact Arrangement (left: male contacts; right: spring contacts)
3.1.5.3 DIN-Rail Contact
Many components of the I/O system transmit electromagnetic interference to the DIN-rail
via DIN-rail contacts. The DIN-rail contacts of the modules are automatically connected
when they are snapped on to the DIN-rail.
For the I/O modules, there is usually no direct connection between the DIN-rail contact
and the ground connections of the wiring interface and the associated power jumper con-
tacts. The specific design is described in & Product Manual.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
