WAGO 750 Series System Manual

Serie 750, 753 System Features
System manual | Version: 3.0.2 25
3.2.3 Field Supply

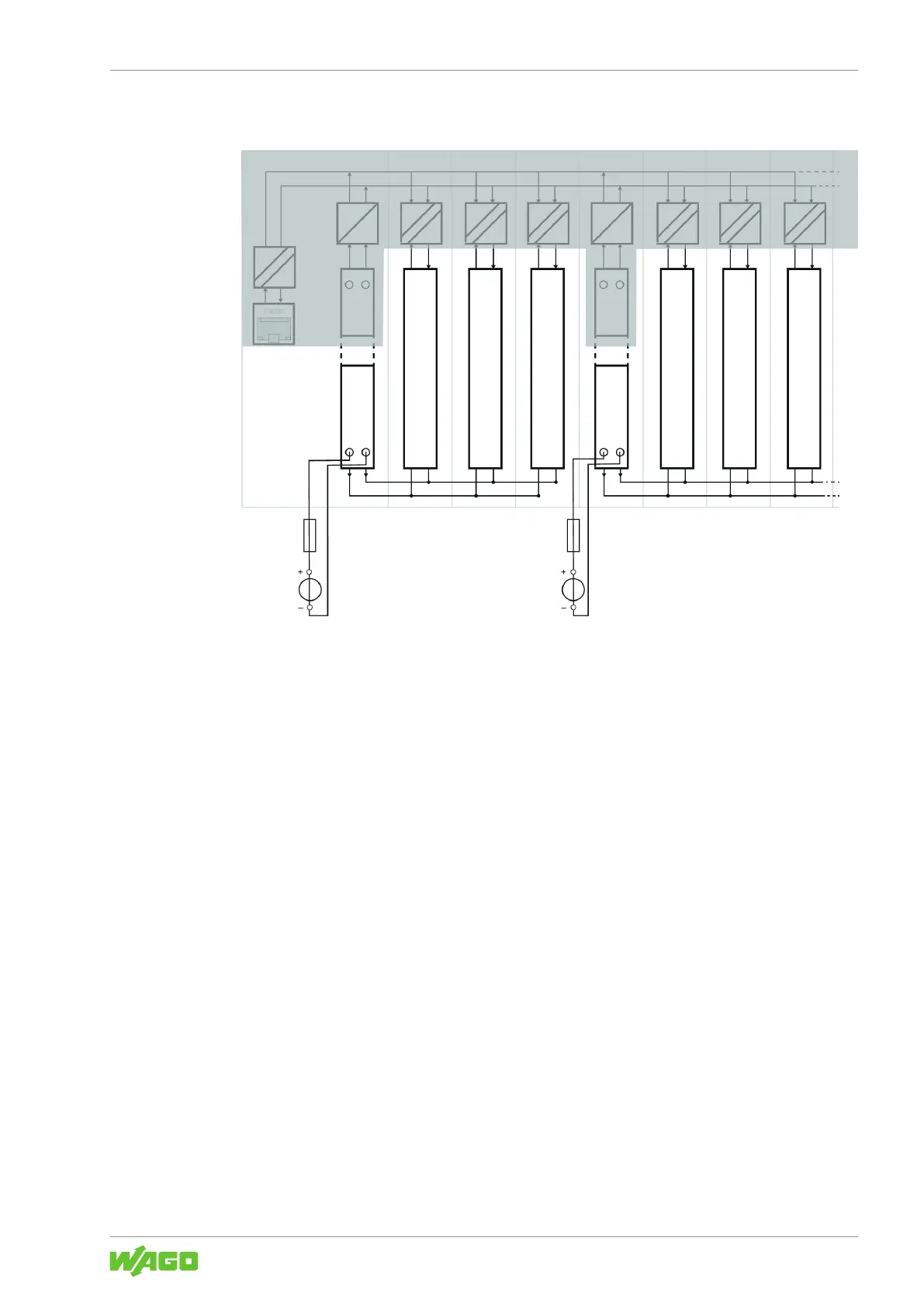

Figure13: Field Supply Input (example)
Observe the following requirements for the field supply:
• Use voltage sources with safe extra-low voltage (SELV, PELV) for all voltages with a
nominal value of 24 VDC.
• Be sure to include an overcurrent protection device to ensure the maximum permissi-
ble current values are not exceeded.
Additional supply modules are needed for:
• Higher power requirements
• Use of different potential groups
• Use of different field voltages
• Functional change (e.g., Ex i or functional safety)
3.2.4 Power Supply Components
The following components are needed to establish a power supply:
• Voltage Sources with Safe Extra-Low Voltage (SELV, PELV)
• Overcurrent protection devices
– Supply modules with integrated fuses
– External fuse terminal blocks
– Circuit-breakers
• Suitable isolation devices, e.g., non-automatic circuit-breaker
• Supply modules
– Bus power supplies
– Supply module

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
