WAGO 750 Series System Manual

Serie 750, 753System Features
24 System manual | Version: 3.0.2

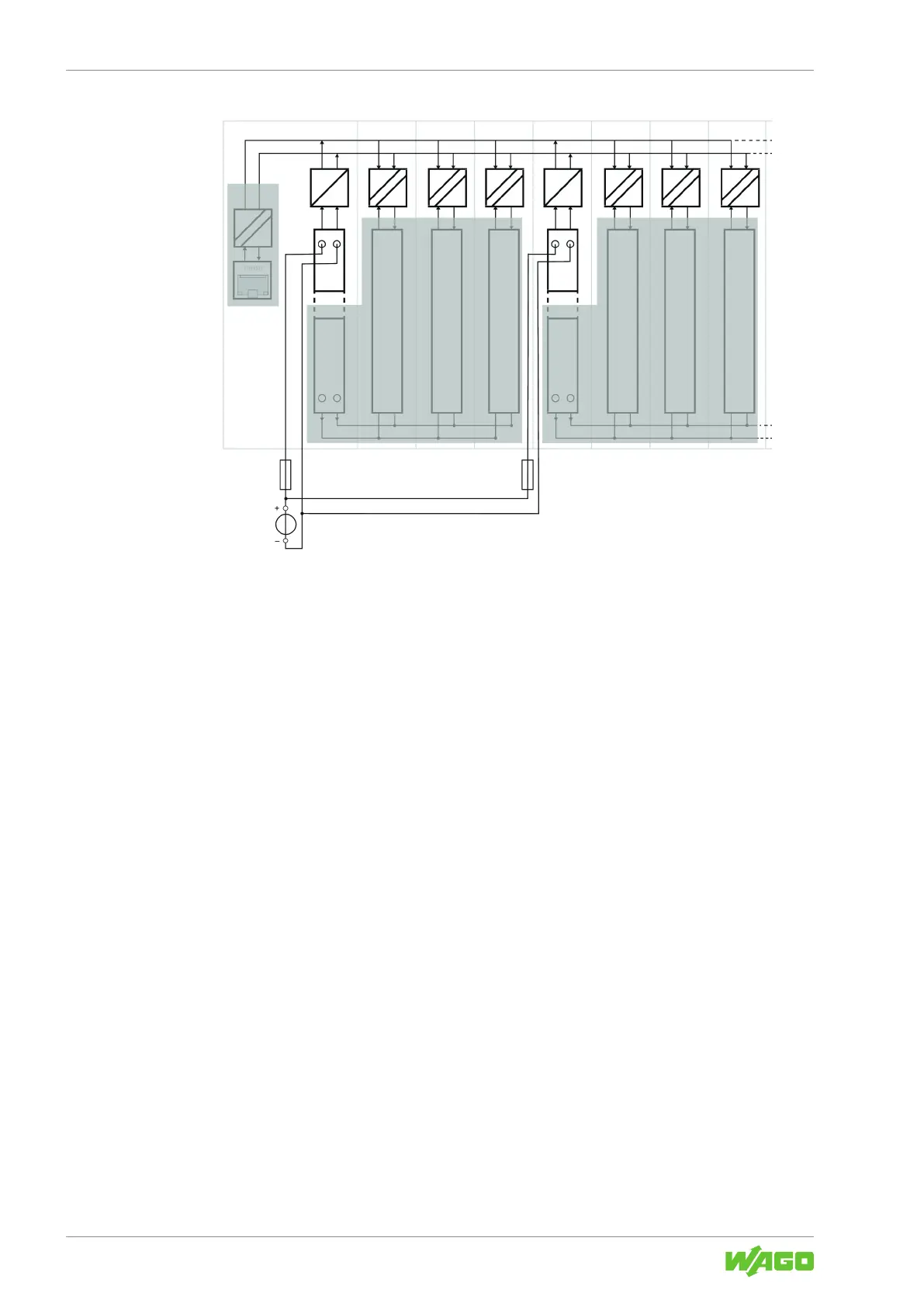

Figure12: System Supply Input (example)
Observe the following system supply requirements:
• Use voltage sources with safe extra-low voltage (SELV, PELV).
• Power must be supplied simultaneously to all system supply inputs.
WAGO recommends using the same voltage source to realize the power supply.
• Be sure maximum permissible current values are not exceeded.
• Use an external fuse to protect the system supply of each power supply.
Product-specific information is available from the technical data in the respective &
Product Manual.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
