Serie 750, 753Planning
38 System manual | Version: 3.0.2
If the following section consists of one end module (750-600), no distance modules are
required.
4.5.3 Marine and Offshore Exi Applications
When I/O modules are used in marine Exi applications, additional requirements must be
considered alongside those described under 8Exi Applications [}36] Exi.
Power Supply Concept for Marine Applications in Exi Zone, Class A
To use intrinsically safe modules Class A marine applications (all areas, except bridge
and open deck), the filter module 750-624/xxx-xxx must be used in conjunction with the
Ex i supply module.
5
U
S
U
F1
U
F2
3
4
1
2

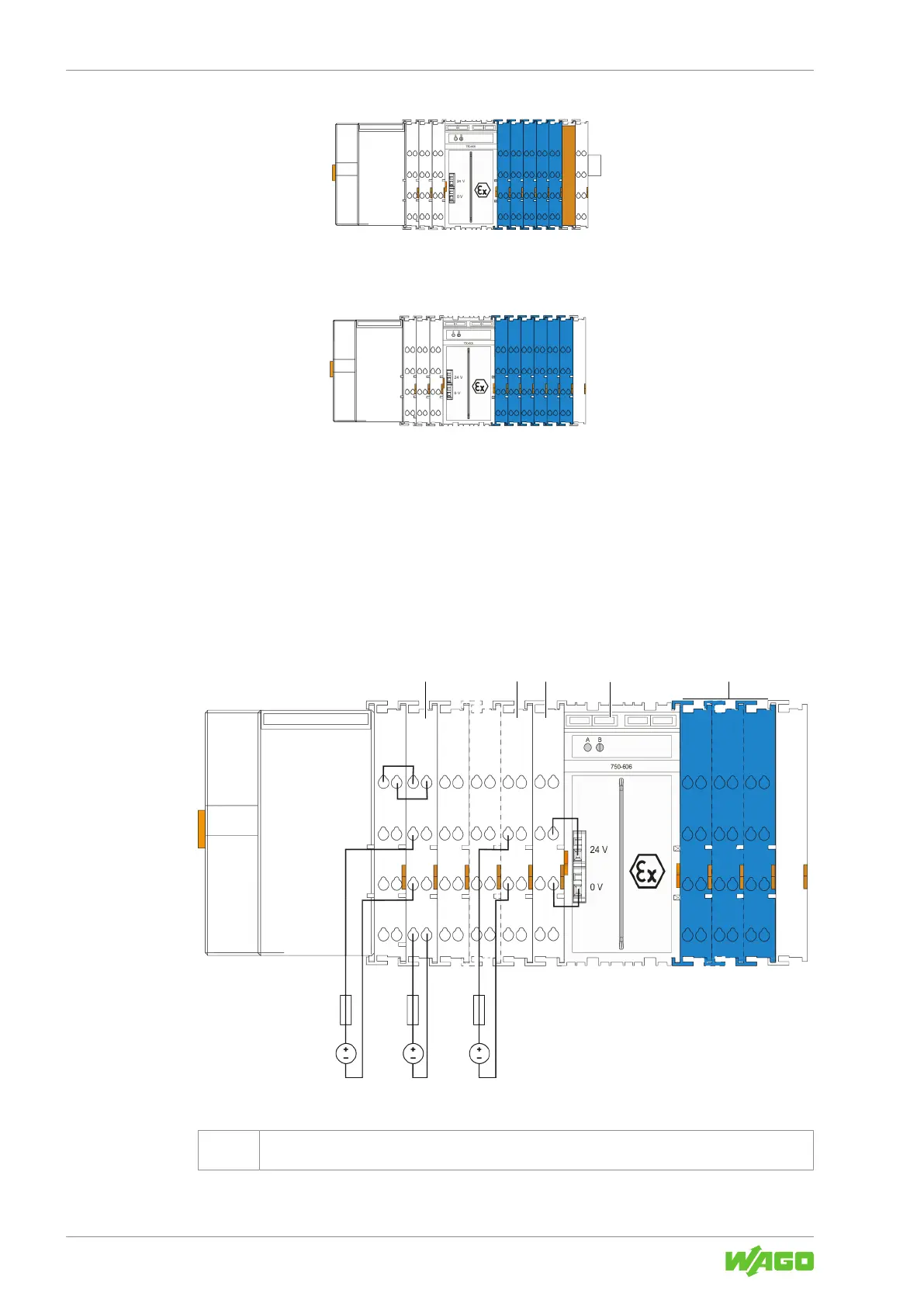

Figure19: Power Supply Concept for Marine Applications in Exi Zone – Class A
1 Filter module, 24VDC, HI GF (750-626/020-002) or
filter module, 24VDC, HI (750-626/020-000)
