WAGO 750 Series System Manual

Serie 750, 753 Planning
System manual | Version: 3.0.2 37
1 2
U
S
U
F1
U
F2

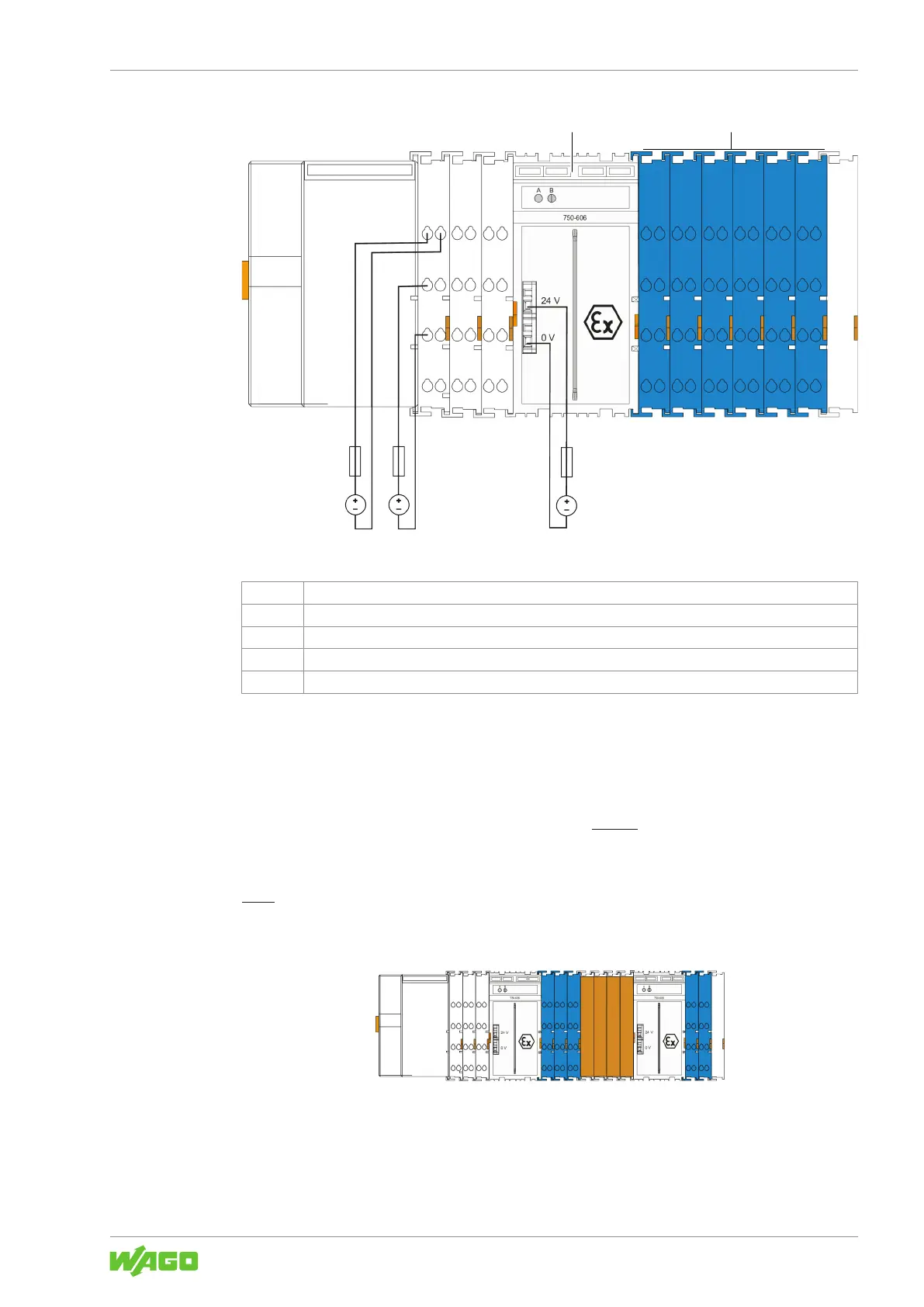

Figure18: Exi Power Supply Concept
1 Ex i bus supply module (750-606, 750-625/000-001)
*
2 Exi I/O modules
U
S
System supply (24VDC)
U
F1
Field supply 1 (24VDC)
U
F2
Field supply 2 (24VDC)
*)
750-606 with electronic fuse and diagnostics
750-625/000-001 with electronic fuse and no diagnostics
Clearance and Creepage Distance Requirements
For all sections of a node that contain I/O modules for Exi use, stricter requirements re-
garding clearances and creepage distances apply. Before the first such node section, the
respective Exi supply module (750-606 or 750-625/000-001) ensures the required dis-
tance.
After each such node section, four distance modules (750-616) must be used. This also
applies when the next section also starts with an Exi supply module (750-606 or
750-625/000-001).
Exceptions:
If the following section consists of an end module for bus extension (750-627), one
distance module (750-616) is sufficient.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
