WAGO 750 Series System Manual

Serie 750, 753Assembly and Disassembly
46 System manual | Version: 3.0.2
2. Use the release tab to pull the head station off the DIN-rail and, if necessary, out of
the assembly. To remove head stations with two release tabs, both tabs must be
pulled at the same time!
ð When the head station is pulled out of an assembly, the electrical connections of the
data contacts or power jumper contacts to the subsequent I/O module are separated.
6.5 Removing the I/O Module
An I/O module can be detached from the DIN-rail using its release tab and pulling it out of
the assembly.
Removing 750 Series I/O Modules
1. Pull up the orange release tab on the I/O module. To remove I/O modules with two
release tabs from a group, both tabs must be pulled at the same time!

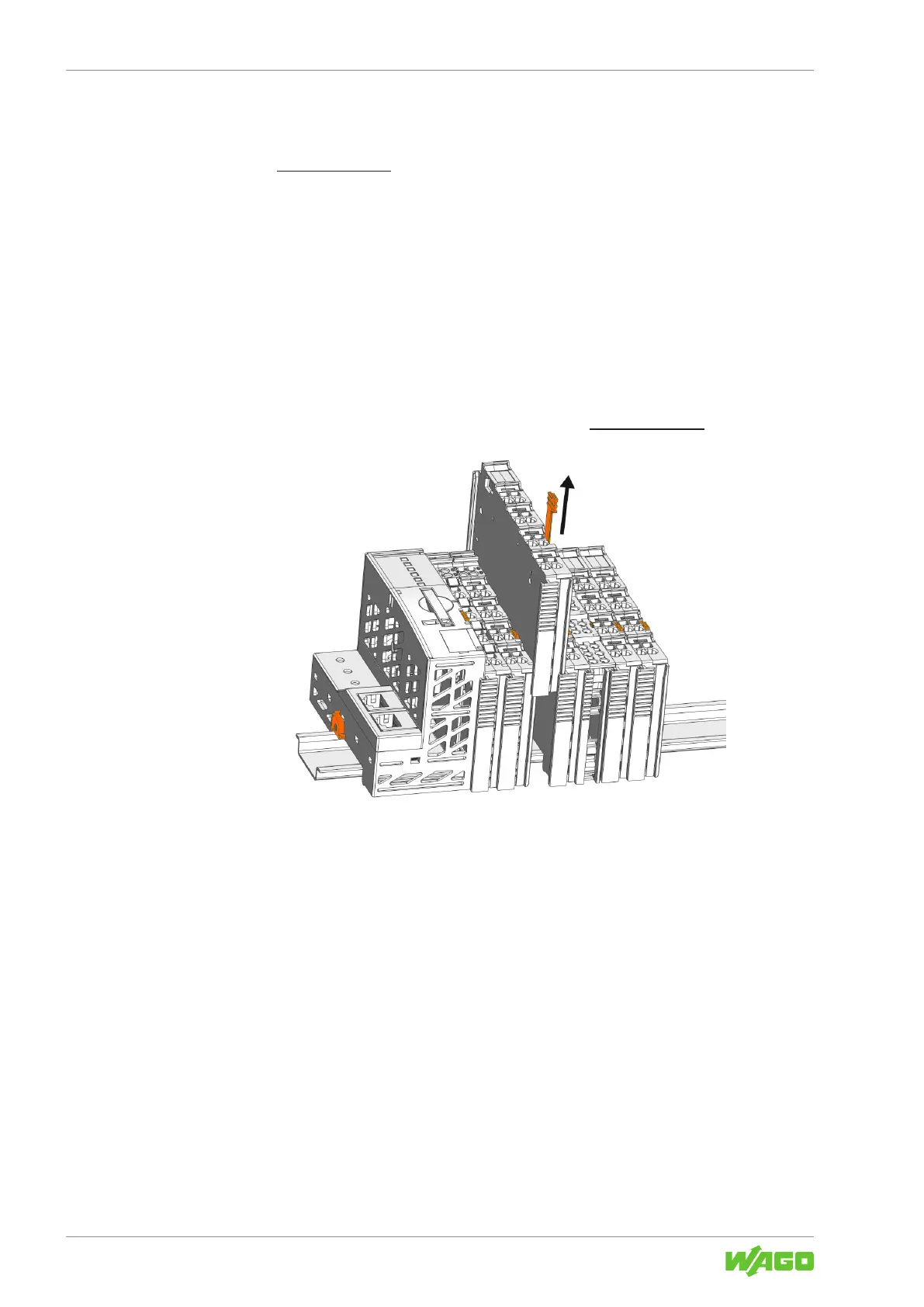

Figure26: Pull the release tab
2. Pull the I/O module out of the assembly by the release tab.
ð When the I/O module is pulled out of the assembly, the electrical connections of the
data and power contacts are separated.
Removing 753 Series I/O Modules
1. Remove the pluggable connector by pulling the orange locking latch towards the top
edge of the I/O module.
ð The release tab is then accessible.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
