Serie 750, 753Planning
30 System manual | Version: 3.0.2

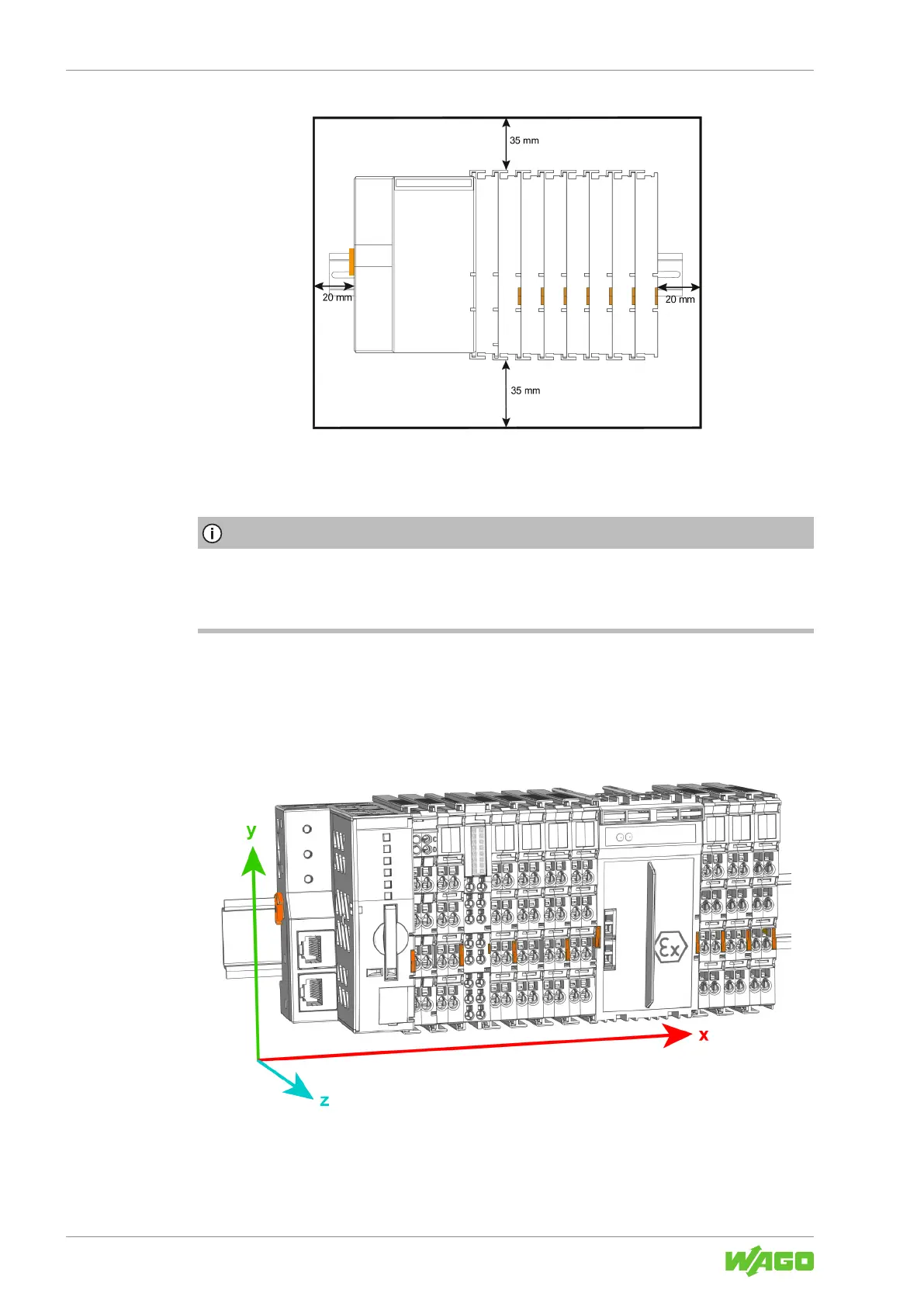

Figure14: Installation Clearances
Coordinate Model
Note
Modified Coordinate Model
In product documentation published before 2021, the height (y) and depth (z) have been
swapped!
• Width = Dimension along X axis = Horizontal in nominal mounting position; parallel to
DIN-rail longitudinal axis
• Height = Dimension along Y axis = Vertical in nominal mounting position
• Depth = Dimension along Z axis = Horizontal in nominal mounting position; perpendic-
ular to DIN-rail longitudinal axis
Figure15: Coordinate model: width (x), height (y), depth (z)

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
