4. Controls
4.1 Engine Controls
Before starting to work, all operators should familiarize
themselves with the location and function of controls.
1
2
3
01381

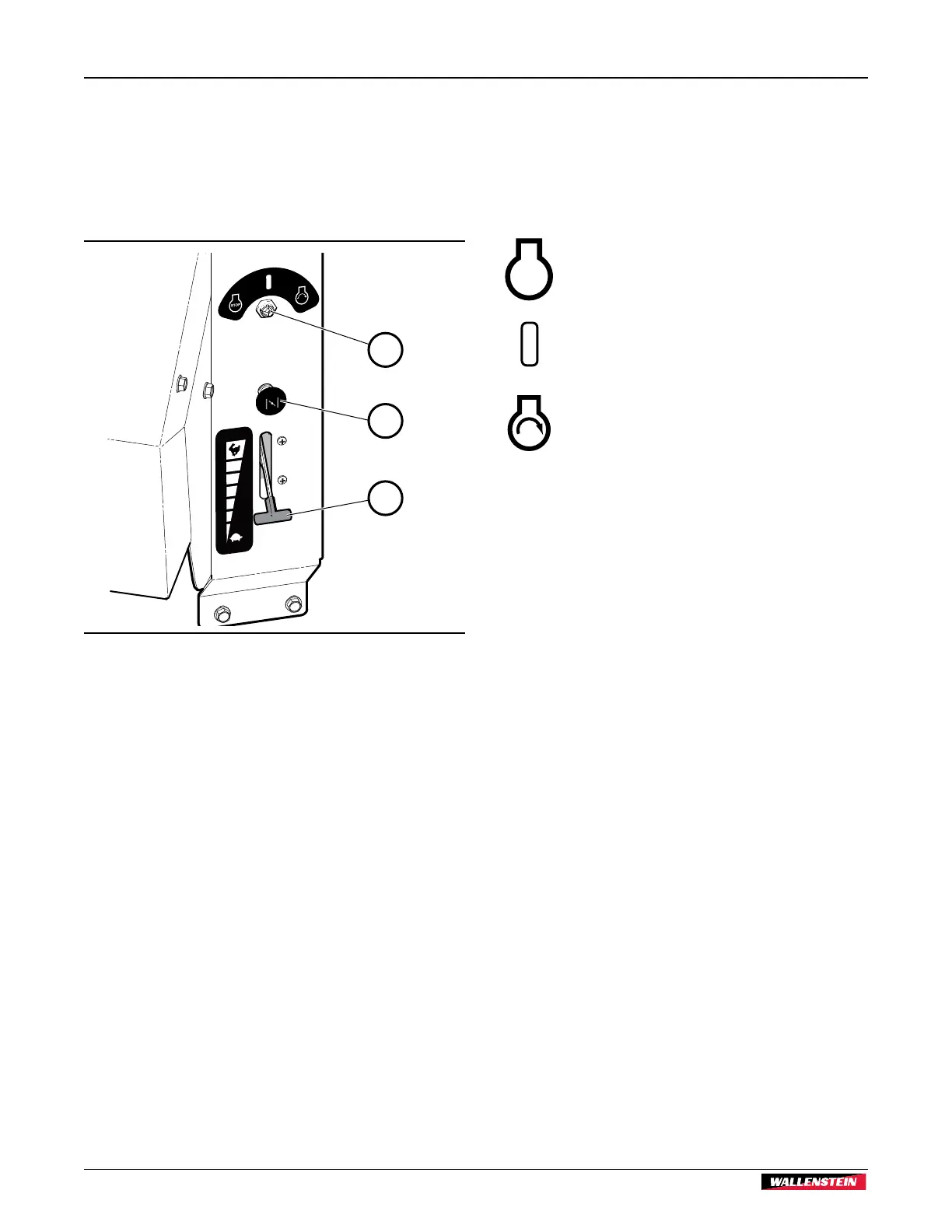

Fig. 5 – Engine Controls
1. Ignition Switch
2. Choke Control
3. Engine Throttle
1. Ignition Switch
This key-operated switch controls the electric power to the
engine.
STOP
STOP – Turn key fully counter-clockwise to stop
the electrical system power and turn the engine
off.
ON – Turn clockwise to the on (run) position at
the detent. This is the position where the engine
operates.
START – Turn fully clockwise to engage the
starter solenoid and start the engine. Release
the key when the engine starts and it spring-
returns to the center on position.
2. Choke Control
This push/pull knob controls the position of the choke.
• Pull the knob out (close the choke) to start a cold engine.
• Push the knob in (open the choke) as the engine warms.
Always push the knob fully in when operating the machine.
Refer to the engine manufacturer's manual for complete starting
details.
3. Engine Throttle
This lever controls the engine speed.
• Pull the lever up to increase engine speed and push down
to decrease it.
