Operating Instructions
WP1624
Firewood Processor
40
7.4 Infeed Conveyor
The infeed conveyor moves the log to the saw.
IMPORTANT! Before advancing the log, always make
sure saw is raised FULLY. Running the log into the saw can
damage it.
00396

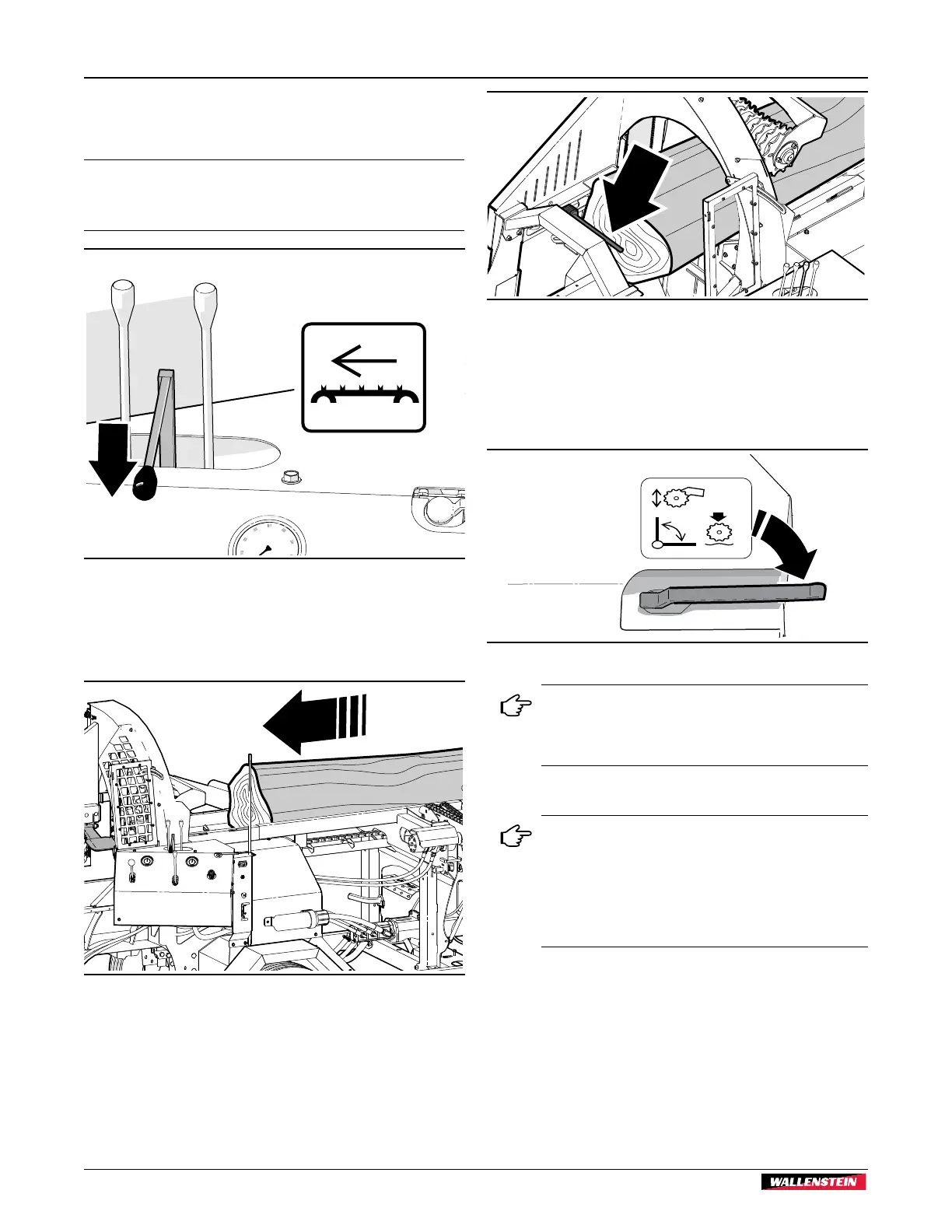

Fig. 46 – Infeed Conveyor Control Valve
• Push the control valve handle down to advance the log up
to the Log Stop Guide.
• If reversing the log is required, push the lever upward away
from the operator.
Fig. 47 – Advance Log
00398
Fig. 48 – Log Stop Guide
7.5 Top Roller
• Clamp the Top Roller down on the log by pulling the handle
down to horizontal.
01383
Fig. 49 – Top Roller Clamped onto Log
The arm provides some down force on the roller to
hold the log as saw cuts are made. The roller follows
the contour of the log as it is advanced on the Infeed
Conveyor.
• When starting a new log, push the lever back up vertical.
With the lever vertical (roller unclamped) the clamp
arm holds its raised position unless the saw is
moved. Pulling the saw down to cut, the roller
clamps down on the log.
When unclamped, the clamp arm starts to raise
when the saw reaches the home position.
