WP1624
Firewood Processor
Operating Instructions
41

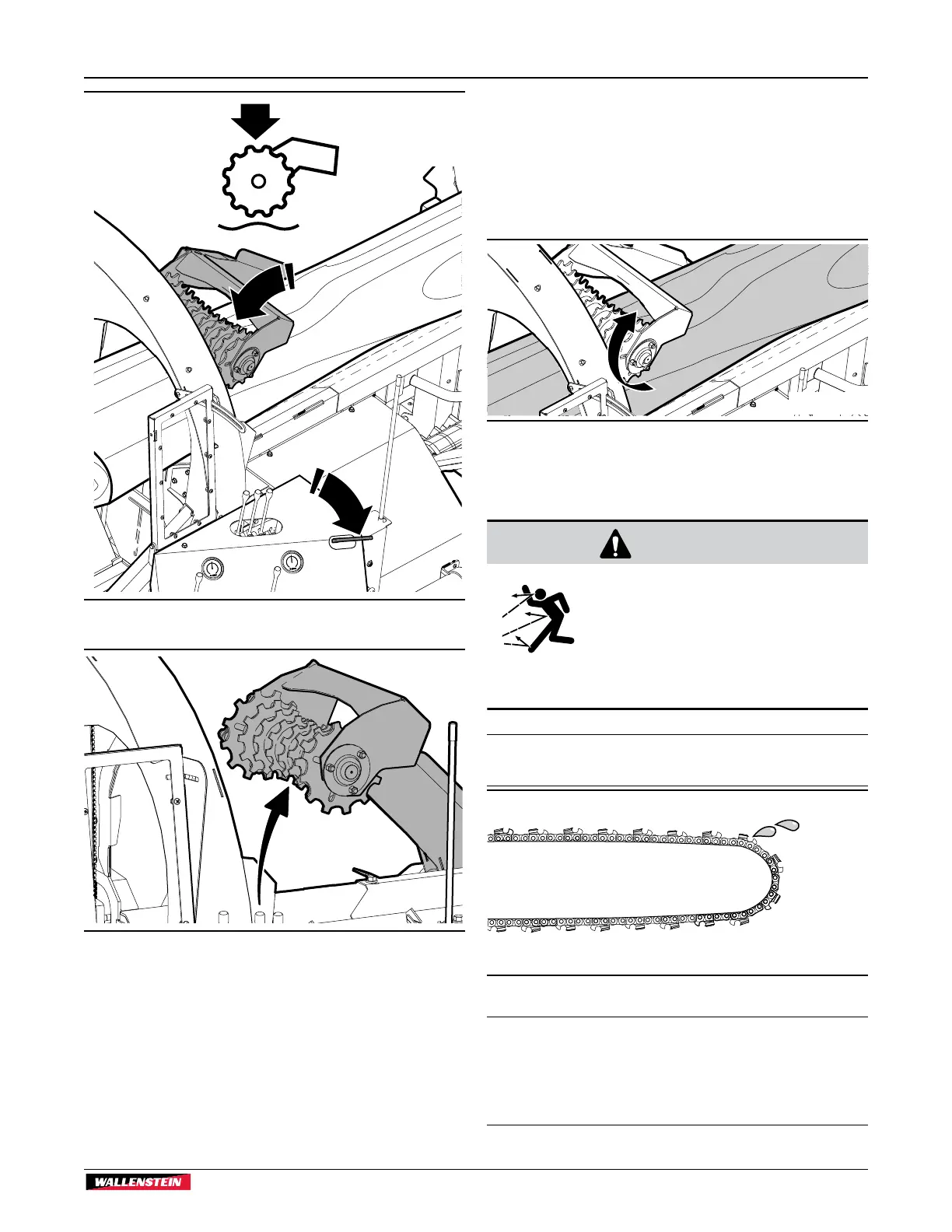

Fig. 50 – Top Roller Lift Arm Clamped Down on Log
Fig. 51 – Top Roller Clear for Next Log
7.5.1 Powered Top Roller
(If equipped. The Powered Top Roller is a dealer-installed
option.)
A hydraulic motor powers the top roller to work in series with
the infeed conveyor. It assists feeding logs into the saw, and
starts and stops with the infeed conveyor.
00408
Fig. 52 – Powered Top Roller
7.6 Cutting
WARNING!
Risk of serious injury or death from
fl ying debris or shot from broken
saw chain. Stay behind protective
shields when cutting. Keep ground
personnel and bystanders outside
perimeter of work area.
W044
IMPORTANT! Allow adequate time during start up for bar
oil to reach the chain.
Fig. 53 – Bar Oil
IMPORTANT! In cold weather run the saw slowly while
cycling the guide bar until lubricant can be observed leaving
the tip of the guide bar. Warm the saw circuit oil by holding
the saw control valve lever forward in the RAISE position to
cycle oil back to the reservoir.
