Operating Instructions
WP1624
Firewood Processor
48
7.11 Transporting
• Clear out all logs and clean all debris off the wood
processor.
• Raise live deck so it is in the vertical transport position.
• Check that all lights and reflectors required are not
damaged and cleaned.
• Remove or secure any loose objects. Place tools in the
toolbox.
• Raise/fold-up the conveyor

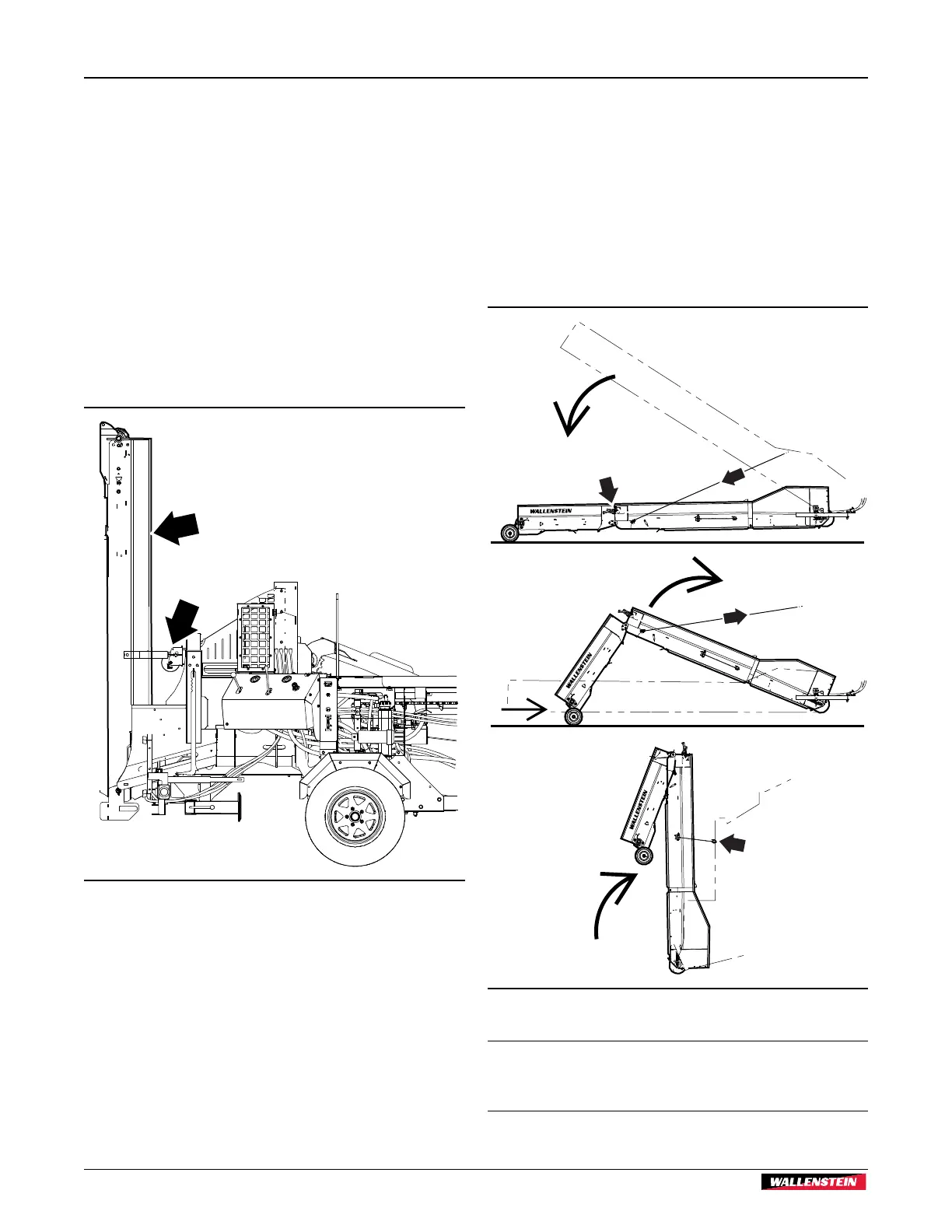

Transport Position 8 ft (2.4 m) conveyor:
• Use the hand winch to raise it up to vertical.
• Install the chute lock arm and lynch pin.
00359
Fig. 72 – 8 ft (2.4 m) Conveyor in Transport Position
Transport Position 12 ft (3.4 m) conveyor:
• Lower it fully to the ground.
• Disconnect the latch clamps at the hinge point.
• Raise the conveyor with the hand winch, allowing the
conveyor to fold and wheels to roll along the ground.
• Raise the conveyor fully and install both chute lock arms—
one binds the folding section to the base section of the
conveyor, and another locks the base conveyor section to
the splitter.
1
3
3
2
00358
4
Fig. 73 – 12 ft (3.6 m) Conveyor in Transport Position
IMPORTANT! When unfolding the conveyor for use, make
sure that the chain engages over the sprocket as it tightens
by the action of unfolding and clamping.
