Wallenstein P3 PULSE WP1624 - Hydraulic Controls Operation

WP1624
Firewood Processor
Controls
23
01376
4
2
3
1
5 6
7 8
9
10
4.2 Hydraulic Controls

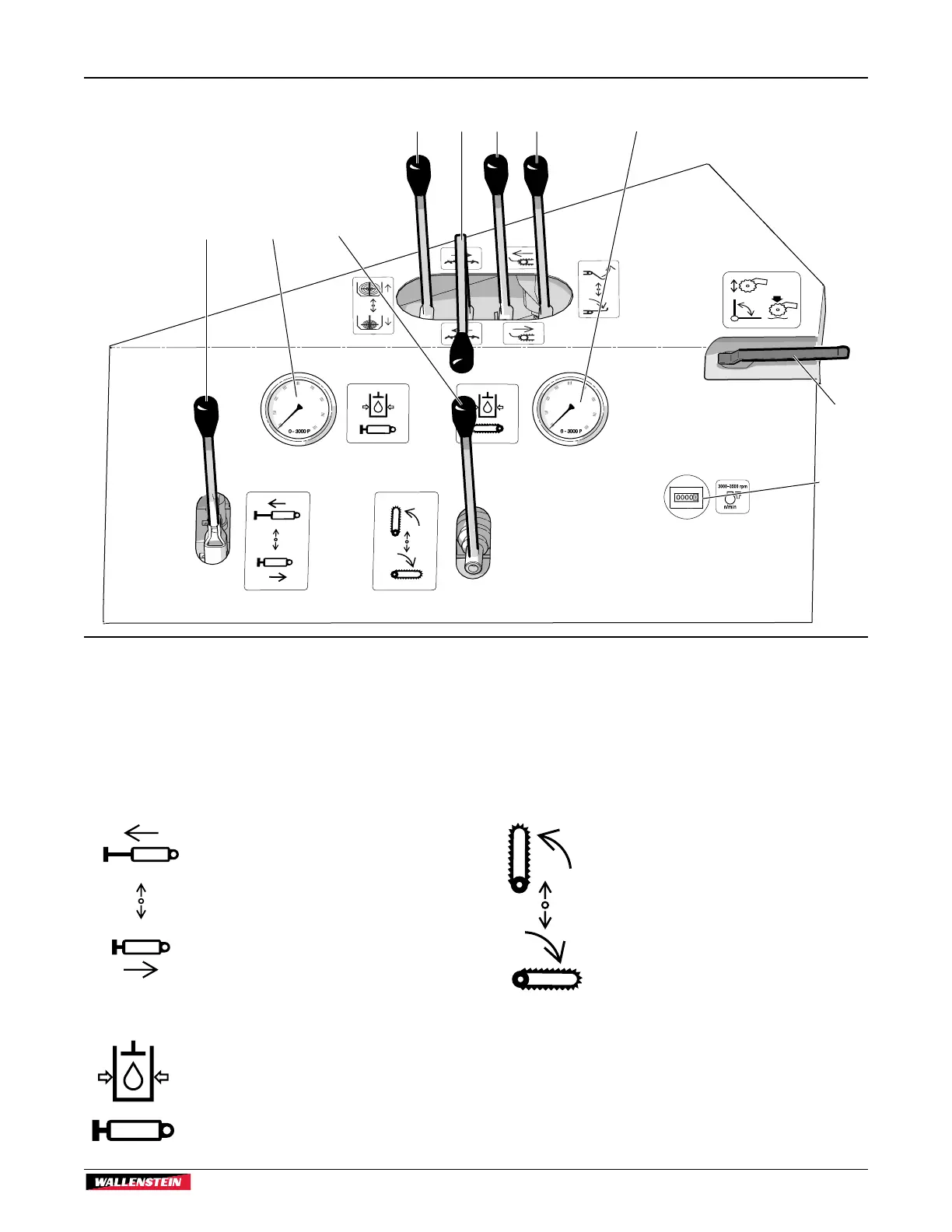

Fig. 10 – Hydraulic Controls
1. Splitter Cylinder Control Valve Lever
2. Splitter Circuit Hydraulic Pressure Gauge
3. Saw Control Valve Lever
4. Splitter Wedge Height Control Lever
5. Infeed Conveyor Control Lever
6. Live Deck Feed Control Lever
7. Log Lifter Shelf Control Lever (optional)
8. Chain Saw Circuit Hydraulic Pressure Gauge
9. Top Roller Clamp Handle
10. Tachometer / Hour Meter
1. Splitter Cylinder Control Valve Lever
This lever controls the splitter.
• Push the lever forward away from the
operator to extend the splitter cylinder.
Pull it back to retract.
• Pull the lever back fully to the detent
to auto-retract. The lever kicks out to
the neutral when the cylinder is fully
retracted.
2. Splitter Circuit Hydraulic Pressure Gauge
This gauge indicates the splitter cylinder
circuit operating pressure.
3. Saw Control Valve Lever
This lever controls the saw to cut logs.
• Push the lever forward away from
the operator to raise/stop the saw.
• Pull the lever back to lower the saw
and cut the log.
The Top Roller Clamp clamps down on
the log to hold it as the cut is made.
Saw performance is maximized with P3
integrated electronic controller.
