Firewood Processor
Controls
25
4.3 Operator's Platform / Seat
(If equipped)
An operator's seat and platform is available as an add-on
accessory for the wood processor. It provides an adjustable
seated work area for the operator.
00317
1
2

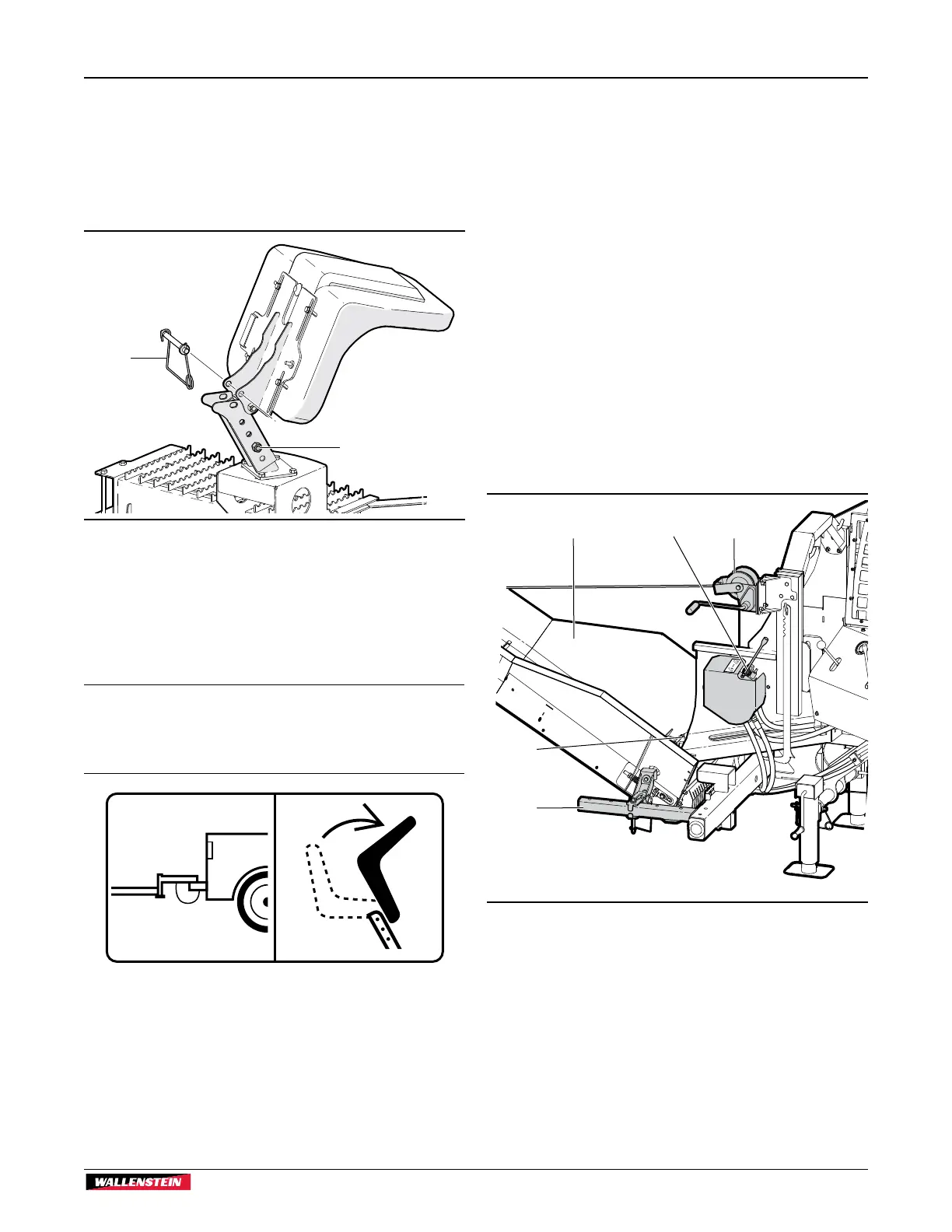

Fig. 6 – Operator's Seat
1. Height Adjuster Bolt
2. Snap Lock Pin
Adjust Seat Height
• Remove the height adjuster bolt, set the desired the height
and reinsert the bolt.
IMPORTANT! When transporting the wood processor on a
roadway, or when the seat is not in use, pull the snap lock
pin and lean the seat over. Reinsert the pin to secure it
there.
4.4 Integrated Conveyor
(If equipped)
Accessory conveyors are available for the wood processor in
8 ft (2.4 m) and 12 ft (3.6 m) lengths. The conveyor is pinned
to the rear of the wood processor and provides a 50° swing
angle to stack split wood.
A hydraulic control valve powers the conveyor, and height is
adjusted with a hand winch. The conveyor angle is changed by
pulling the snap lock pin and pushing the conveyor to one side
or the other.
• Push the valve lever into the detent to activate the conveyor.
The conveyor chain operates at one speed.
• If the conveyor becomes jammed, it is possible to run the
chain backwards for SHORT periods of time only to clear
it. To do that, hold the wedge height lever all the way down.
At the same time, move the conveyor control lever in the
opposite direction from the detent.
4
5
21 3
00357
Fig. 7 – Conveyor Controls
1. Conveyor Hopper
2. Hydraulic Control Valve
3. Hand Winch
4. Conveyor Angle Guide and Snap Lock Pin
5. Conveyor Pivot
