WP1624
Firewood Processor
Machine Set-up
27

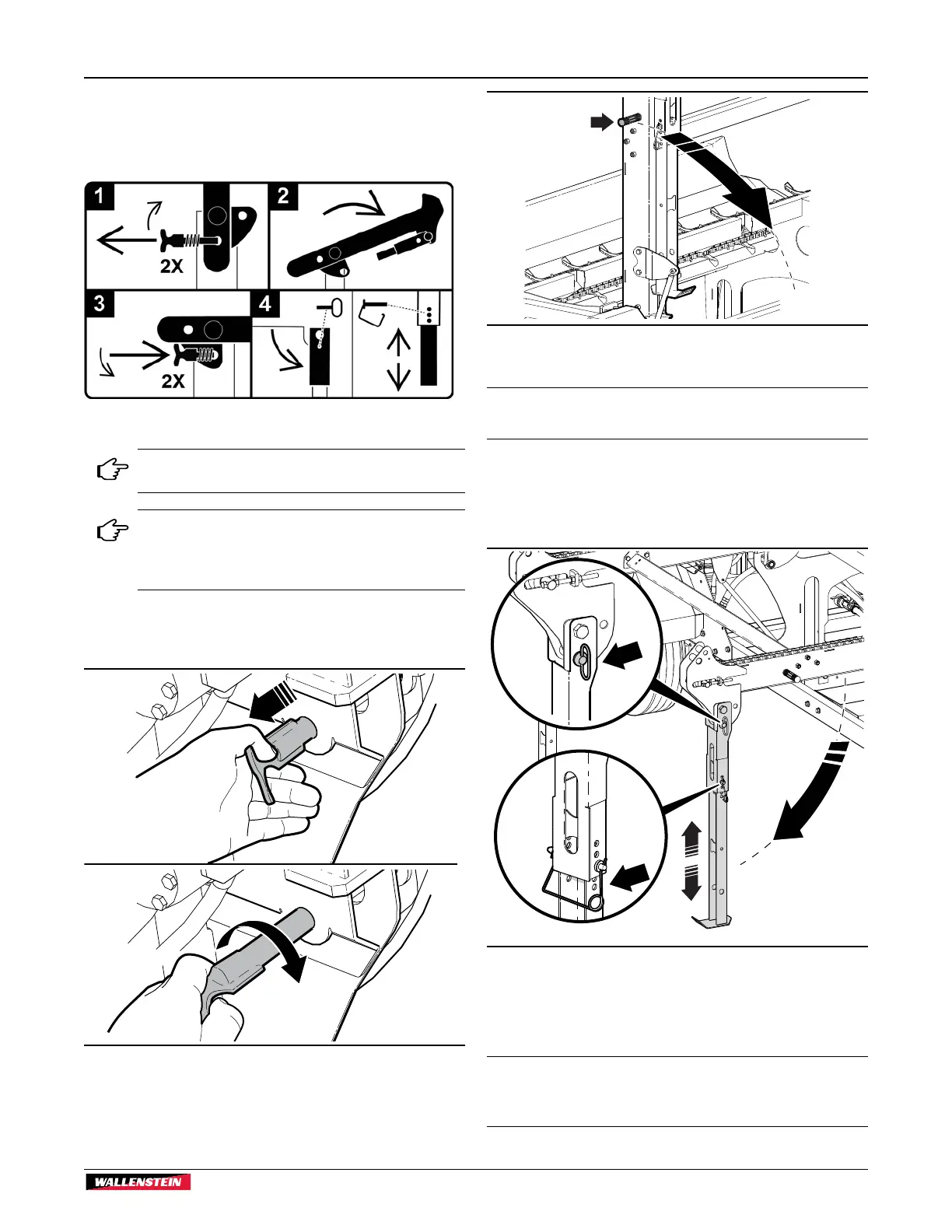

5.2 Live Deck, Lowering
When not equipped with the Log Lifter option, the live deck must
be lowered by hand.
Live deck folding force is less than 50 lb (23 kg).
If equipped with the Log Lifter Shelf option, the
deck is raised and lowered using hydraulic power.
See Lowering Live Deck with Log Lifter on page
28.
Procedure:
1. Pull and lock out pins on both sides of the live deck.
00383
Fig. 14 – Live Deck Locking Pins
2. Pull the live deck down using the handles on the sides.
00384
Fig. 15 – Live Deck Handles
3. Pull, turn and reinsert the deck pins to lock it in position.
IMPORTANT! The live deck locking pins must be pinned in
place to prevent the live deck from moving during operation.
Support Legs
4. Remove the hitch pins and swing both support legs under
the live deck. Reinsert the hitch pins.
00295
Fig. 16 – Live Deck Support Legs
5. Remove the snap lock pins and adjust leg height so the
deck is properly supported. Try to get the deck as level as
possible. Reinsert the pin.
IMPORTANT! Live Deck Support Legs must be pinned in
place under the deck during operation. Place blocking under
legs if required to keep deck level and on a solid footing.
