WP1624
Firewood Processor
Service and Maintenance
59

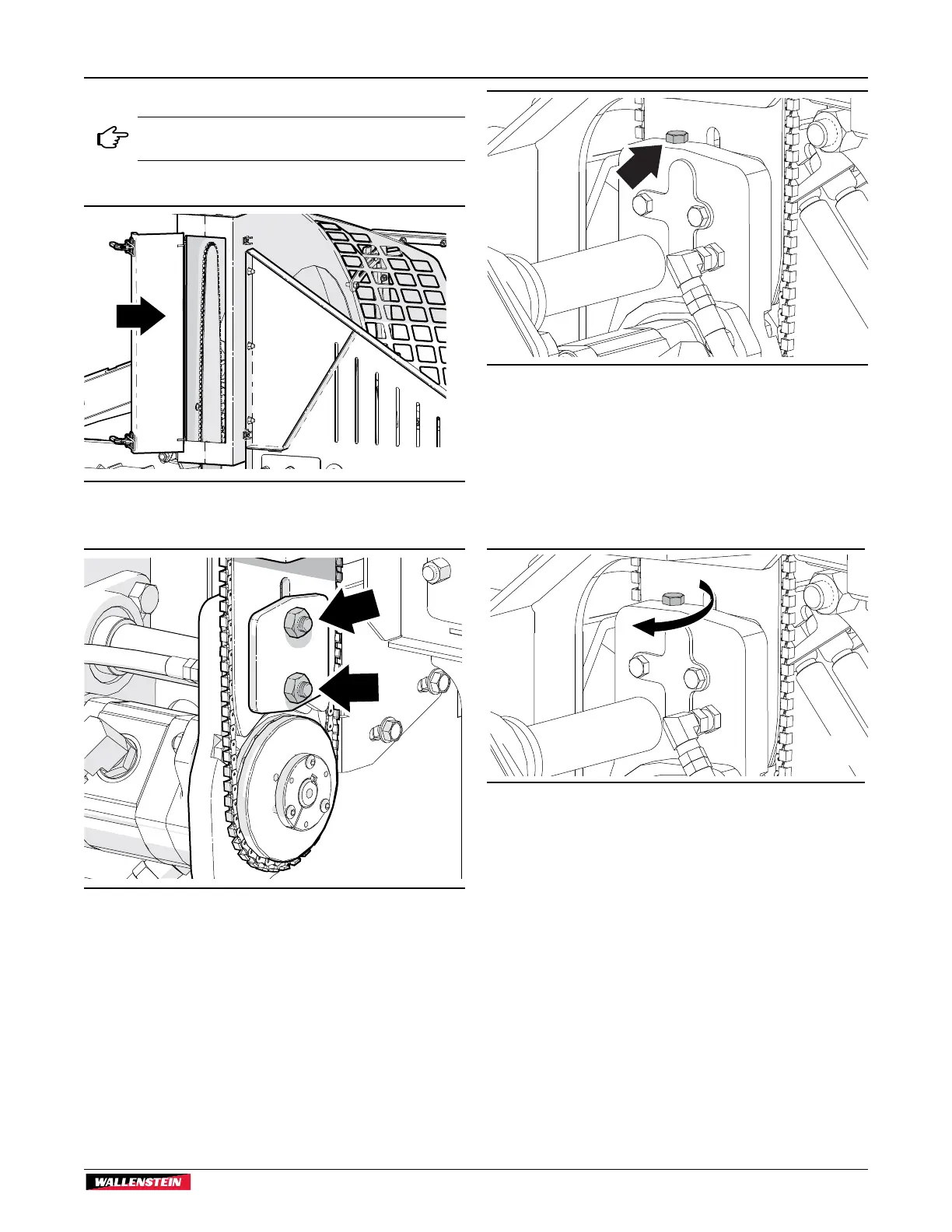

8.9.2 Saw Chain, Remove / Replace
A tool is provided in the toolbox for the bar nuts
and bar chain tensioner.
1. Open the saw access door.
00369
Fig. 91 – Saw Access Door
2. Loosen off bar nuts.
00410
Fig. 92 – Bar Nuts
3. Turn adjusting screw counter-clockwise to loosen chain so
it can then be removed.
01060
Fig. 93 – Adjusting Screw
To reinstall the bar chain, reverse the procedure. Tension bar
chain as described.
8.9.3 Saw Chain, Tensioning
1. Turn the adjusting screw clockwise to tighten the chain.
Turn it counter-clockwise to loosen.
01061
Fig. 94 – Turn Adjusting Screw Clockwise to Increase Chain Tension
2. Grasp the chain at the mid point of the guide bar and pull
the saw chain away from the bar rails. For hard nose guide
bars, the drive link tangs should nearly come out of the bar
groove.
