44 2599430000/00/04.2019
Loading Material
4 Loading Material
4.1 Loading Media from Roll
5
7
8
6
2
1
3
4

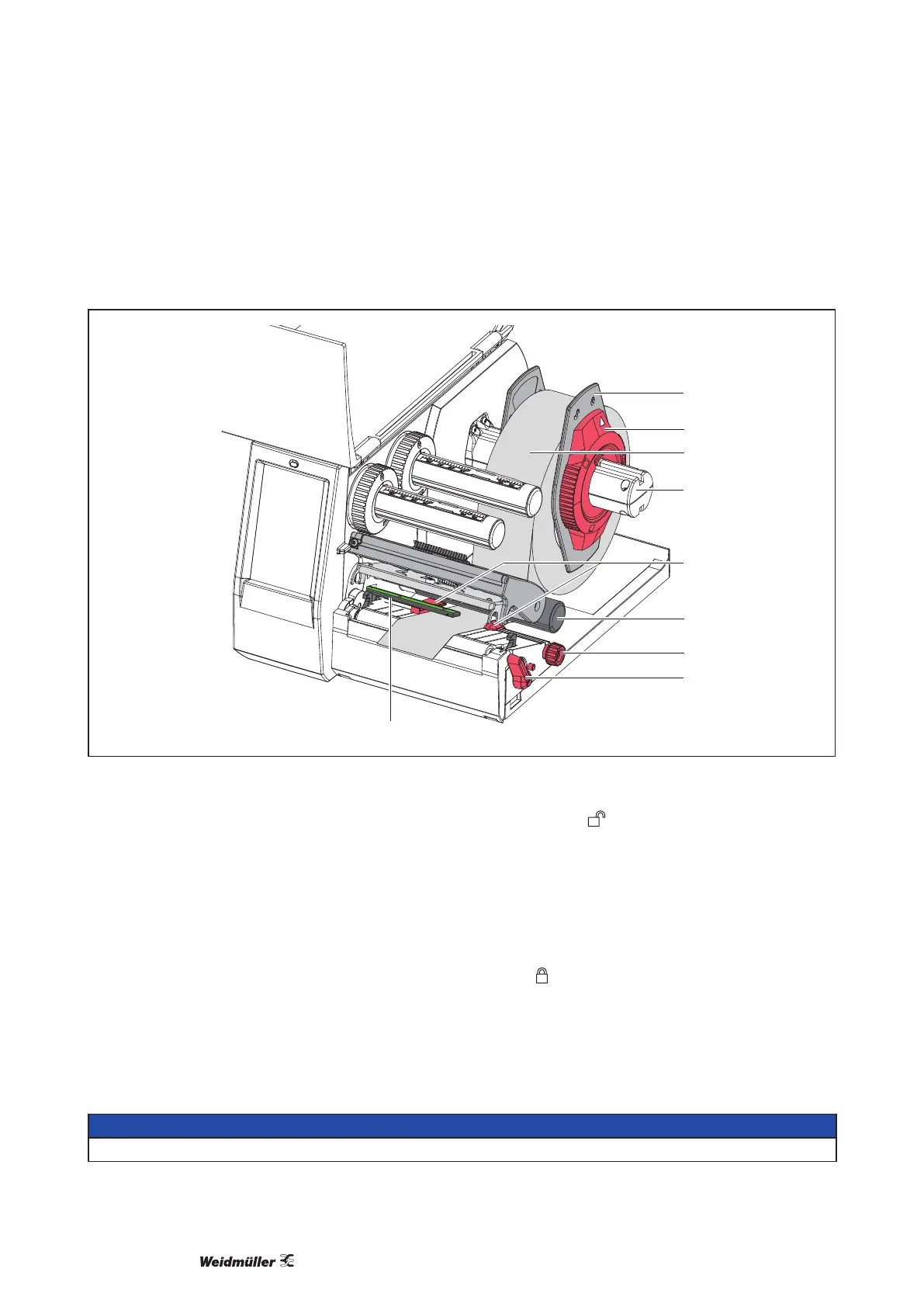

Figure 9 Loading Media from Roll
f Turn ring (2) counterclockwise, so that the arrow points to the symbol , and thus release the margin
stop (1).
f Remove the margin stop (1) from the roll retainer (4).
f Load label roll (3) on the roll retainer in such a way that the labels can be inserted into the printhead in the
right position. The printing side of the labels must be visible from above.
f Re-mount the margin stop (1) onto the roll retainer (4). Push the margin stop (1) to the roll (3) until the roll
touches both margin stops and a clear resistance is encountered.
f Turn ring (2) clockwise, so that the arrow points to the symbol ,andthusxthemarginstop(1)onthe
roll retainer (3).
f Turn lever (8) counterclockwise to open printhead.
f Position guides (5) by turning the knob (7) so that they are several millimeters wider than the material.
f Position material below the roller (6) and guide it through the print unit.
ATTENTION!
Guide material through the print unit below the label sensor (9).
