Cleaning
6 Cleaning
6.1 Cleaning Information
DANGER!
Risk of death via electric shock!
Disconnect the printer from the power
supply before performing any mainte-
nance work.
The label printer requires very little maintenance.
It is important to clean the thermal printhead regu-
larly. This guarantees a consistently good printed im-
age and plays a major part in preventing premature
wear of the printhead.
Otherwise, the maintenance is limited to monthly
cleaning of the device.
ATTENTION!
The printer can be damaged by aggressive cleans-
ers.
Do not use abrasive cleaners or solvents for clean-
ing the external surfaces or modules.
f Removedustandpaperu󰀨fromtheprintarea
with a soft brush or vacuum cleaner.
f The cover of the printer can be cleaned with a
standard cleanser.
6.2 Cleaning the Print Roller
Accumulations of dirt on the print roller may impair
the media transport and the print quality.
ATTENTION!
Damage of the print roller.
• Do not use sharp objects (knives, screwdrivers,
etc.) to clean the print roller.
4
31 12

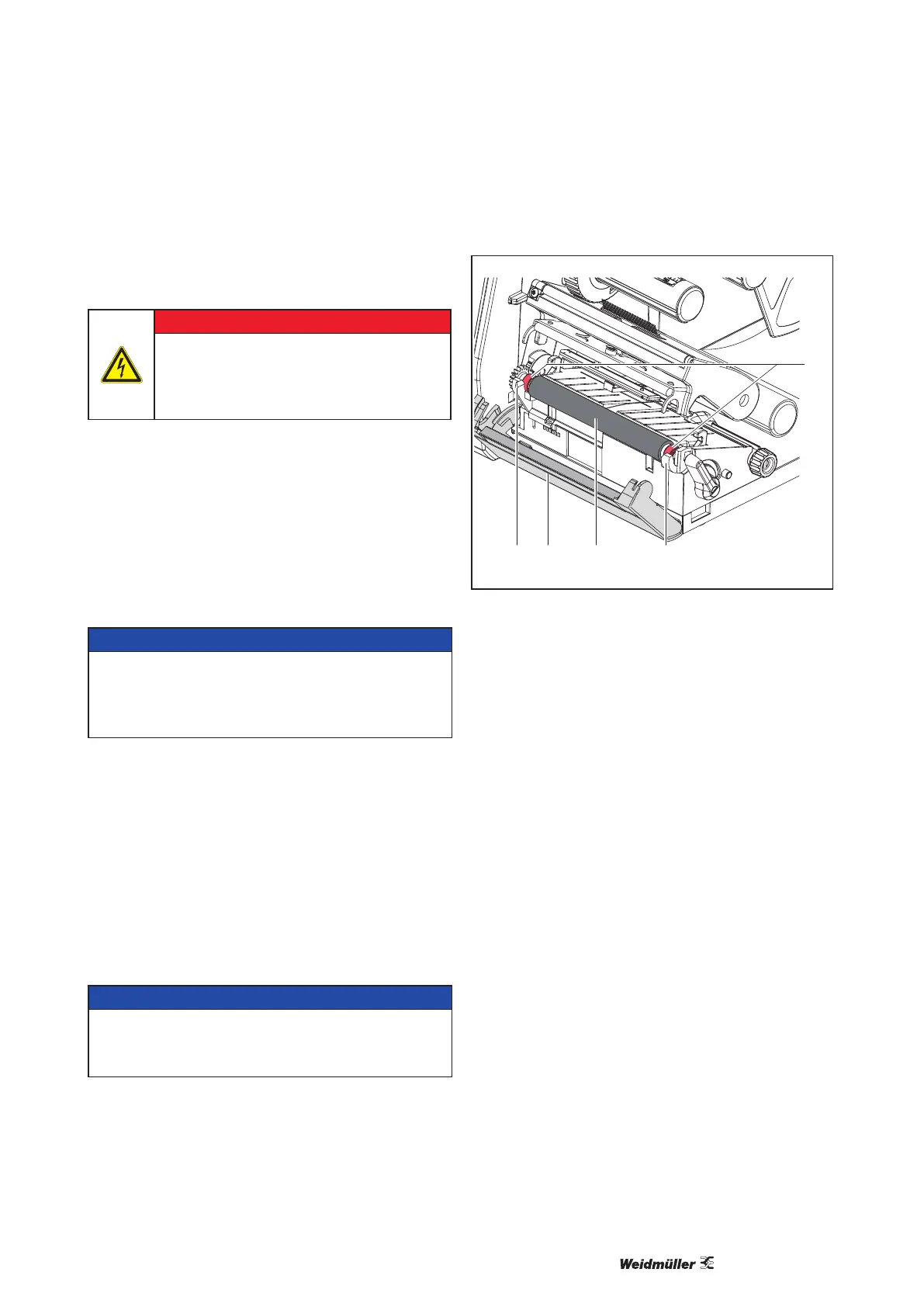

Figure 15 Print roller
f Open the printhead.
f Remove material and transfer ribbon from the
printer.
f Folddownthetear-o󰀨plate(2).
f Lift the print roller (3) from its retainers (1).
f Remove deposits with roller cleaner and a soft
cloth, or replace it if the roller appears damaged.
f Push roller with bearings (4) into the retainers (1)
until they click into place.
f Foldupthetear-o󰀨plate(2).
6.3 Cleaning the Printhead
Cleaning intervals:
direct thermal printing - every media roll change
thermal transfer printing - every ribbon roll change
Substances may accumulate on the printhead during
printingandadverselya󰀨ectprinting,e.g.di󰀨erences
in contrast or vertical stripes.
