Loading Material
4.3 Loading transfer ribbon
With direct thermal printing, do not load a
transfer ribbon; if one has already been
loaded, remove it.
C
A
B
1

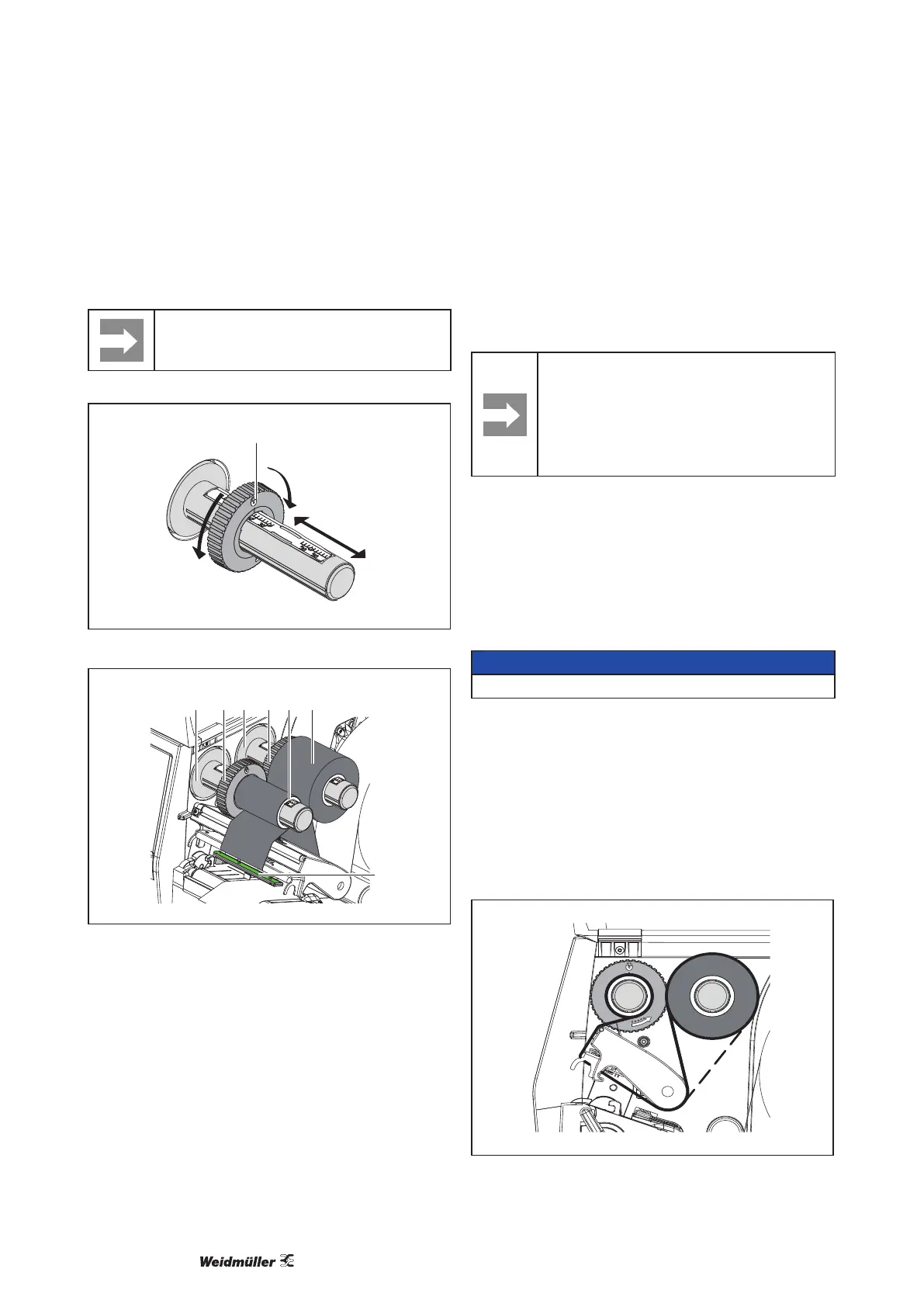

Figure 11 Guide Adjustment
6
Figure 12 Loading Transfer Ribbon
f Clean printhead before loading the transfer ribbon
(→„6.3 Cleaning the Printhead“ on page 49).
f Open the printhead.
f Set guide (1) on the ribbon supply hub to the
correct transfer ribbon width („Figure 11 Guide
Adjustment“):
• Hold the hub and unlock the guide (1) by turning
it in direction A.
• Slide the guide in direction B and adjust the guide
to the ribbon width using the scale.
• Hold the hub and lock the guide by turning it in
direction C.
f Slide transfer ribbon roll (5) onto the ribbon sup-
ply hub (3) until it reaches the guide (1) so that
the color coating of the ribbon faces downward
when being unwound.
To rewind the ribbon a ribbon core (4)
is needed that must be at least equal in
width to the supply ribbon.
• When changing the transfer ribbon
use the empty supply ribbon core for
winding the next ribbon.
f Adjust the position of the guide on the take-up
hub to the width of the ribbon core (4) and push
ribbon core on the take-up hub (2).
f Guide the transfer ribbon though the printing
unit as shown in „Figure 13 Transfer ribbon feed
path“.
ATTENTION!
Guide transfer ribbon over the label sensor (6).
f Secure starting end of transfer ribbon to the
transfer ribbon core (4) with adhesive tape. En-
sure counterclockwise rotation direction of the
transfer ribbon take-up hub here.
f Turn transfer ribbon take-up hub (2) counterclock-
wise to smooth out the feed path of the transfer
ribbon.
f Close the printhead.
