Weidmüller THM MultiMark - Adjusting Transfer Ribbon Feed Path

472599430000/00/04.2019
Loading Material
4.4 Setting the Feed Path of the Transfer Ribbon
Transferribbonwrinklingcanleadtoprintimageerrors.Thetransferribbondeection(2)canbeadjustedso
as to prevent wrinkles.
1 2

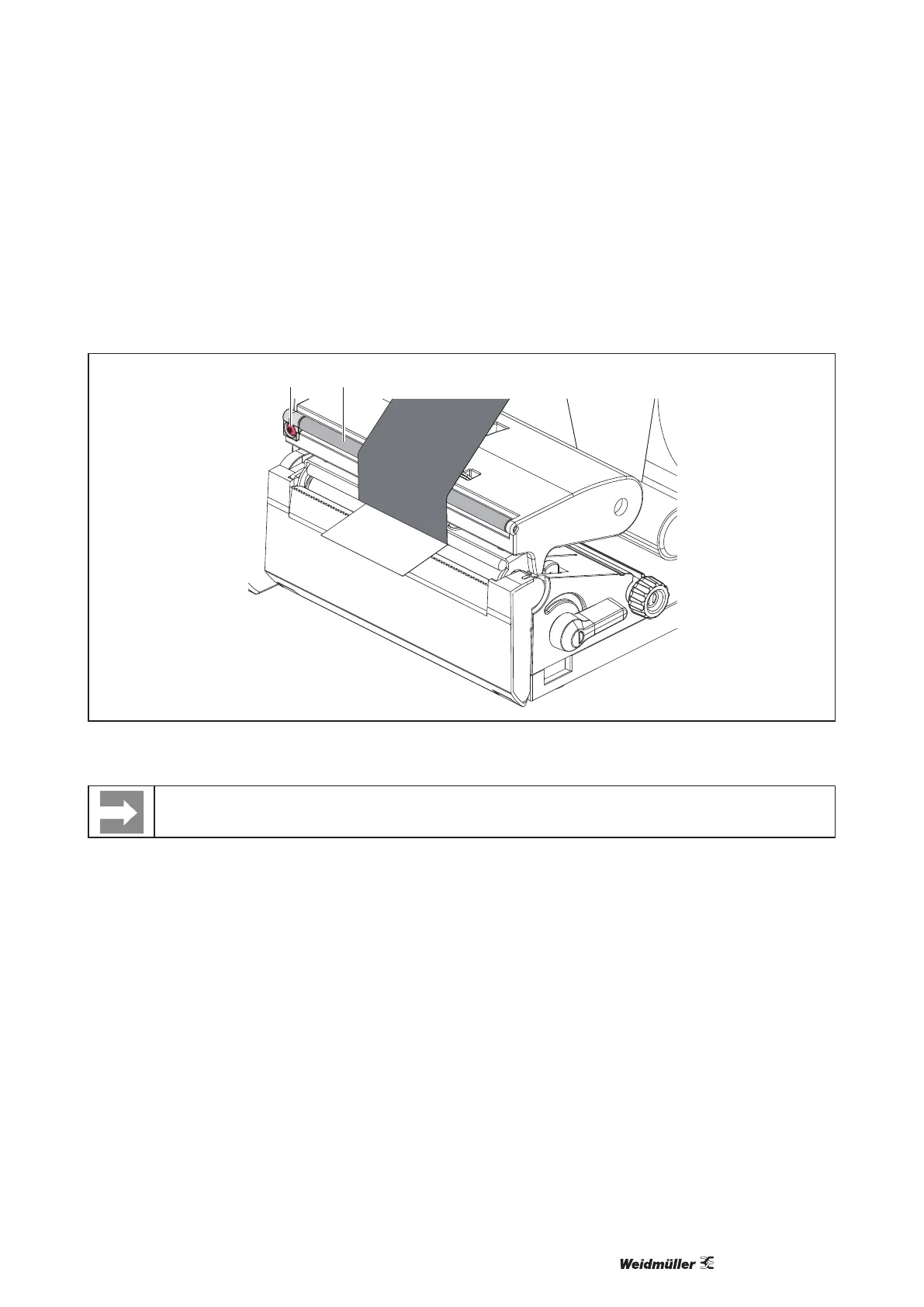

Figure 14 Setting the feed path of the transfer ribbon
The adjustment is best carried out during printing.
Turn screw (1) with torx wrench TX10 and observe the behavior of the ribbon.
• By turning it clockwise the outer edge of the transfer ribbon is tightened.
• By turning it counterclockwise the inner edge of the transfer ribbon is tightened.
