5.1 Cutter/Perforation Cutter
The cutting/perforation blade is not included in delivery. It must be mounted to the printer during the initial
commissioning process.
1
4
5
1
3
2

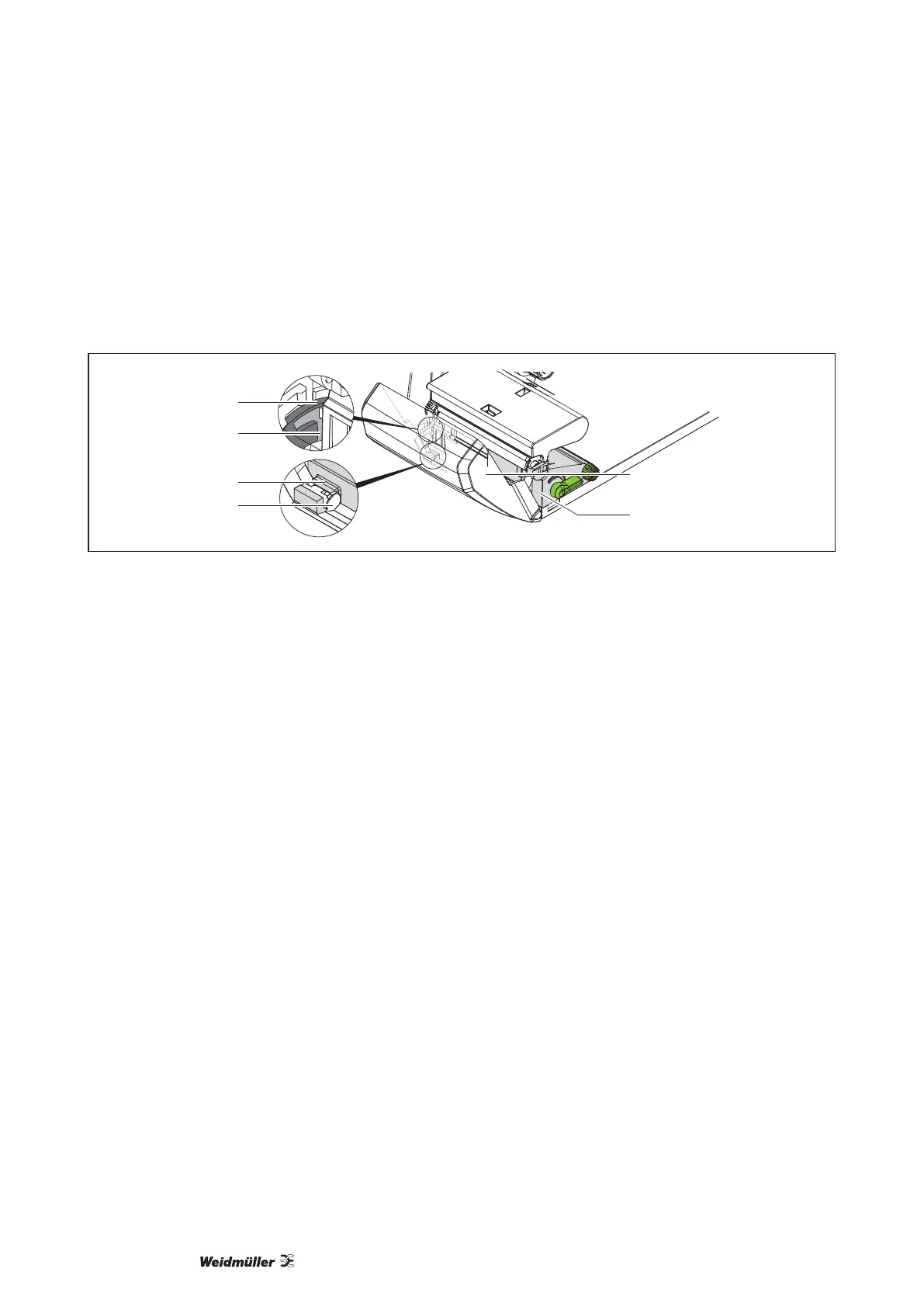

Fig. 13 Mount Cutter or Perforation Cutter
1 Put snap arm (5) of the cutter with the groove (4) rst into the guide on the retainer (2).
2 Push cutter (1) down into the holders (3).
3 Fold up cutter (1) so that is snaps it at both sides of the retainer (2).
