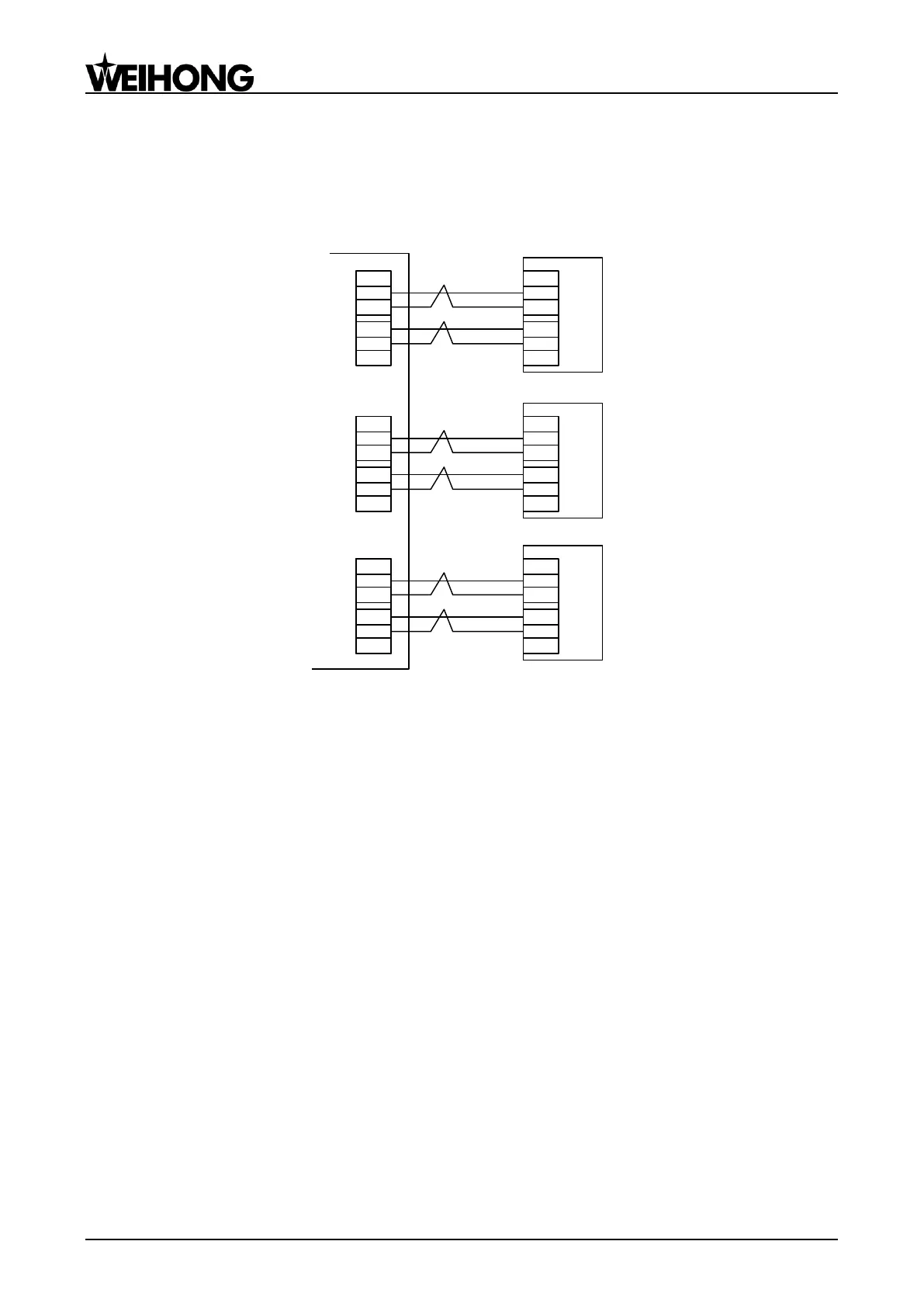

5.5.1.2 Wiring With Differential Input Stepping Driver
It is strongly recommended to connect Lambda 3S/3L series with differential input stepping driver
following the connection method below, for this connection method can reduce interference effectively.
Z-axis Stepping Driver
D+
D-
P-
ZD+
ZP+
ZD-
ZP-
+5V
Y-axis Stepping Driver
+CO
M
DIR
CP
(OPTO)
YD-
YP-
YD+
YP+
+5V
X-axis Stepping Driver
+CO
M
DIR
CP
(OPTO)
ZD-
ZP-
ZD+
ZP+
+5V
Lambda 3S/3L Series
P+
D+
D-
P-
YD+
YP+
YD-
YP-
+5V
P+
D+
D-
P-
XD+
XP+
XD-
XP-
+5V
P+
Note: twisted pair
for differential
signals
