Specialized, Concentrated, Focused - 5 -
 Fewer cables and easier wiring;
 On-line update of hardware, dismounting avoided;
 Hardware adaptable, software customizable;
 Hardware encryption and software encryption for safety concerns;
 Encoder feedback available;
 2 to 5 axes motion control.
See Fig. 1-6 for the dimensional drawing of Lambda 5S controller, whose dimension is the same as
that of Lambda 4S controller.

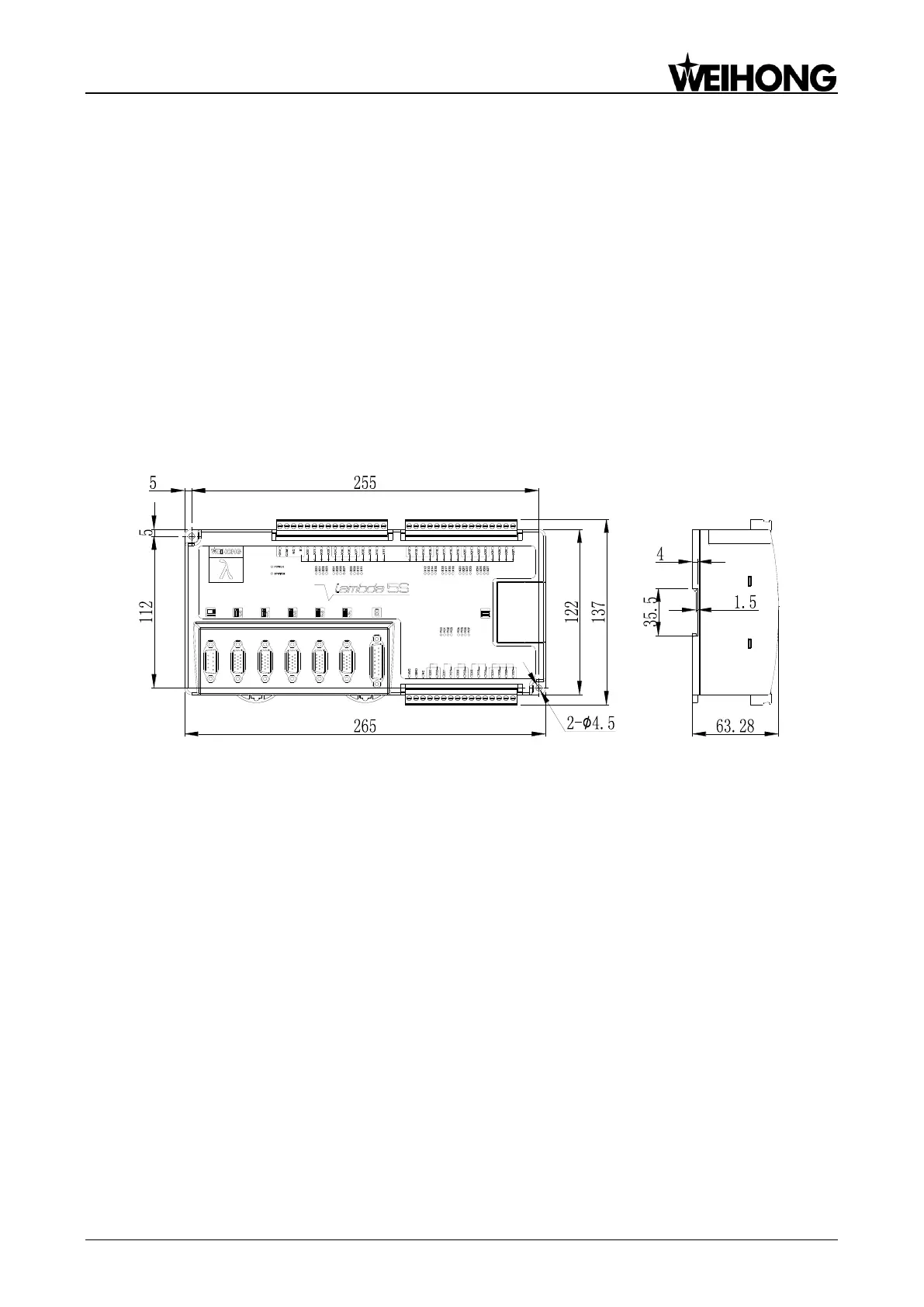

Fig. 1-6 Dimensional drawing of Lambda 5S controller
1.5 System Running Status Description
The system indicator lamp of PM85A/95A is SYS_OK, while that of Lambda series controller is
SYSTEM. Their flash frequency is used to tell whether the system communication is normal, as follows:
 When the machine tool is in idle status, the flash frequency is 0.33Hz (flashing once every 3
seconds);
 When the communication is normal, the flash frequency is 2Hz (flashing twice every 1 second);
 When the system is abnormal, the flash frequency is 10Hz (flashing 10 times every 1 second);
 When hardware exception occurs, such as under voltage, hardware damage, pseudo soldering,
and short circuit, the system indicator lamp is always on or off.
