上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 30 - Specialized, Concentrated, Focused
Currently, five axes waterjet cutting software includes two configurations— StandA with 2Y
configuration and StdA configuration, both used for controlling AB-type machine tools.
StadA with 2Y Configuration
Open the cover and connect extended
terminal board EX31A1
Cycle Start
Cycle Stop
Pause
Feed+
ESTOP
Feed-
Set Z Workpiece Origin
Water Pump ON
Oil Pump OFF
Oil Pump ON
High Pressure OFF
X Axis REF. Point
+X Limit
-X Limit
Y Axis REF. Point
+Y Limit
-Y Limit
-Z Limit
-A Limit
A Axis REF. Point (+A Limit)
+24V Power
Active High/Low
To connect
NC65A/65B
PM85A/95A
To connect
X-axis driver
To connect
Y-axis driver
To connect
Z-axis driver
To connect
MPG
Lube Oil
Green
Red
Common
Common
Common
Common
Common
Analog Output
To connect
A-axis driver
Z-axis Brake
Z Axis REF. Point (+Z Limit)
Water Pump OFF
Z-axis Brake
To connect
B-axis driver
B Axis REF. Point (-B Limit)
+B Limit
Y2 Axis REF. Point
Water Valve
Water Pump
Yellow

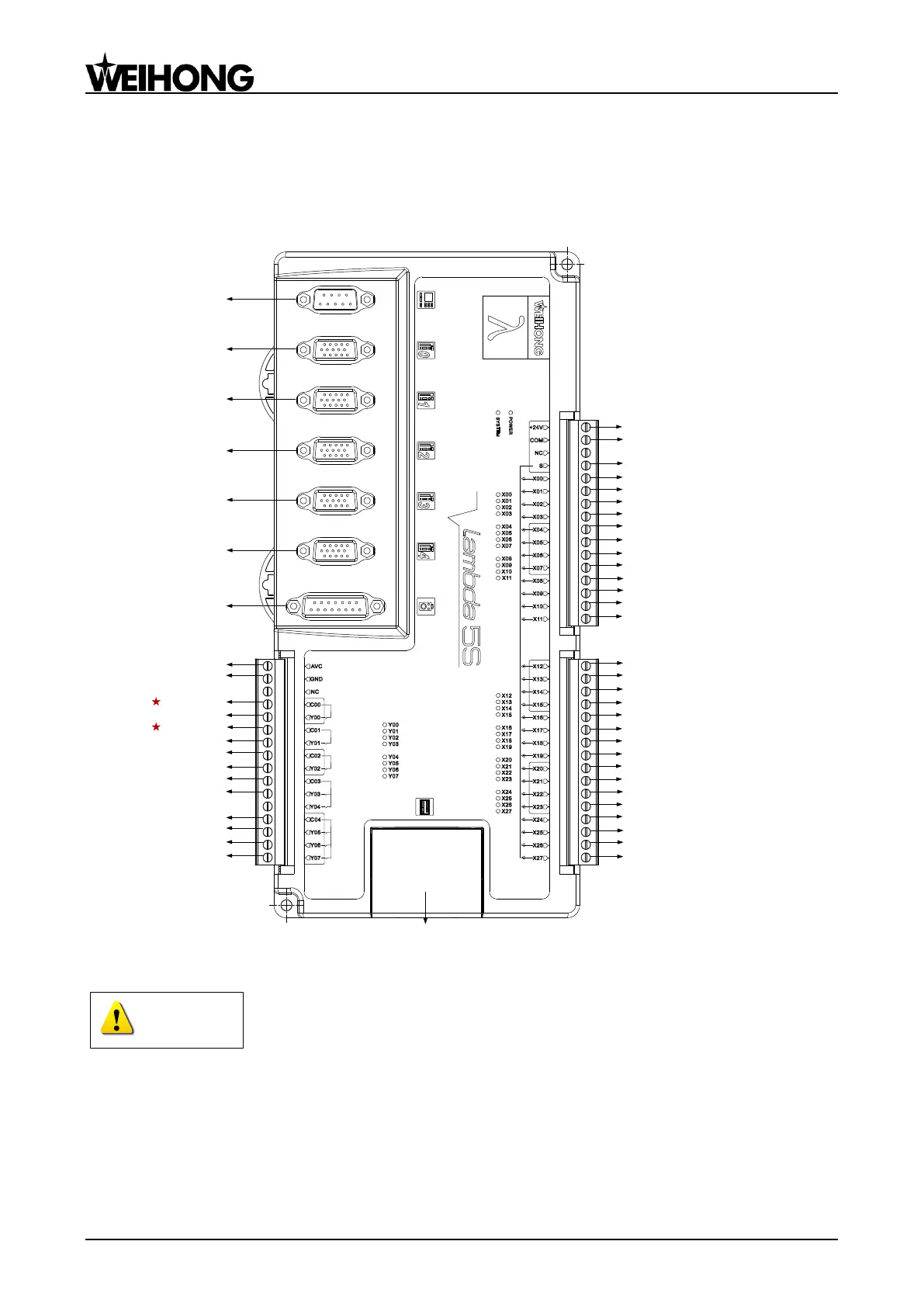

Fig. 2-21 Connection according to StadA with 2Y configuration
1) The REF. point and positive limit of Z axis share the same port, so do the REF. point and positive limit of A
axis, while the REF. point and negative limit of B axis share the same port.
2) The wiring according to StadA configuration is the same as that according to StadA with 2Y configuration,
except that the input port X14 is reserved for use instead of being defined as the Y2-axis REF. point. The Y2
axis in dual Y configuration is controlled by pulses.
