WEIHONG Lambda 5S Series User Manual

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 34 - Specialized, Concentrated, Focused
2.2.5 Dual Z Axes
When used together with dual Z axes software, Lambda 4S controller should be wired according to
Fig. 2-25.
Ice Machine Fault Alarm
Spindle Pressure Low Alarm
Tool Meas. Over-travel Protection
Oil Pump Detection Alarm
X Axis REF. Point
+X Limit
-X Limit
Y Axis REF. Point
+Y Limit
-Y Limit
+Z1 Limit
-Z1 Limit
Z1 Axis REF. Point
Cycle Start
Cycle Stop
Z1 Axis Tool Sensor
Z2 Axis Tool Sensor
Oil Level Detection
Spindle 1 Alarm
Spindle 2 Alarm
ESTOP
+24V Power
Active High/Low
+Z2 Limit
-Z2 Limit
Z2 Axis REF. Point
General Input
General Input
Z1-axis Brake
Z2-axis Brake
Open the cover and connect extended
terminal board EX27A3
Z1-axis Brake
Z2-axis Brake
Spindle 1 ON
Spindle 1 Cool
Work 1 Cool
Spindle 2 ON
Spindle 2 Cool
Work 2 Cool
Common
Common
Common
Common
Common
Analog Output
To connect
NC65A/65B
PM85A/95A
To connect
X-axis driver
To connect
Y-axis driver
To connect
Z1-axis driver
To connect
Z2-axis driver
To connect
MPG

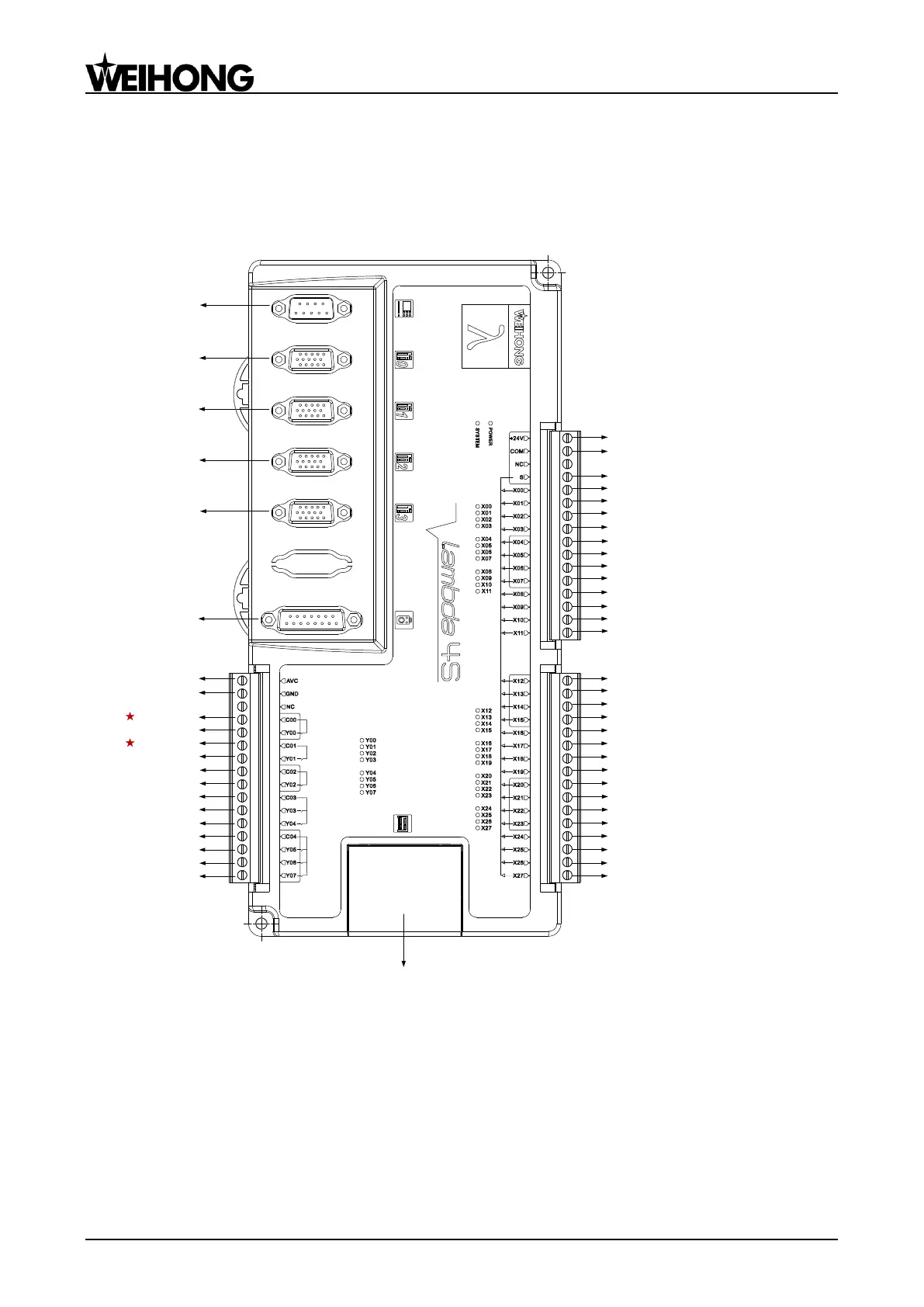

Fig. 2-25 Connection according to dual Z axes software
