5.3.4 Samples of Electronic Gear Setting
 Sample One
As screw pitch= 6mm (the screw travels 6mm per revolution of bearing axle), ―2048‖ (2
13
/2
2
) pulses
will be generated per revolution of servo motor with 13-bit incremental encoder.
Command unit= 0.001mm (the screw moves 0.001mm per pulse generated by the system)
Amount of movement per revolution of bearing axle= 6mm/0.001mm=6000
Bearing Axle
Worktable or Tool Rest
Screw
Servo Motor
Encoder
Coupling reduction
ratio 1:1
Ball Screw

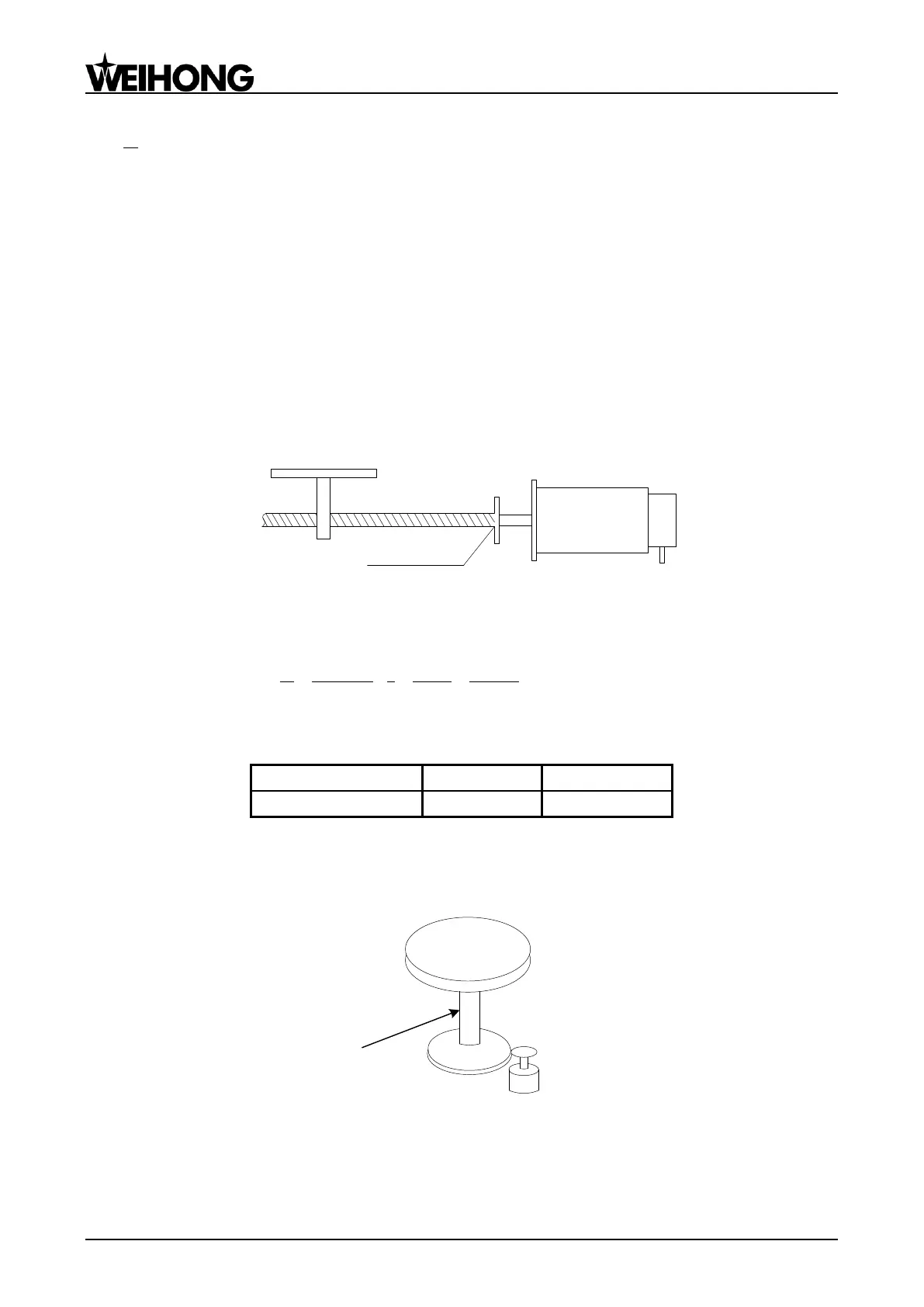

Fig. 5-9 Servo motor and screw sharing same axle (without reduction gearbox)
Servo motor and screw are sharing the same axle (without reduction gearbox), and one revolution
of motor will lead to one rotation of screw.
Pn203
Pn202
6000
8192
1
1
6000
42048
A
B
Ratio Gear Electronic 


(Note: for YASKAWA servo, ―4‖ should be multiplied by the numerator.)
Table 1 Parameters setting value
Parameter
PN202
PN203
Setting Value
8192
6000
 Sample Two
Command unit: 0.1°
Deceleration ratio 3:1
Bearing axle
13-bit incremental encoder
Round Table
Fig. 5-10 Sample of round table
Pulses generated per revolution of motor=2
13
/2
2
=2048
