WEIHONG Lambda 5S Series User Manual

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 28 - Specialized, Concentrated, Focused
 XY1ZCY2 Configuration
Open the cover and connect extended
terminal board EX31A1
Cycle Start
Cycle Stop
Pause
Feed-
ESTOP
Auto Reverse
Feed+
Oil Level Detection Alarm
High Pressure Detection Alarm
X+
X-
X Axis REF. Point
+X Limit
-X Limit
Y1 Axis REF. Point
+Y1 Limit
-Y1 Limit
-Z Limit
-C Limit
C Axis REF. Point
+24V Power
Active High/Low
To connect
NC65A/65B
PM85A/95A
To connect
X-axis driver
To connect
Y1-axis driver
To connect
Z-axis driver
To connect
MPG
Lube Oil
Green
Red
Common
Common
Common
Common
Common
Analog Output
+Z Limit
+C Limit
To connect
C-axis driver
Z-axis Brake
Z Axis REF. Point
Set Z Workpiece Origin
Z-axis Brake
To connect
Y2-axis driver
Y2 Axis REF. Point
+Y2 Limit
-Y2 Limit

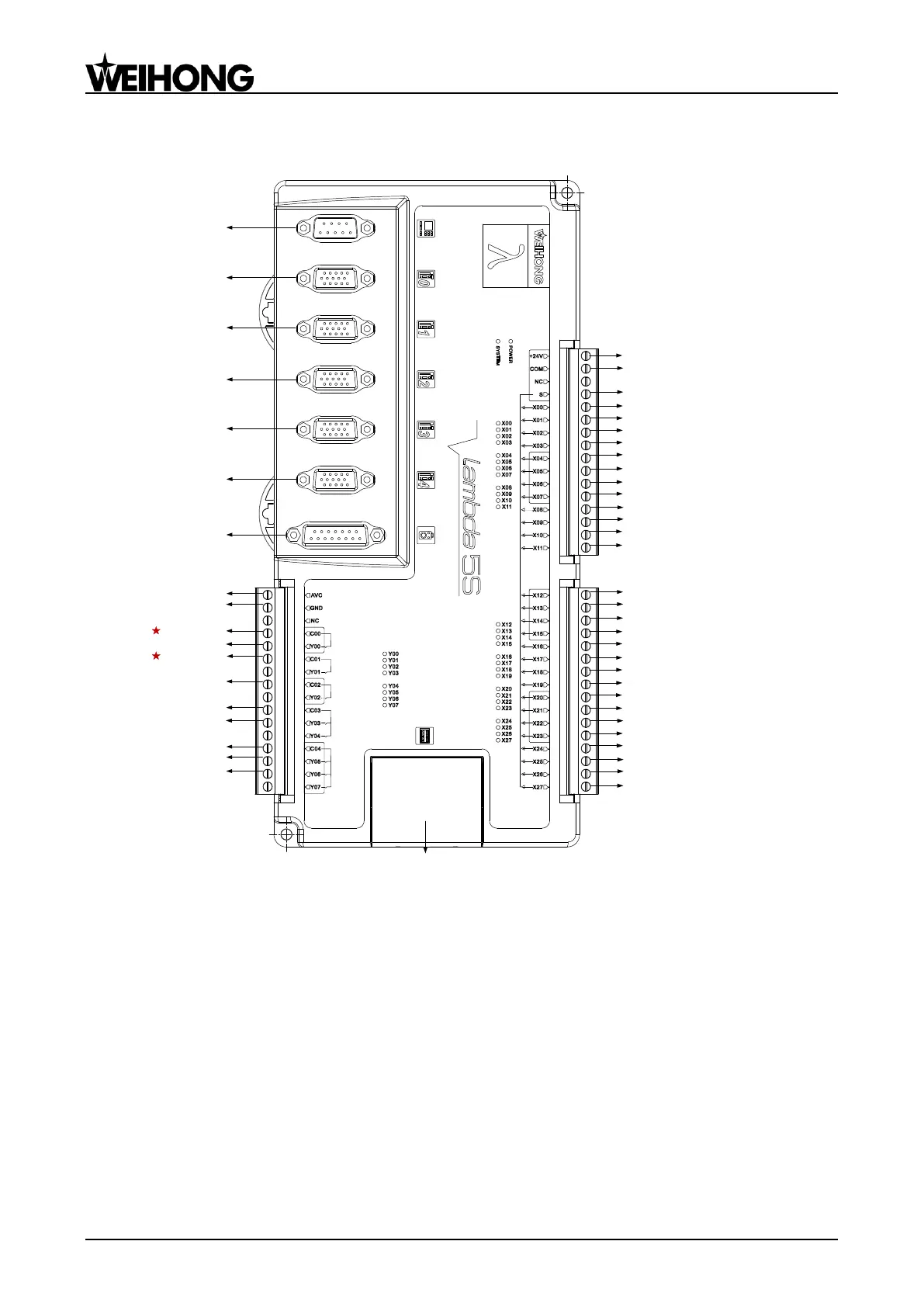

Fig. 2-19 Connection according to XY1ZCY2 configuration
