Extended terminal board EX27A3 (118mm*83mm*56.45mm) is required in dual Z axes, with wiring
diagram as shown in Fig. 2-26.
To connect Lambda 4S controller
+24V Power
General Input
General Input
General Input
Active High/Low
General Input
General Input
General Input
General Input
General Input
Active High/Low
General Output
General Output
Illumination
Common
Common
Common
Common
Lube Oil
Draining Pump
Red
Green
Tool Meas. Blow
EX27A
Y06
C02
Y02
Y01
Y00
Y03
Y04
Y05
Y07
C00
C01
C03
Y07
Y06Y05Y04Y03Y02Y01Y00
X07
X06
X05
X04
X00
X01
X02
X03
POWER
X03
X02
X01
X00
S00
+24V
X04
X05
X06
X07
S01
C0M
Y06
C02
Y02
Y01
Y00
Y03
Y04
Y05
Y07
C00
C01
C03

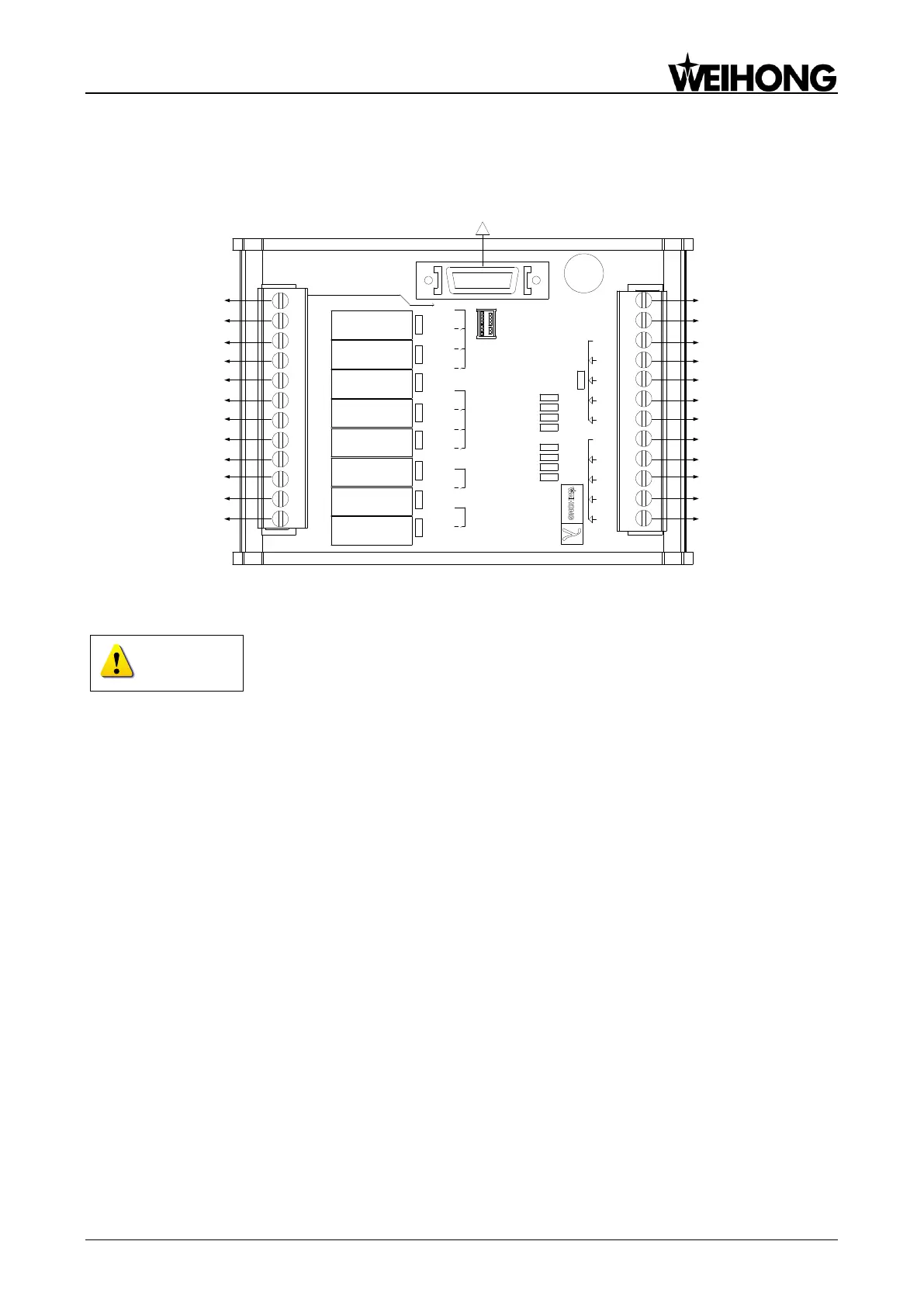

Fig. 2-26 Wiring of EX27A3 in dual Z axes
CAUTION
Dual Z axes software for general purpose includes two configurations — Z1Z2 configuration and turn
configuration (alternative configuration), whose wirings are totally the same.
