WEIHONG Lambda 5S Series User Manual

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
Specialized, Concentrated, Focused - 11 -
 Three Axes Engraving and Milling
To connect
NC65A/65B
PM85A/95A
To connect
X-axis driver
To connect
Y-axis driver
To connect
Z-axis driver
To connect
MPG
General Inputs
Analog Output
+24V Power
Coolant
Lube Oil
Yellow
Common
Green
Red
Common
Illumination
Common
Spindle ON
Common
Z-axis Brake
Common
General Input
Z-axis Brake
ESTOP
General Input
Spindle Alarm
General Input
Tool Sensor Signal
Oil Level Detection
Cycle Stop
Cycle Start
General Input
General Input
Oil Pump Detection Alarm
-Z Limit
+Z Limit
Z Axis REF. Point
-Y Limit
+Y Limit
Y Axis REF. Point
-X Limit
+X Limit
X Axis REF. Point
Active High/Low

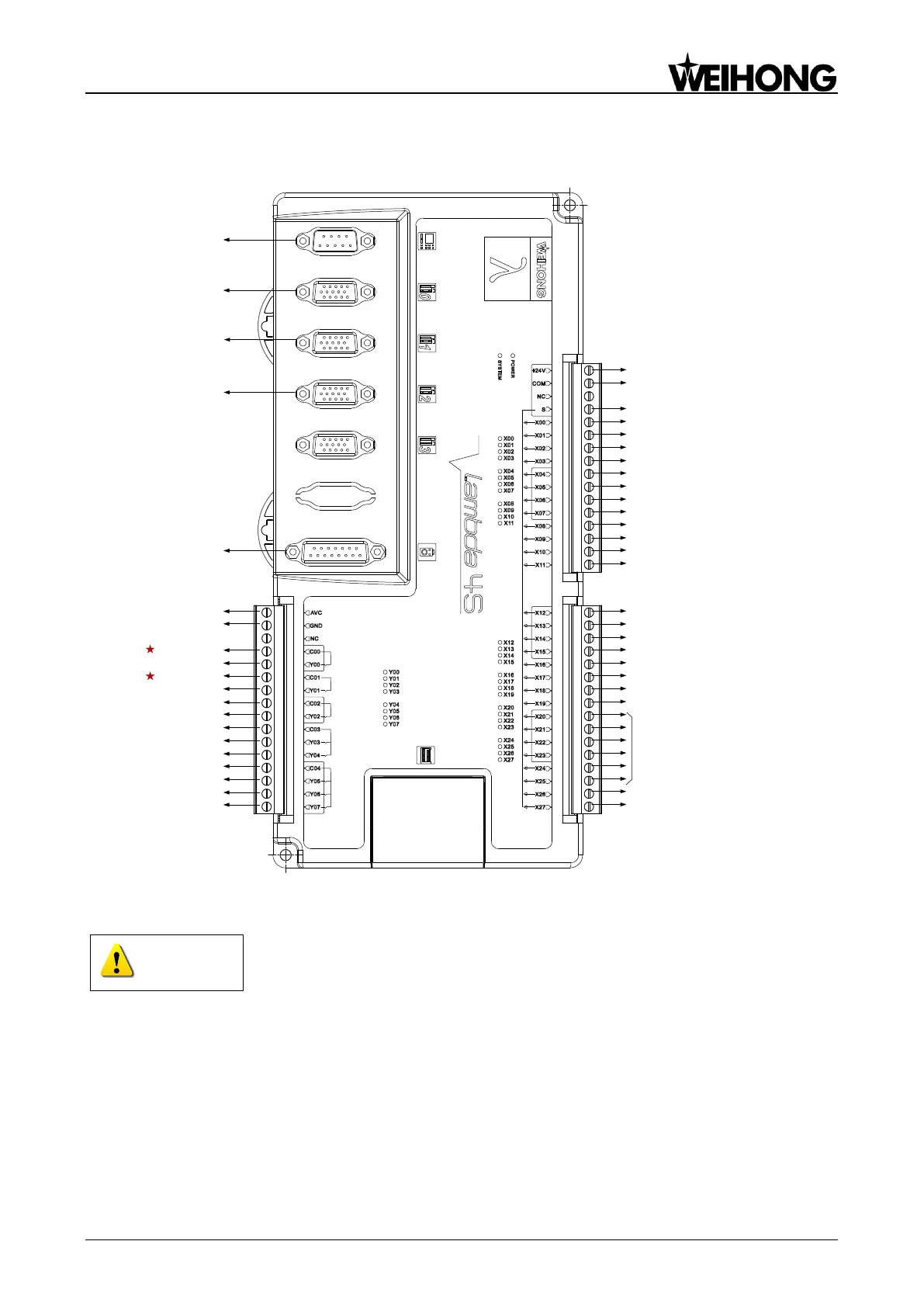

Fig. 2-2 Connection according to three axes engraving and milling software
CAUTION
1) The above wiring diagram is provided according to software NcStudio V8; for NcStudio V10 software, IO
definitions are the same as those of NcStudio V8, except that Y05 is defined as “Spindle Cool” instead of
“Yellow”.
2) For Lambda 4S/5S series controller, C00 is the common of Y00, C01 the common of Y01, C02 the common
of Y02, C03 the common of Y03 and Y04, and C04 the common of Y05, Y06 and Y07.
