WEIHONG Lambda 5S Series User Manual

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
- 20 - Specialized, Concentrated, Focused
 XYA No Edge Config
Cycle Start
Cycle Stop
Pause
Manual Movement in +X
ESTOP
Manual Movement in -X
Manual Movement in +Y
Manual Movement in -Y
Manual Movement in +A
Manual Movement in -A
Oil Level Detection Alarm
Tool Bit Over-travel
X Axis REF. Point
+X Limit
-X Limit
Y Axis REF. Point
+Y Limit
-Y Limit
+A Limit
-A Limit
A Axis REF. Point
+24V Power
Active High/Low
To connect
PM85A/95A
To connect
X-axis driver
To connect
Y-axis driver
To connect
A-axis driver
To connect
MPG
Kerosene
Analog Enable
Lube Oil
Green
Red
Positioning Block
Suction
Common
Common
Common
Common
Common
Analog Output
Machine Unlocked
Blow

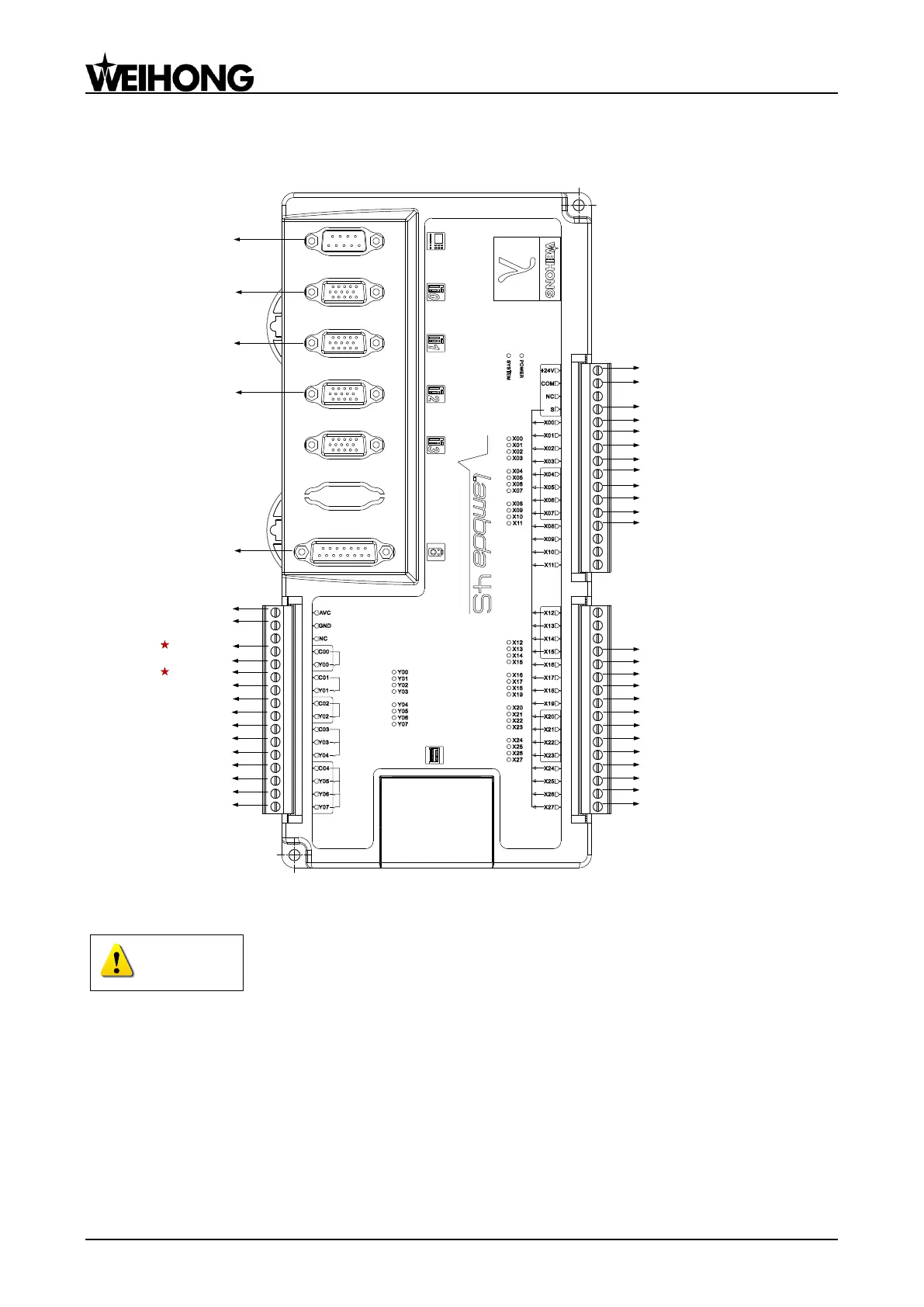

Fig. 2-11 Connection according to XYA no edge configuration
CAUTION
Extended terminal board EX27A is not required if XYA no edge configuration is selected.
