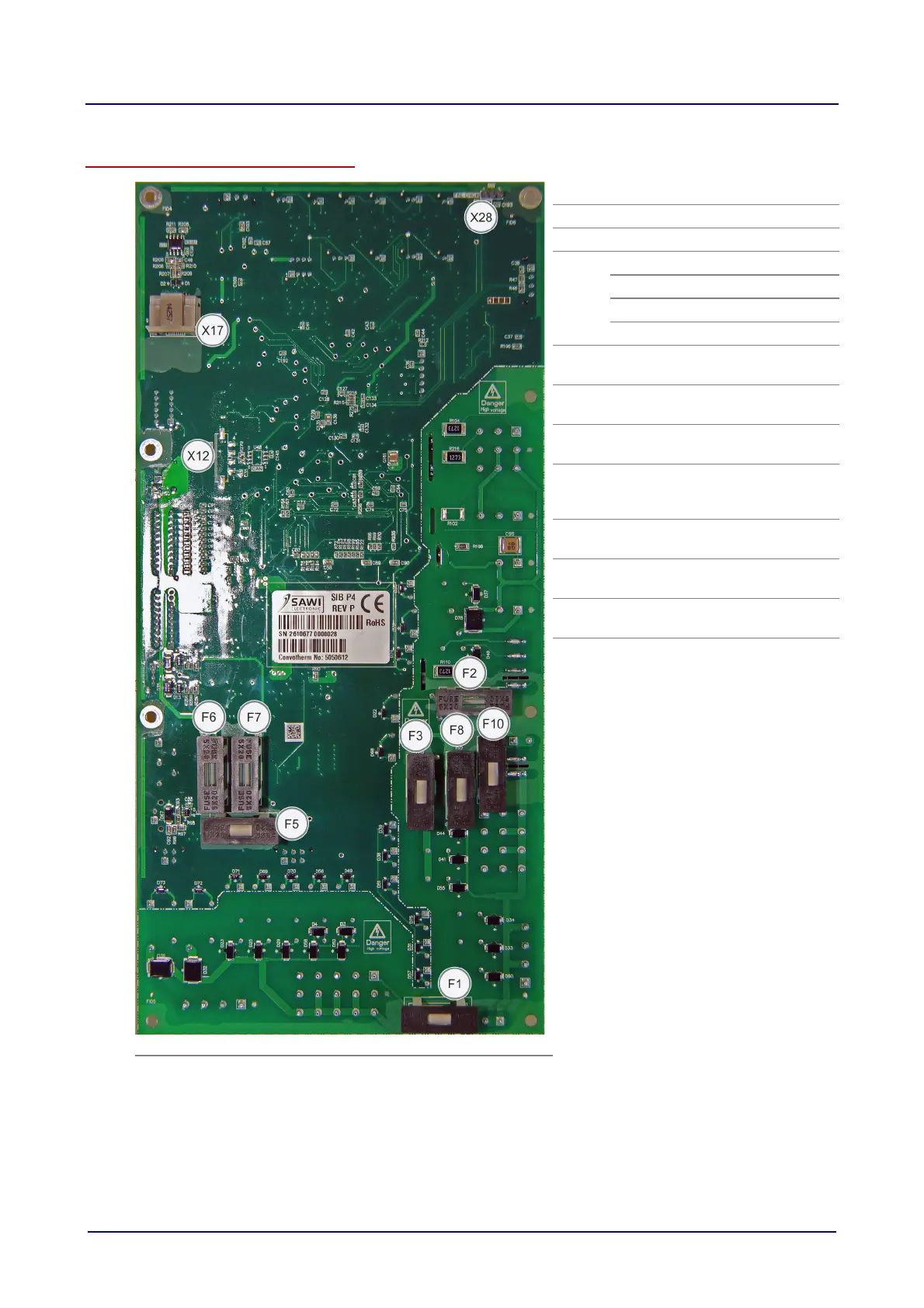

Layout and components of the rear side of the SI board
Item Name
X12
Test interface
X17
User interface
X28
Final check
1 Rx
2 Tx
3 SGND
F1 Fuse for drainage pump
CS chamber 2 A; 250 V
F2 Smoker fuse
3.15 A; 250 V
F3 Fuse for convection 2 burner unit
2 A; 250 V
F5 12 V DC fuse for supply to elec-
tronics
2 A
F6 Fuse for oven lamp 1
3.15 A; 12 V
F7 Fuse for oven lamp 2
3.15 A; 12 V
F8 Fuse for convection 1 burner unit
2 A; 250 V
F10 Fuse for boiler burner unit
2A; 250 V
